Engineered for Reliable Machinery Protection

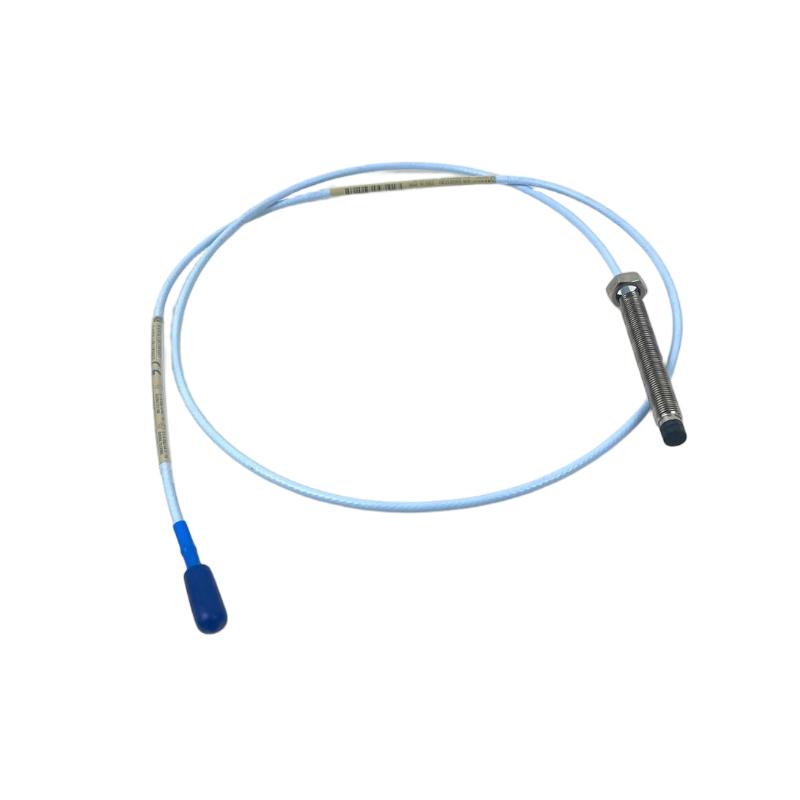

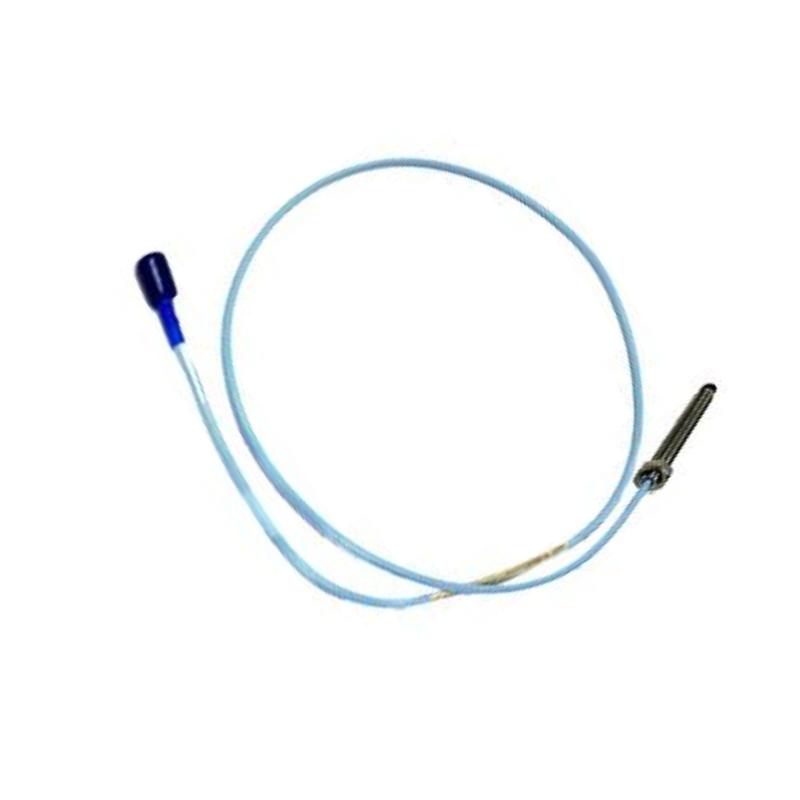

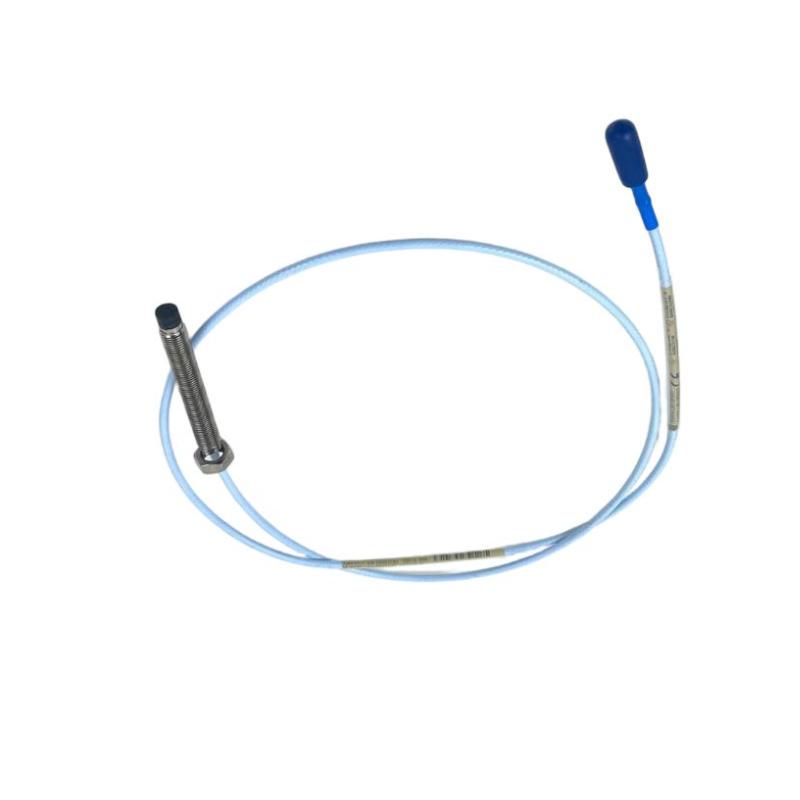

The Bently Nevada 330101-05-30-05-02-00 3300 XL 8 mm Proximity Probe is a precision non-contact eddy-current sensor developed for continuous vibration and shaft position monitoring in critical rotating equipment. As part of the industry-leading 3300 XL 8 mm Proximity Transducer System, it delivers outstanding measurement accuracy, excellent temperature stability, and dependable long-term performance for industrial machinery protection. It is commonly installed in predictive maintenance systems where early fault detection helps reduce downtime and maintenance costs.
This configuration features a 0.5 in. (12.7 mm) unthreaded length, 3.0 in. (76.2 mm) overall case length, a 0.5 m (1.6 ft) integrated standard cable, a Miniature ClickLoc™ coaxial connector, and Option 00 (no hazardous-area approvals). Its compact design makes it well suited for installations where mounting space is limited while maintaining the measurement performance expected from the 3300 XL series.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-05-30-05-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Technology | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.5 in. (12.7 mm) |
| Overall Case Length | 3.0 in. (76.2 mm) |
| Integrated Cable Length | 0.5 m (1.6 ft) |
| Cable Type | Standard FEP Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Agency Approval | Option 00 – No Agency Approval |
| Dimensions | Approx. Ø8 mm × 76.2 mm |
| Approximate Net Weight | 0.21 kg |
| Approximate Shipping Weight | 0.46 kg |
