Product Overview

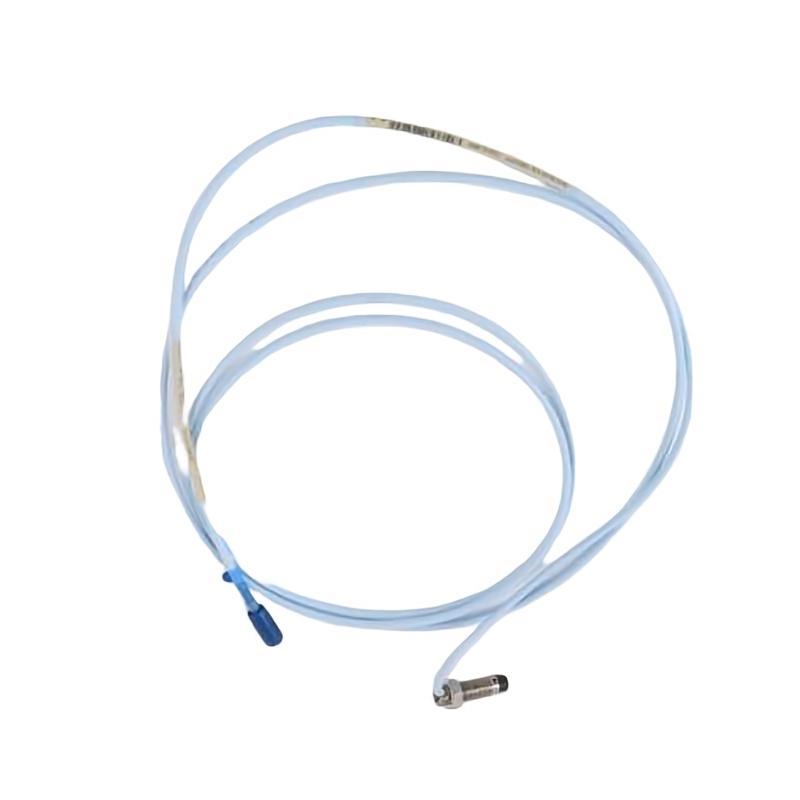

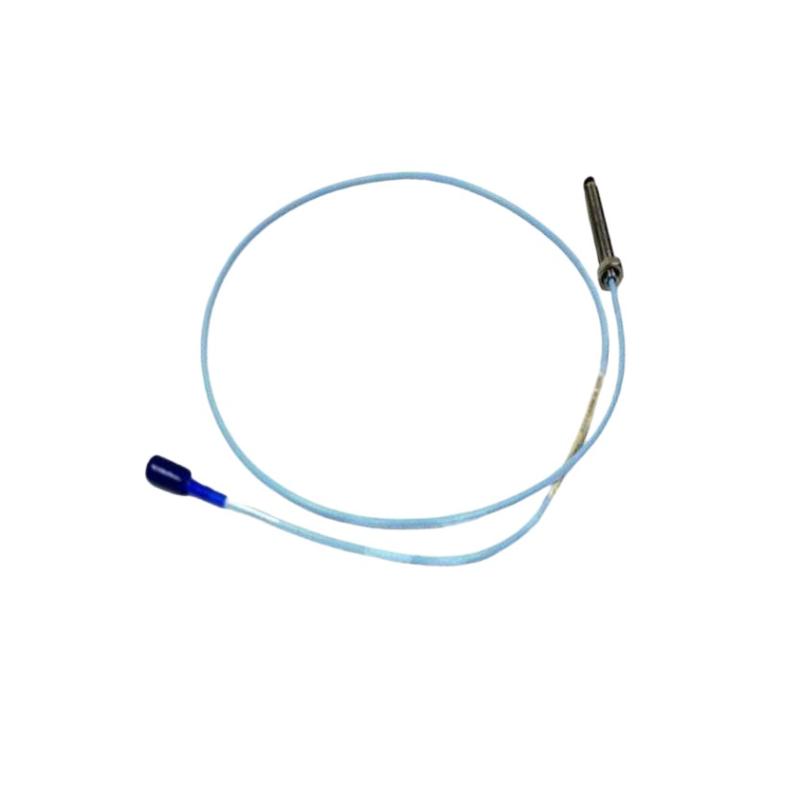

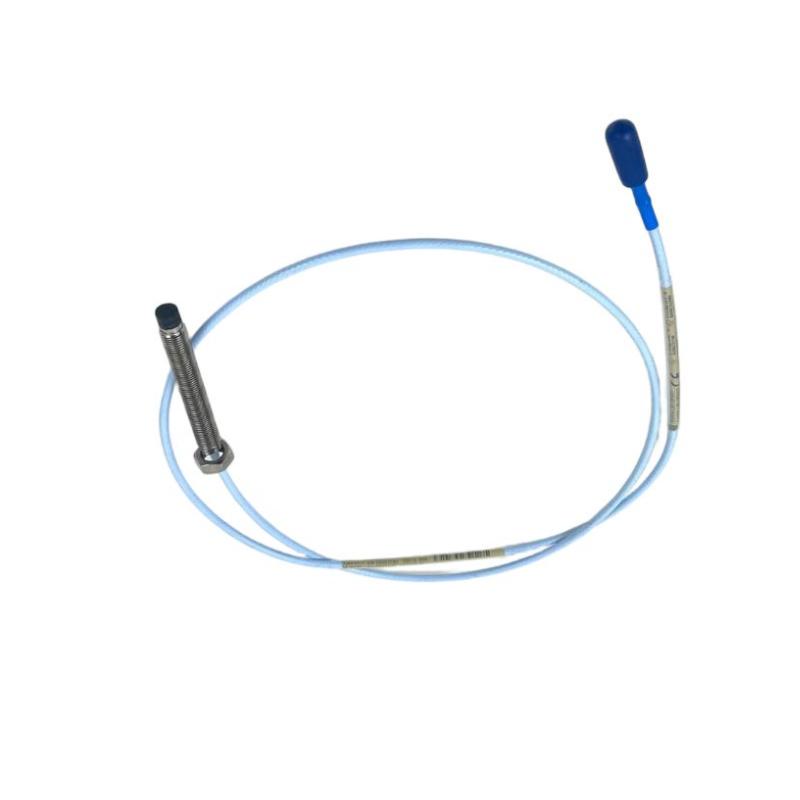

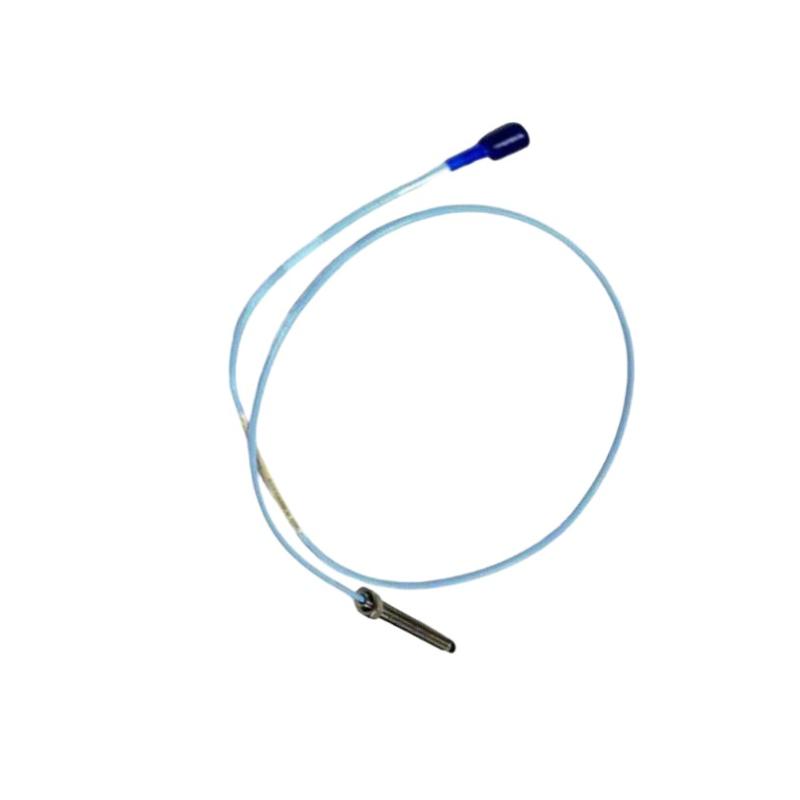

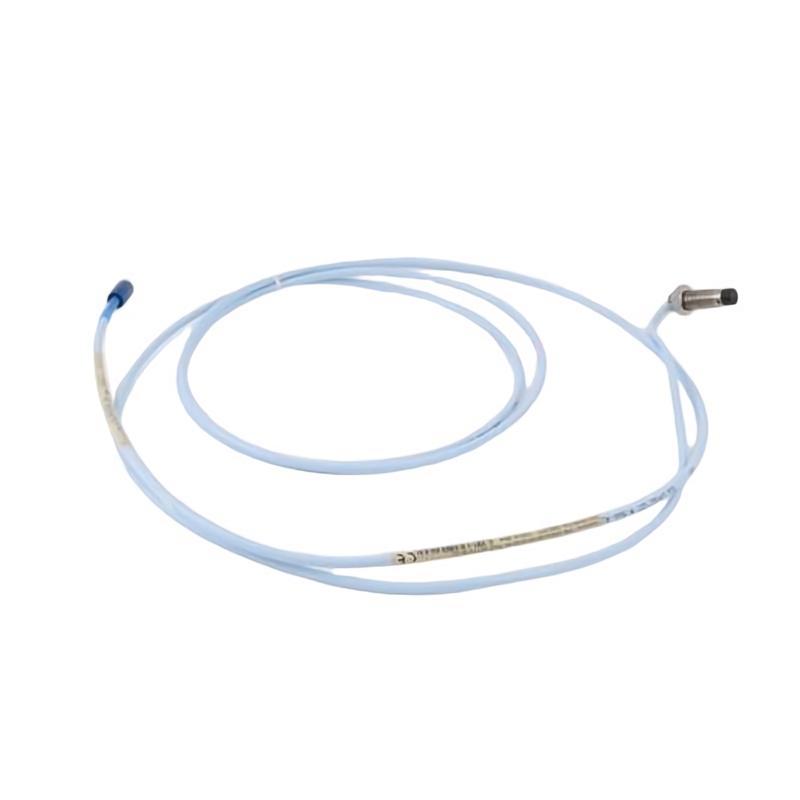

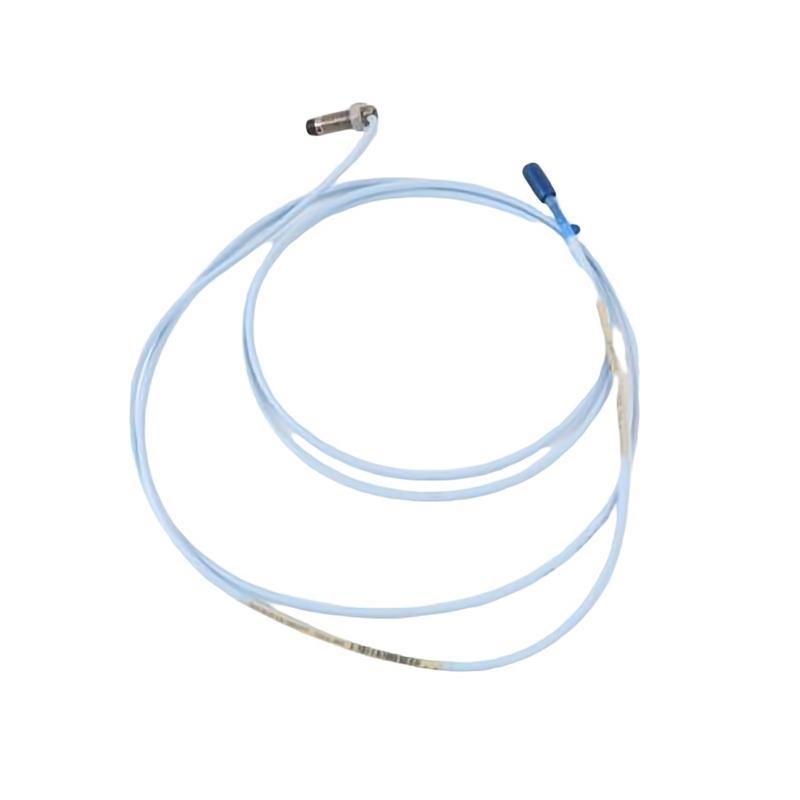

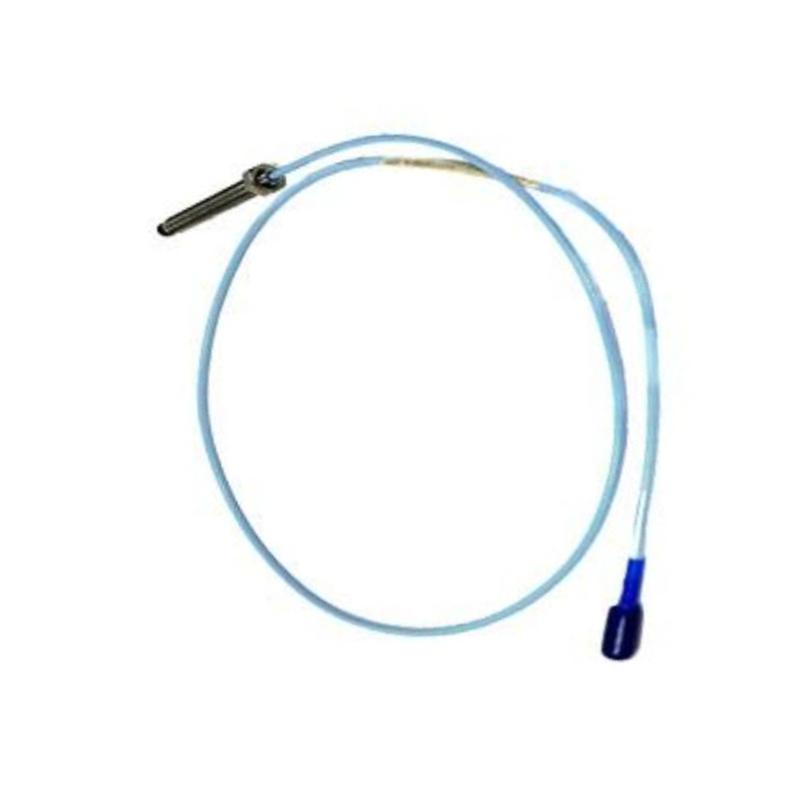

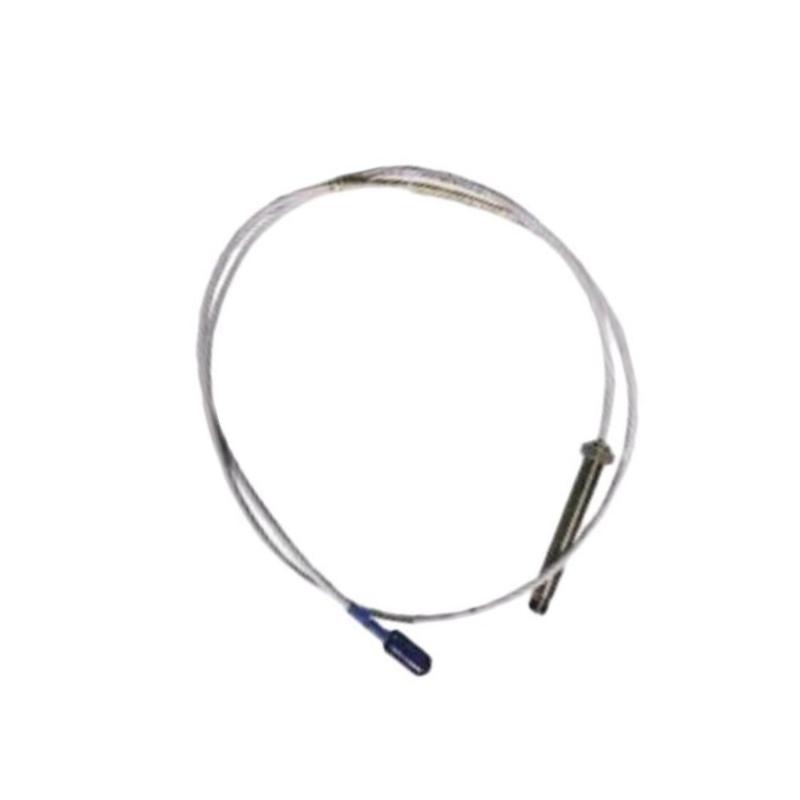

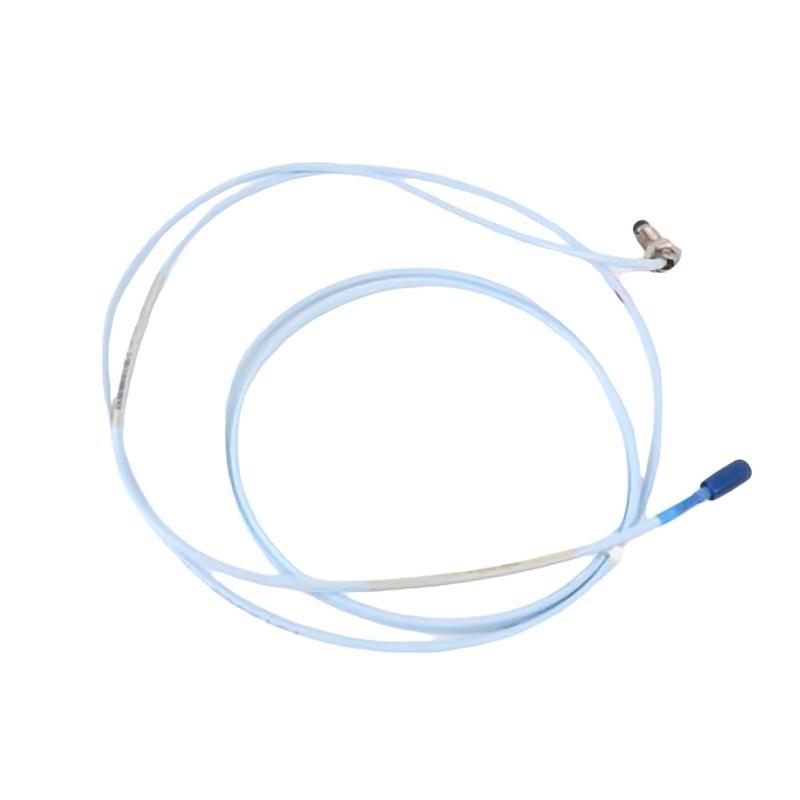

The Bently Nevada 330101-02-12-10-02-00 3300 XL 8 mm Proximity Probe is a precision eddy-current proximity probe developed for the 3300 XL 8 mm Proximity Transducer System. Designed for continuous machine protection and condition monitoring, it delivers highly accurate, non-contact measurement of shaft vibration and shaft position on critical rotating equipment.
This model features a 2.0 in. unthreaded length, a 1.2 in. (30.5 mm) overall probe case length, a 1.0 m (3.3 ft) integrated standard cable, and a Miniature ClickLoc™ coaxial connector. The Option 00 configuration indicates that no hazardous-area approvals are included, making it ideal for standard industrial installations. The probe is fully compatible with matching 3300 XL Proximitor Sensors and extension cables to create a complete transducer system.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-02-12-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Technology | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 2.0 in. (50.8 mm) |
| Overall Case Length | 1.2 in. (30.5 mm) |
| Integrated Cable Length | 1.0 m (3.3 ft) |
| Cable Type | Standard FEP Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Agency Approval | Option 00 – No Agency Approvals |
| Dimensions | Approx. Ø8 mm × 30.5 mm probe body |
| Approximate Net Weight | 0.19 kg |
| Approximate Shipping Weight | 0.45 kg |
Typical Applications
Designed for dependable long-term operation, the 330101-02-12-10-02-00 is widely used in industrial machinery protection systems where precise shaft motion monitoring is essential.
Typical applications include:
-
Steam and gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Power generators
-
Gearboxes
-
Process compressors
-
Fans and blowers
-
Petrochemical rotating equipment
-
Continuous vibration monitoring systems
Its compact design and integrated 1.0-meter cable simplify installation while providing consistent measurement performance in demanding operating environments.
Technical FAQs
1. What is the primary function of this proximity probe?
It provides accurate, non-contact measurement of shaft vibration and shaft position using eddy-current sensing technology.
2. Which monitoring system is it designed for?
It is designed specifically for the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
3. What is the unthreaded length of this model?
This configuration includes a 2.0-inch (50.8 mm) unthreaded section.
4. How long is the integrated cable?
The probe is supplied with a 1.0 m (3.3 ft) standard integrated cable.
5. Which connector does it use?
It features a Miniature ClickLoc™ coaxial connector for secure and reliable installation.
6. Does this model include hazardous-area certifications?
No. The Option 00 configuration indicates that hazardous-area approvals are not included.
7. What industries commonly use this probe?
It is widely used in power generation, oil and gas, petrochemical, manufacturing, and heavy industrial facilities.
8. Which system components work with this probe?
It is intended for use with compatible 3300 XL Extension Cables and 3300 XL Proximitor Sensors.
9. What parameters can it monitor?
The probe measures shaft vibration, shaft position, axial displacement, and other dynamic shaft movement parameters.
10. Is it suitable for continuous online condition monitoring?
Yes. It is engineered for permanent installation in machinery protection and predictive maintenance systems.
