Reliable Protection for Precision Machinery Monitoring

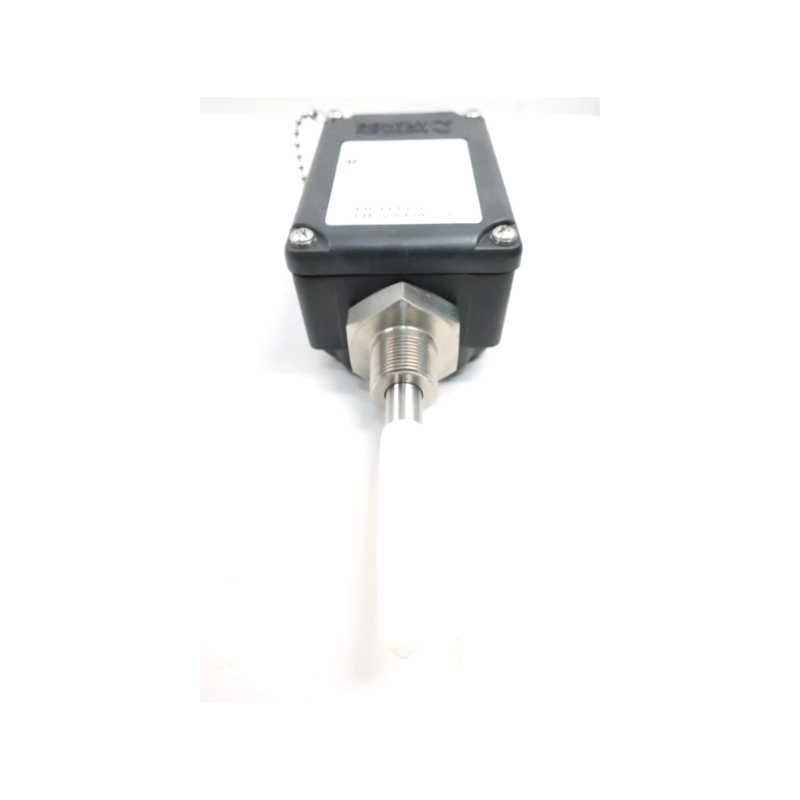

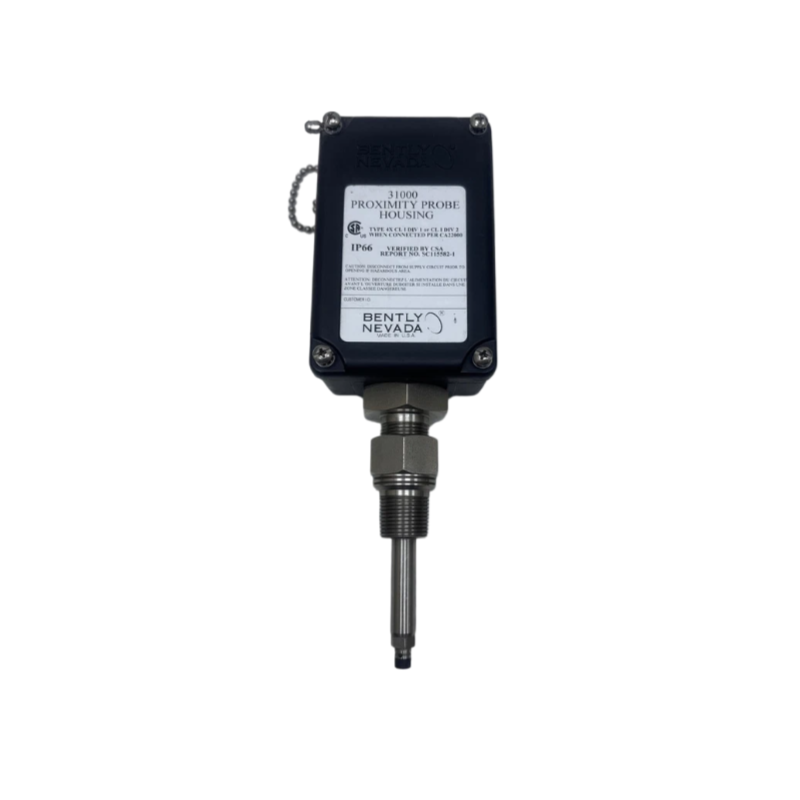

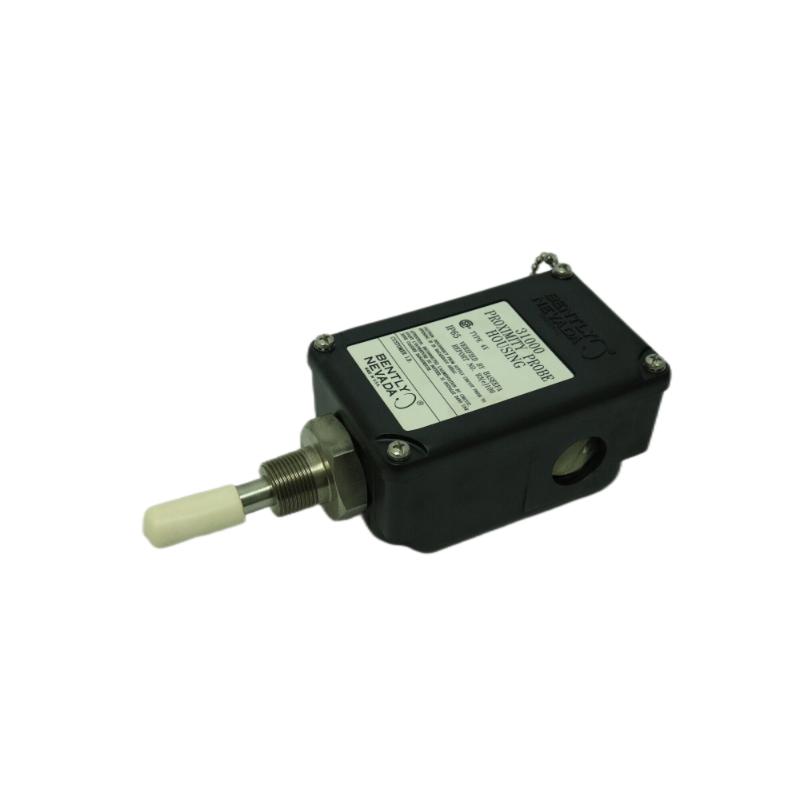

The Bently Nevada 31000-28-10-00-020-03-02 Proximity Probe Housing is designed to provide secure mounting and environmental protection for proximity probes used in rotating equipment condition monitoring systems. Engineered for long-term industrial reliability, this housing simplifies probe installation, adjustment, and maintenance while helping maintain accurate vibration and shaft position measurements.
This configuration includes a 3300 XL 8 mm proximity probe with multiple approvals, a 1.0 m probe cable, no standoff adapter, a 2.0 in (50.8 mm) probe penetration, one DIN PG11 fitting with two sealing plugs, and a 3/4-14 NPT mounting thread. Its rugged PPS thermoplastic housing combined with stainless steel components delivers dependable performance in demanding industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 31000-28-10-00-020-03-02 |
| Product Type | Proximity Probe Housing |
| Probe Type | 3300 XL 8 mm Proximity Probe (Multiple Approvals) |
| Probe Cable Length | 1.0 m (39 in) |
| Probe Penetration | 2.0 in (50.8 mm) |
| Standoff Adapter | None |
| Conduit Configuration | One DIN PG11 Fitting, Two Plugs |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Conductive Glass-Reinforced PPS Thermoplastic |
| Sleeve Material | AISI 304 Stainless Steel |
| Environmental Protection | NEMA 4X / IP66 |
| Operating Temperature | -51°C to +105°C |
| Recommended Tightening Torque | 29.4 N·m (260 in·lb) |
| Dimensions | Approx. 145 × 91 × 76 mm |
| Weight | Approx. 1.2 kg |
