Engineered for Reliable Machinery Protection

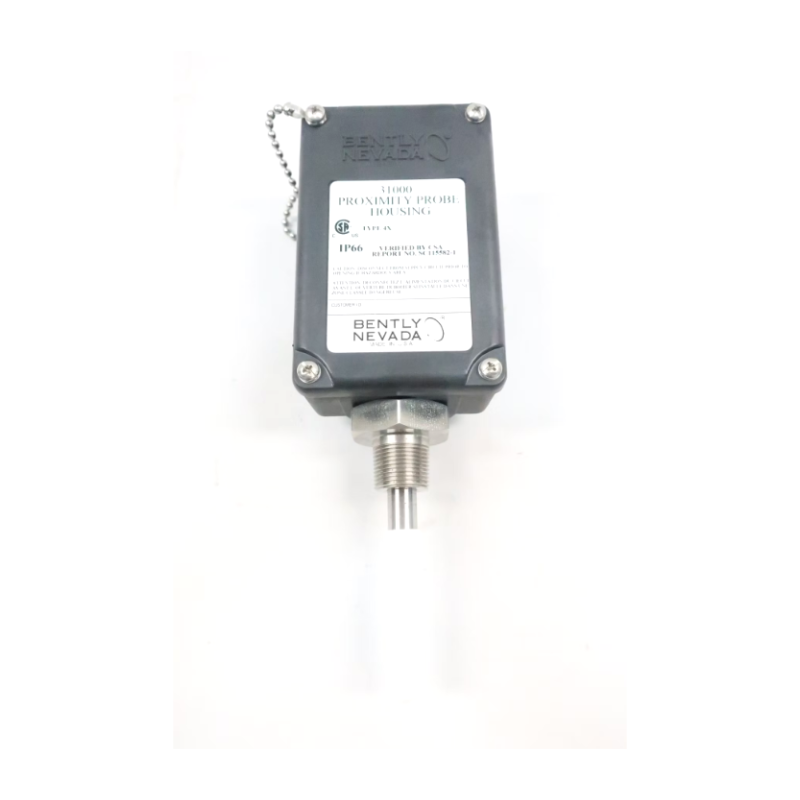

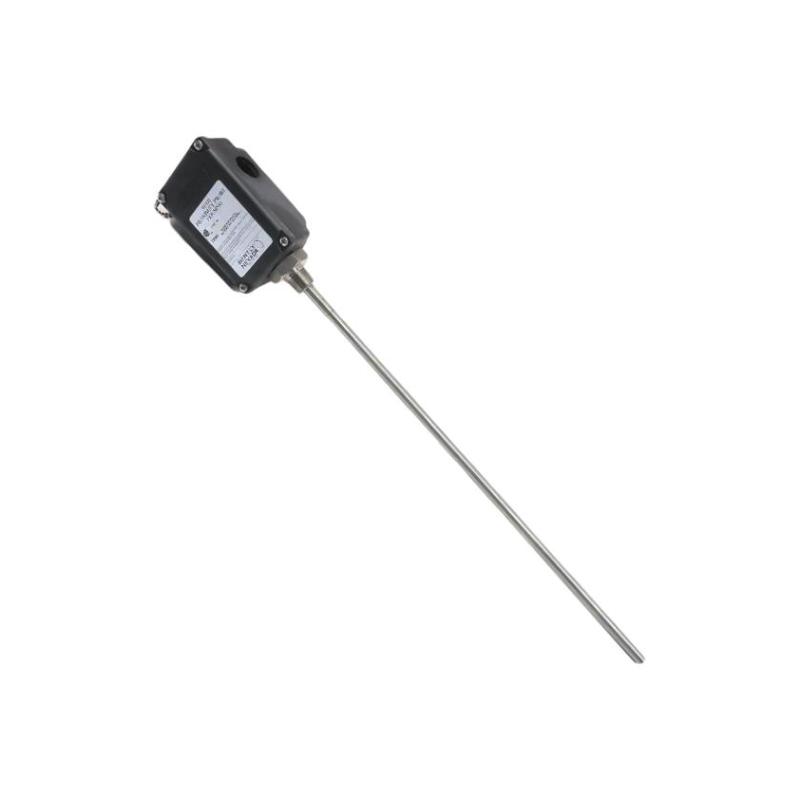

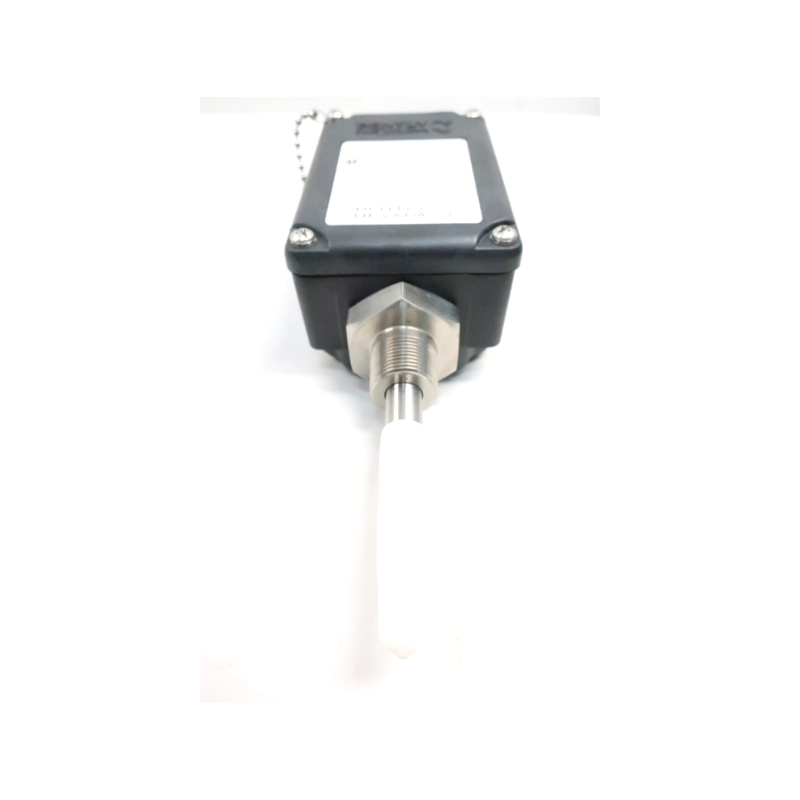

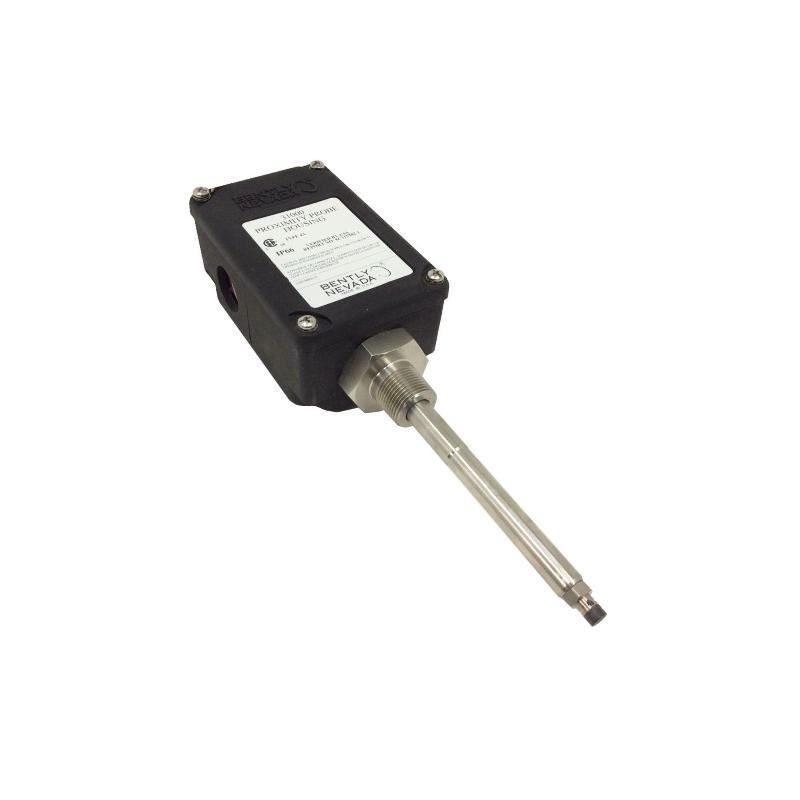

The Bently Nevada 31000-28-10-00-017-00-02 Proximity Probe Housing is a robust industrial enclosure designed to protect and support proximity probe installations in critical rotating machinery monitoring systems. Built for demanding industrial environments, this housing allows convenient access to the proximity probe and extension cable, enabling probe adjustment or replacement without disassembling the monitored equipment.
Configured with a 3300 XL 8 mm proximity probe, 1.0 m probe cable, 1.7 in (43.2 mm) probe penetration, no standoff adapter, no fittings, and a 3/4-14 NPT mounting thread, this model provides an efficient and dependable solution for vibration monitoring, shaft position measurement, and machinery condition monitoring applications. Its corrosion-resistant construction and reliable environmental sealing help ensure long-term performance in challenging operating conditions.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 31000-28-10-00-017-00-02 |
| Product Type | Proximity Probe Housing |
| Probe Configuration | 3300 XL 8 mm Probe |
| Probe Cable Length | 1.0 m (39 in) |
| Probe Penetration | 1.7 in (43.2 mm) |
| Standoff Adapter | None |
| Fittings | Without fittings |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Conductive Glass-Reinforced PPS Thermoplastic |
| Sleeve Material | AISI 304 Stainless Steel |
| Protection Rating | NEMA 4X / IP66 |
| Operating Temperature | -51°C to +105°C |
| Recommended Torque | 29.4 N·m (260 in·lb) |
| Dimensions | Approx. 144.8 × 91.4 × 76.2 mm |
| Weight | Approx. 1.2 kg |
