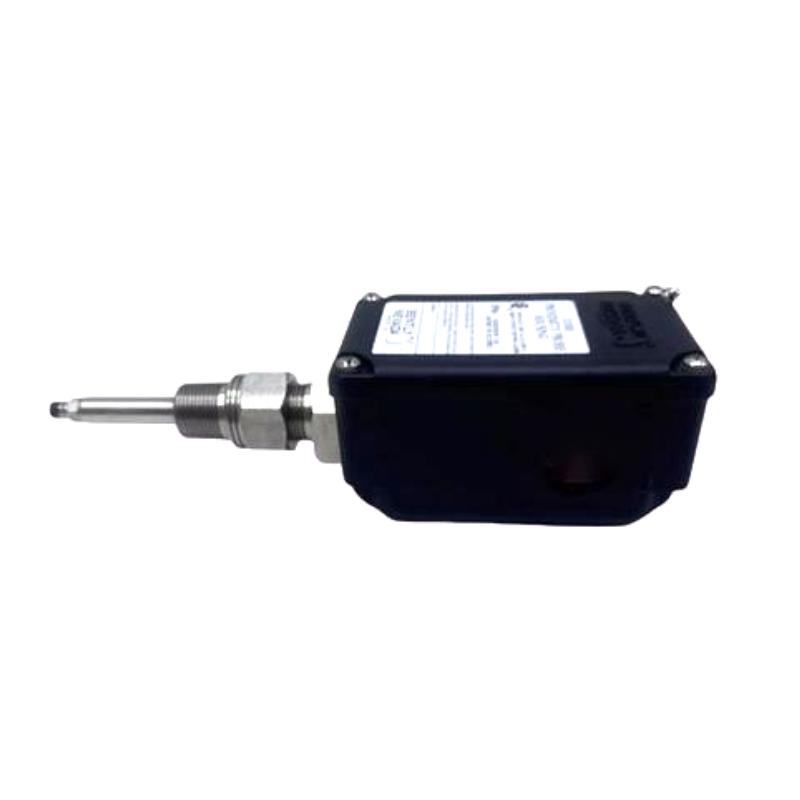

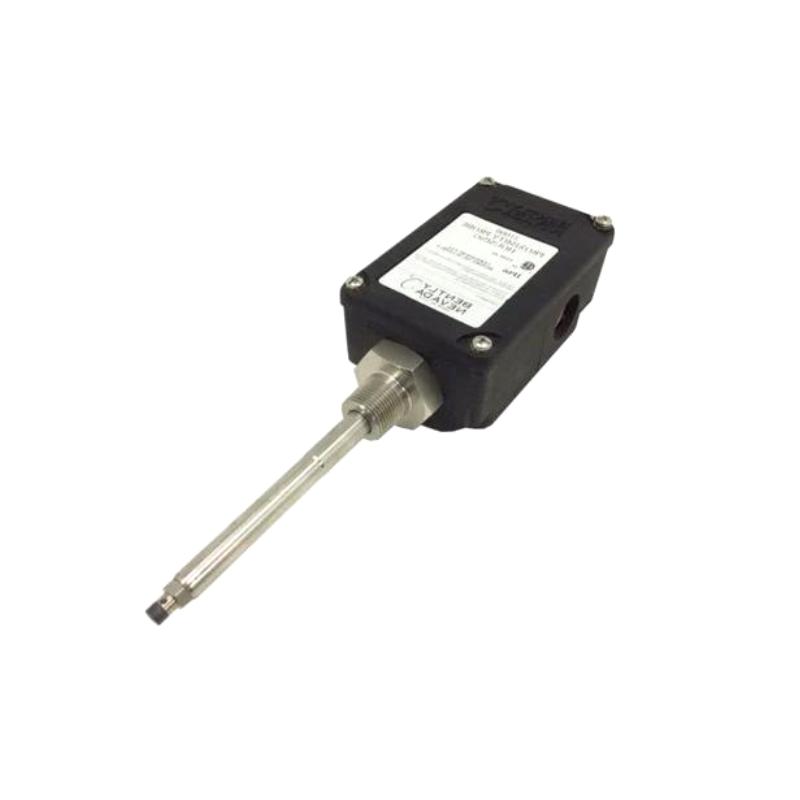

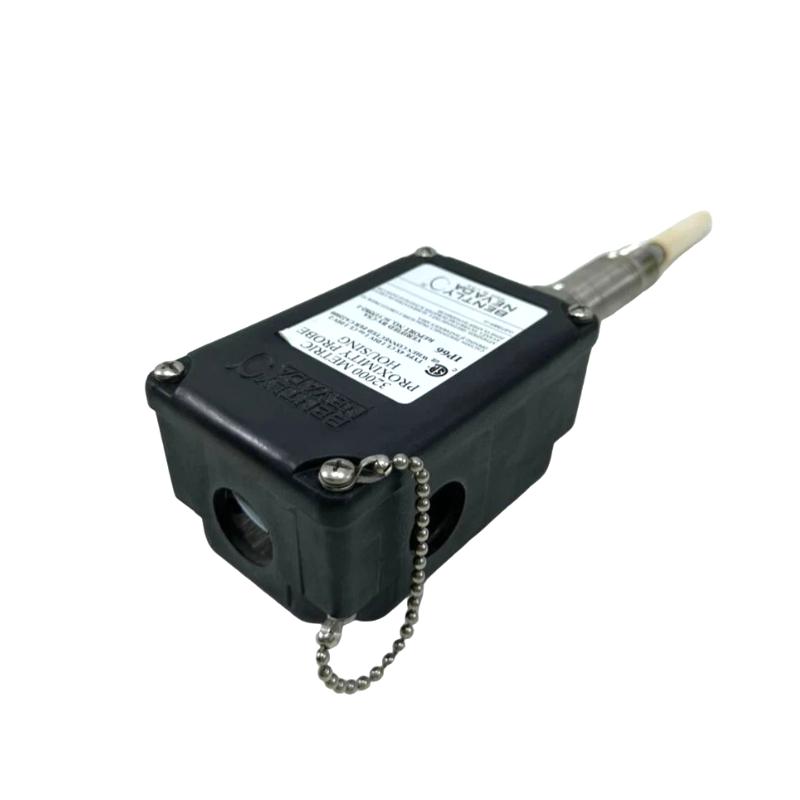

The Bently Nevada 32000-28-10-08-050-03-02 Proximity Probe Housing Assembly is a precision-engineered industrial mounting solution designed to provide stable alignment, environmental protection, and repeatable installation of proximity probes used in rotating machinery condition monitoring systems. As part of the 32000 Series housing platform, it ensures consistent shaft vibration and displacement measurement by maintaining a fixed probe-to-target relationship in continuous industrial operation.
This model is commonly used with Bently Nevada 3300 XL 8 mm proximity probe systems, enabling external access for probe adjustment, inspection, and replacement without dismantling machinery. The design follows API 670-aligned installation principles, supporting reliable performance in critical asset monitoring applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 32000-28-10-08-050-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 32000 |
| System Compatibility | 3300 XL 8 mm Proximity Probe Systems |
| Mounting Standard | 3/4-14 NPT industrial interface |
| Housing Material | Glass-reinforced PPS (Polyphenylene Sulfide) |
| Internal Components | Stainless steel probe sleeve & guide assembly |
| Probe Type | Eddy-current proximity probe support |
| Probe Cable Length | 1.0 m system configuration (typical for “10” option) |
| Probe Penetration Option | 50 mm configuration (compact installation depth) |
| Cable Entry | Sealed conduit / gland interface |
| Environmental Design | Industrial-duty sealed housing for harsh environments |
| Approximate Weight | ~1.2–2.0 kg |
