High-Reliability Metric Housing for Stable Industrial Proximity Measurement

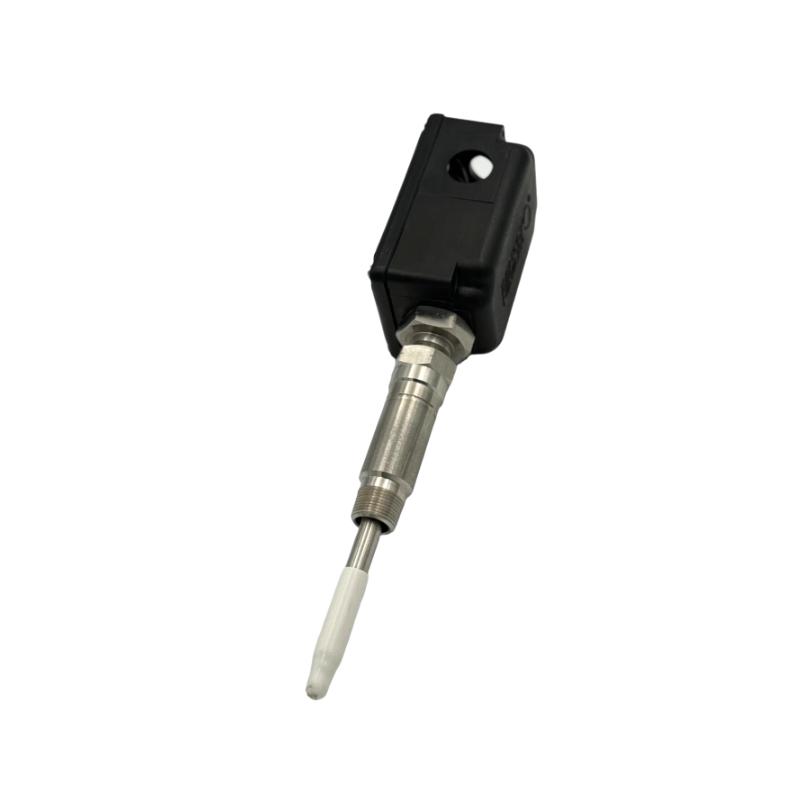

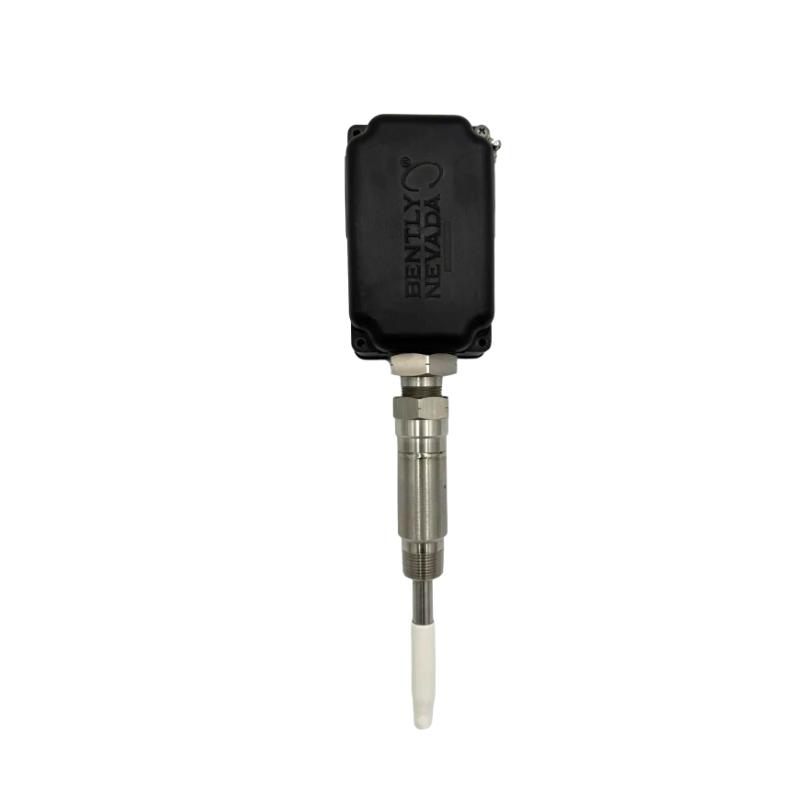

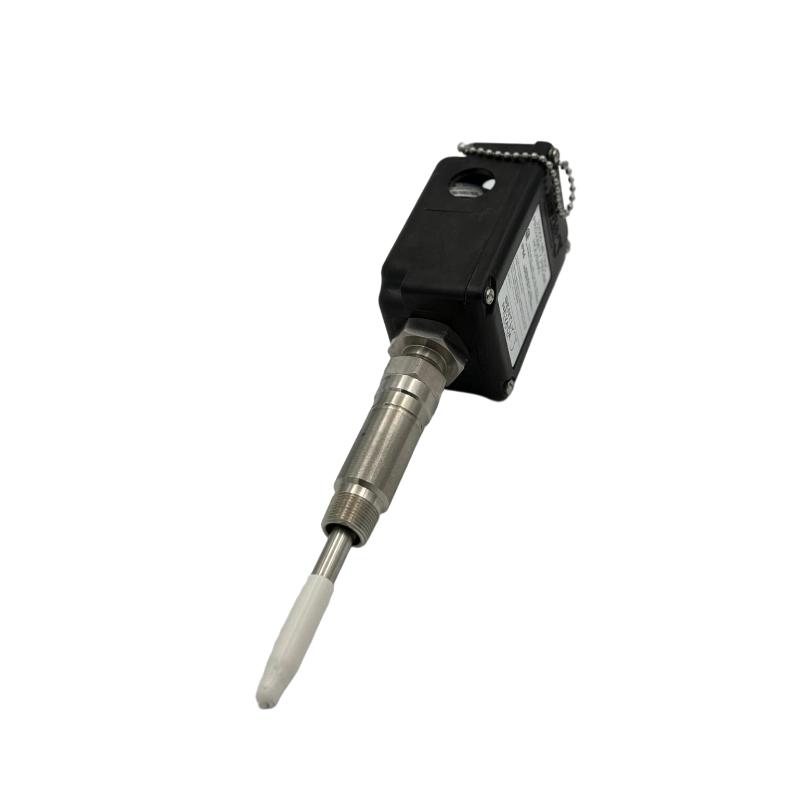

The Bently Nevada 32000-28-05-05-065-03-02 Proximity Probe Housing Assembly is a precision-machined external mounting solution designed to ensure stable alignment, mechanical protection, and consistent positioning of proximity probes used in rotating machinery condition monitoring systems. As part of the 32000 Series housing platform, it supports accurate shaft vibration and displacement measurement in continuous industrial operation environments.
This configuration is engineered for 3300 XL 8 mm proximity probe systems and follows API 670-aligned installation practices, allowing external access for probe adjustment, inspection, and replacement without requiring machine disassembly. The design improves maintenance efficiency while maintaining long-term measurement stability in critical rotating equipment applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 32000-28-05-05-065-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 32000 |
| System Compatibility | 3300 XL 8 mm Proximity Probe Systems |
| Mounting Standard | 3/4-14 NPT (industrial interface) |
| Housing Material | Glass-reinforced PPS (Polyphenylene Sulfide) |
| Internal Components | Stainless steel guide sleeve and hardware |
| Probe Type | Eddy-current proximity probe support |
| Probe Cable Length | 0.5 m or 1.0 m system configuration (variant dependent) |
| Probe Penetration Option | 65 mm configuration (approx. 2.56 in) |
| Standoff Adapter | Industrial standard extension module |
| Cable Entry | Sealed conduit / gland interface |
| Environmental Design | Industrial-duty sealed enclosure |
| Approximate Weight | ~1.5–2.2 kg |
