Industrial Precision Housing for Stable Proximity Probe Installation and Measurement Reliability

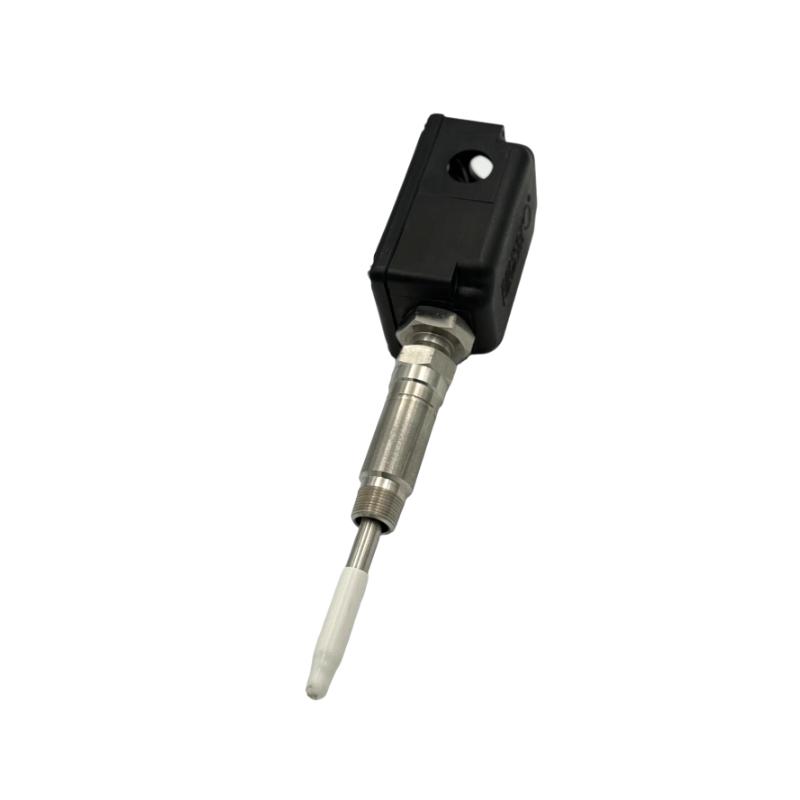

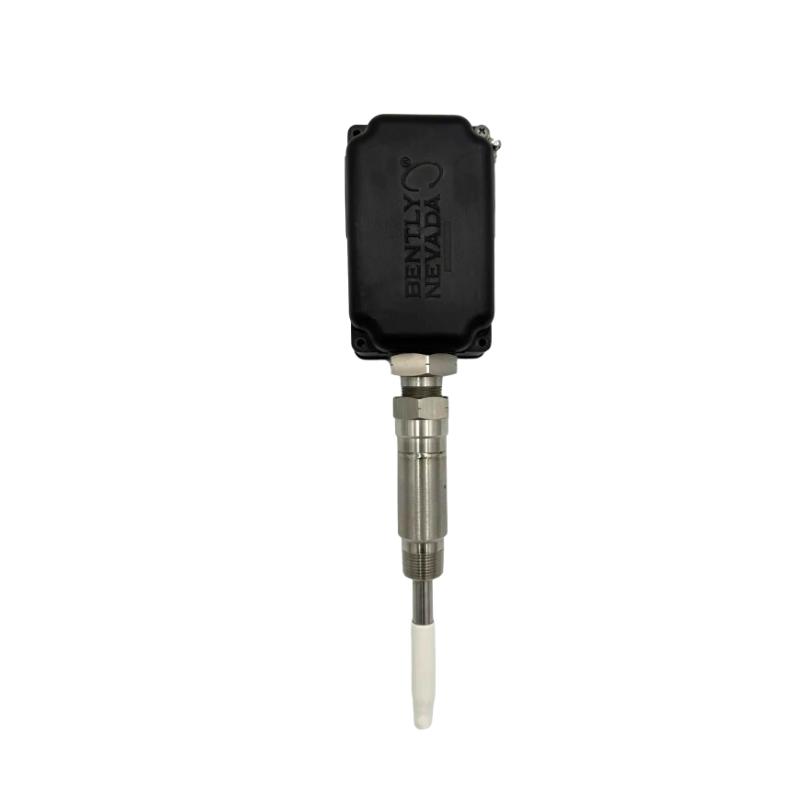

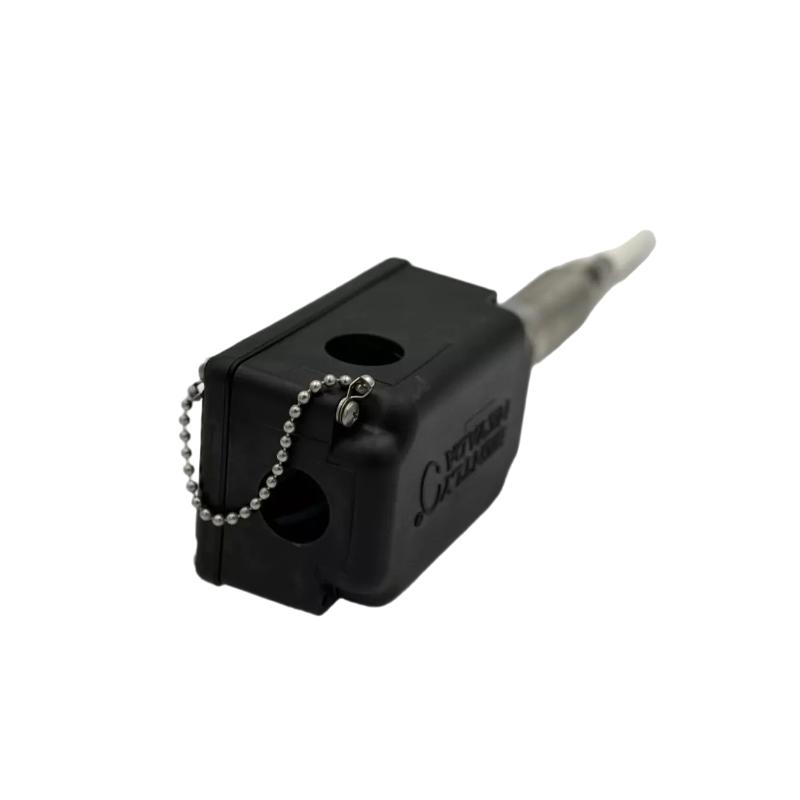

The Bently Nevada 32000-28-05-04-085-03-02 Proximity Probe Housing Assembly is a high-reliability mechanical mounting solution designed for precise alignment and protection of proximity probes used in rotating machinery condition monitoring systems. As part of the 32000 Series housing platform, it supports stable vibration and shaft displacement measurement by maintaining a consistent probe-to-target relationship in demanding industrial environments.
This configuration is commonly used with Bently Nevada 3300 XL 8 mm proximity probe systems, providing external access for probe adjustment, inspection, and replacement without requiring machine disassembly. The design follows API 670-aligned installation principles, ensuring consistent performance in critical machinery applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 32000-28-05-04-085-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 32000 |
| System Compatibility | 3300 XL 8 mm Proximity Probe Systems |
| Mounting Standard | 3/4-14 NPT (industrial interface) |
| Housing Material | Glass-reinforced PPS (Polyphenylene Sulfide) |
| Internal Components | Stainless steel probe sleeve & hardware |
| Probe Type | Eddy-current proximity probe support |
| Probe Cable Length | 0.5 m or 1.0 m system configuration (variant dependent) |
| Probe Penetration Option | 85 mm configuration (approx. 3.35 in) |
| Standoff Adapter | Industrial standard adjustable extension |
| Cable Entry | Sealed conduit / gland interface |
| Environmental Design | Industrial-duty sealed enclosure |
| Approximate Weight | ~1.5–2.2 kg |
