Industrial-Grade Metric Housing for Stable Proximity Measurement Performance

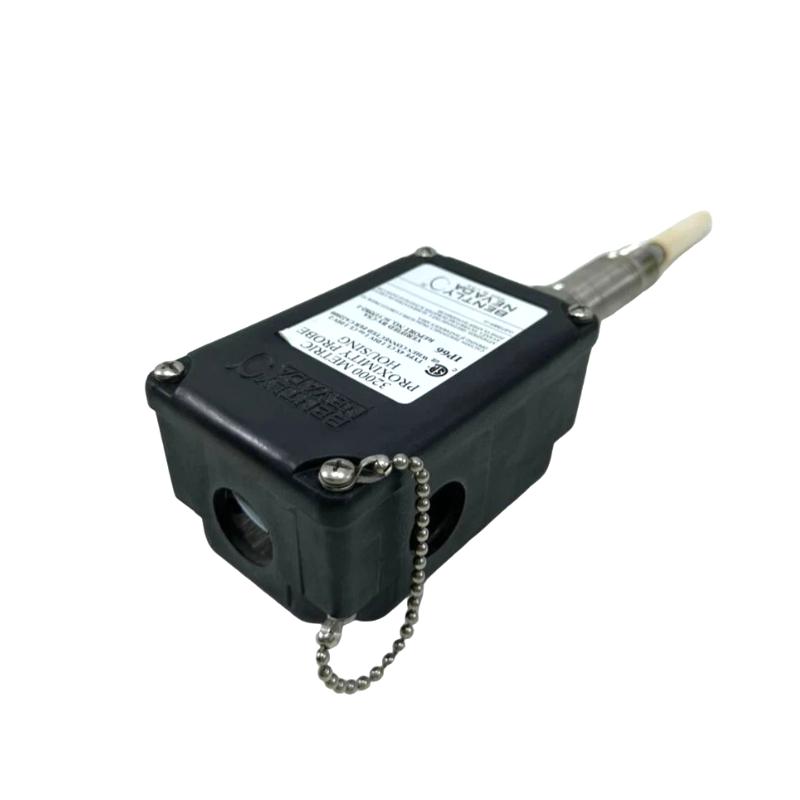

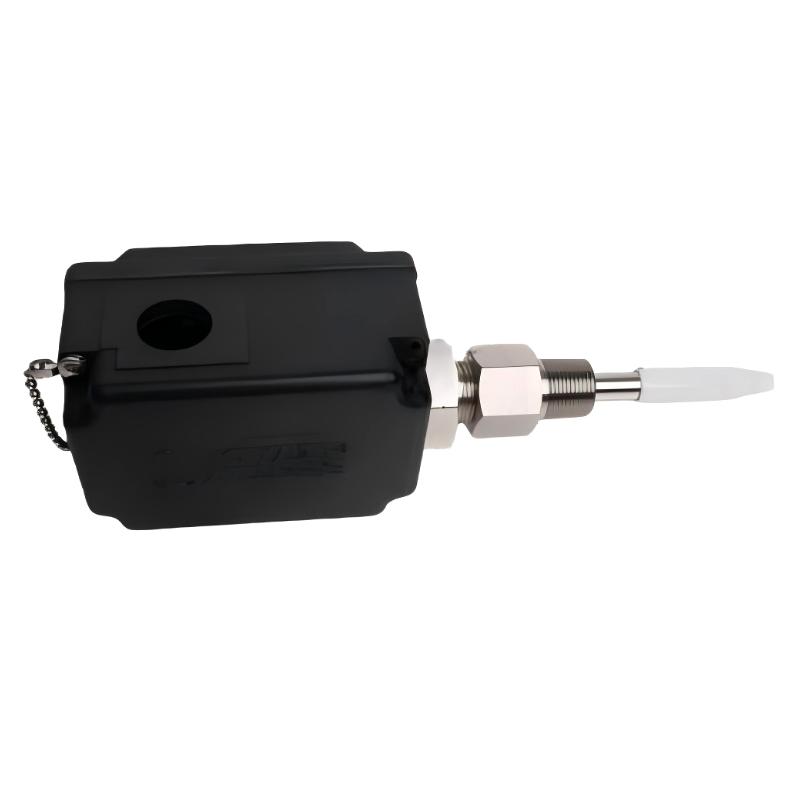

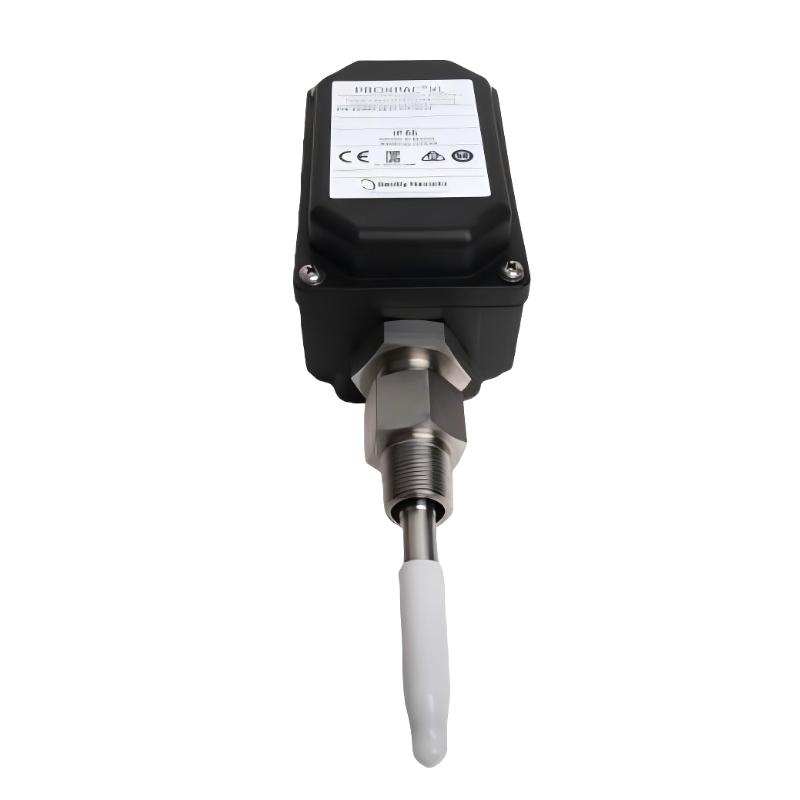

The Bently Nevada 32000-28-05-00-100-03-02 Proximity Probe Housing Assembly is a precision-engineered external mounting solution designed to ensure accurate alignment, environmental protection, and stable installation of proximity probes in rotating machinery condition monitoring systems. As part of the 32000 Series housing platform, it is widely used for radial vibration and shaft position measurement applications in industrial equipment.
This configuration includes a 3300 XL 8 mm proximity probe, integrated cable system, and sealed conduit fittings, enabling external access for probe adjustment and replacement without requiring machine disassembly. It is designed in compliance with API 670 recommendations for external proximity probe housings, ensuring reliable performance in critical industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 32000-28-05-00-100-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 32000 |
| System Compatibility | 3300 XL 8 mm Proximity Probe Systems |
| Mounting Standard | 3/4-14 NPT (Imperial interface compatible) |
| Housing Material | Glass-reinforced PPS (Polyphenylene Sulfide) |
| Internal Components | Stainless steel guide sleeve and fittings |
| Probe Type | 3300 XL 8 mm Eddy-current proximity probe (pre-installed) |
| Cable Length | 0.5 m integral cable configuration |
| Probe Penetration | 100 mm configuration option |
| Fittings | M20 conduit fitting, plugs, cable sealing grip (configuration dependent) |
| Environmental Design | Industrial-duty sealed housing |
| Approximate Weight | ~1.2–2.0 kg |
