Precision Engineered Housing for Stable and Reliable Proximity Measurement

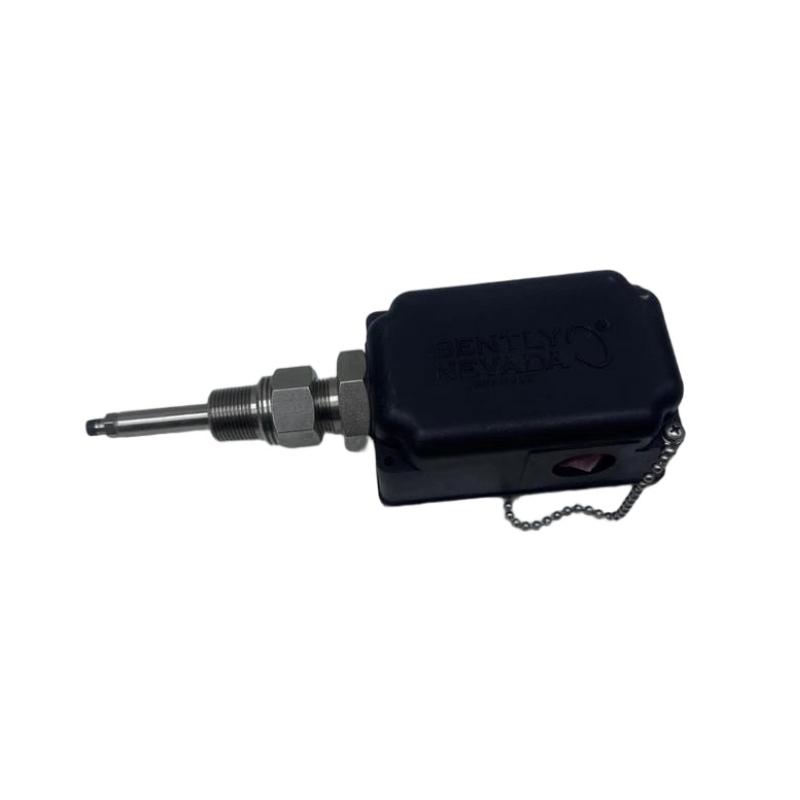

The Bently Nevada 31000-29-05-15-033-03-02 Imperial Proximity Probe Housing Assembly is a high-reliability mechanical enclosure designed to ensure accurate alignment, stable installation, and long-term protection of proximity probes used in rotating machinery monitoring systems. As part of the 31000 Series housing platform, it provides a controlled mounting structure that helps maintain consistent vibration and shaft displacement measurements in continuous industrial operations.

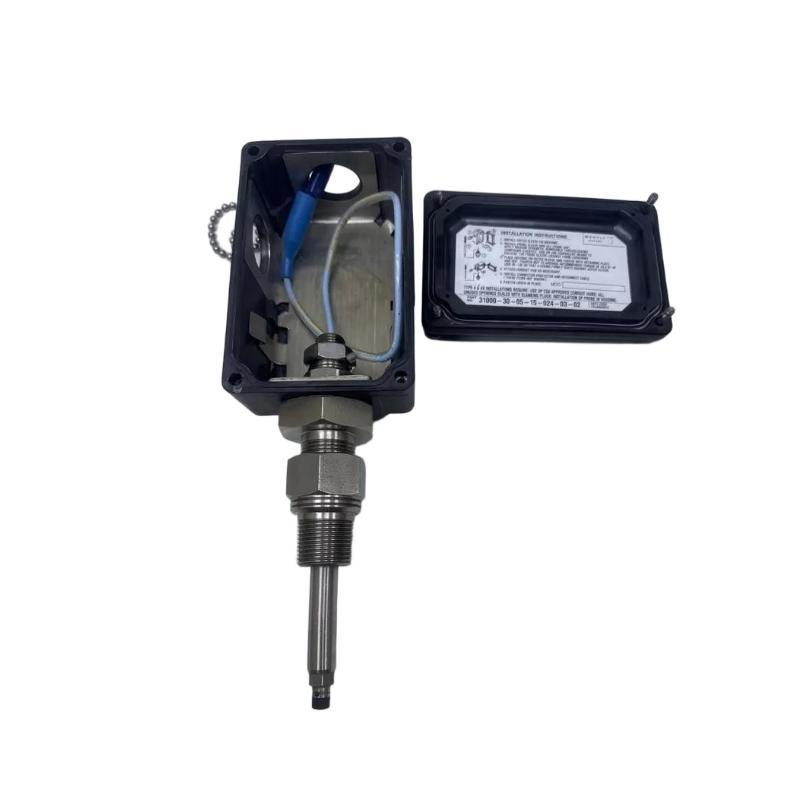

This model follows the 31000 imperial configuration standard (3/4-14 NPT interface) and is typically used with Bently Nevada 3300 XL 8 mm proximity probe systems. The housing enables external access for probe adjustment, inspection, and replacement, allowing maintenance to be performed without dismantling the machine casing, which improves operational efficiency and reduces downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 31000-29-05-15-033-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 31000 |
| System Compatibility | 3300 XL 8 mm Proximity Probe Systems |
| Mounting Standard | 3/4-14 NPT (Imperial) |
| Housing Material | Glass-reinforced PPS (Polyphenylene Sulfide) |
| Internal Components | Stainless steel guide sleeve & hardware |
| Probe Configuration | 3300 XL 8 mm proximity probe compatible |
| Probe Cable Length | 0.5 m or 1.0 m system-dependent configuration |
| Probe Penetration Option | 3.3 in (approx. 83.8 mm, “033” configuration) |
| Standoff Adapter | 1.5 in (approx. 38 mm) |
| Fittings | NPT plugs, reducer, cable seal grip (configuration dependent) |
| Environmental Design | Industrial-duty enclosure for harsh environments |
| Approximate Weight | ~1.5 kg |
