Precision Mechanical Housing for Stable Proximity Probe Performance

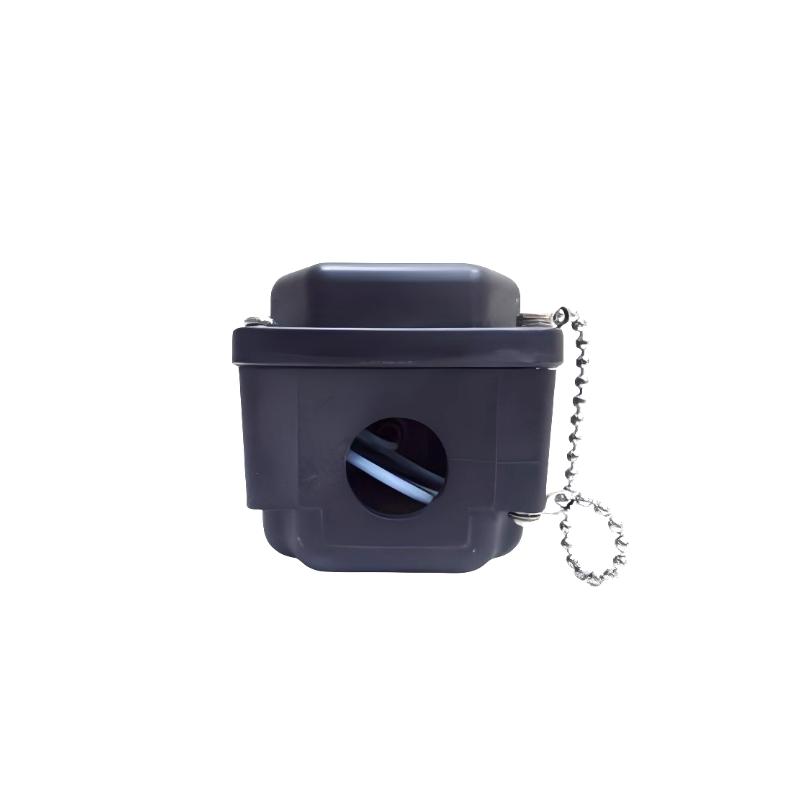

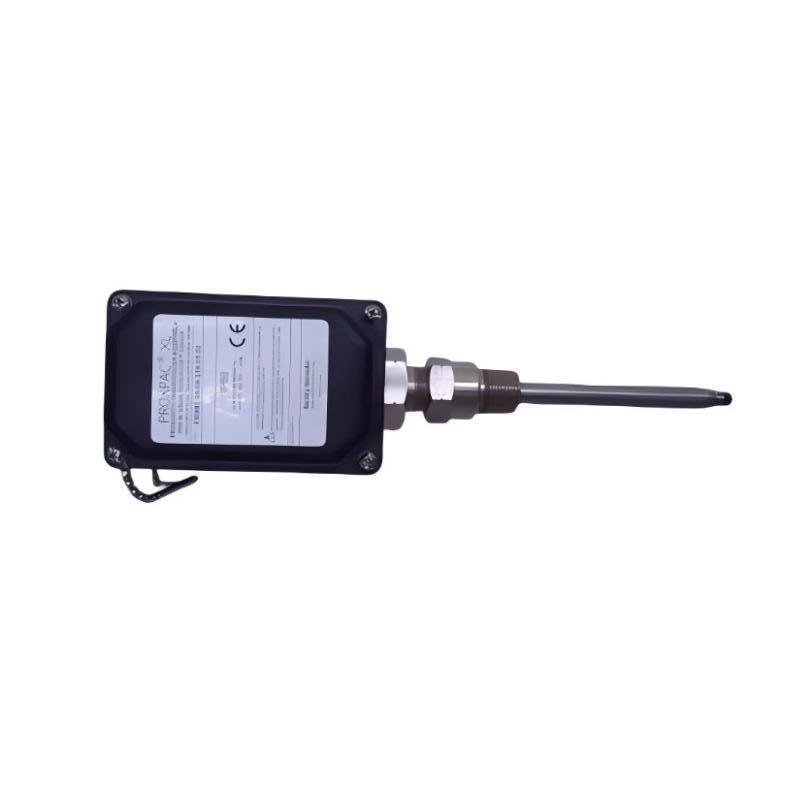

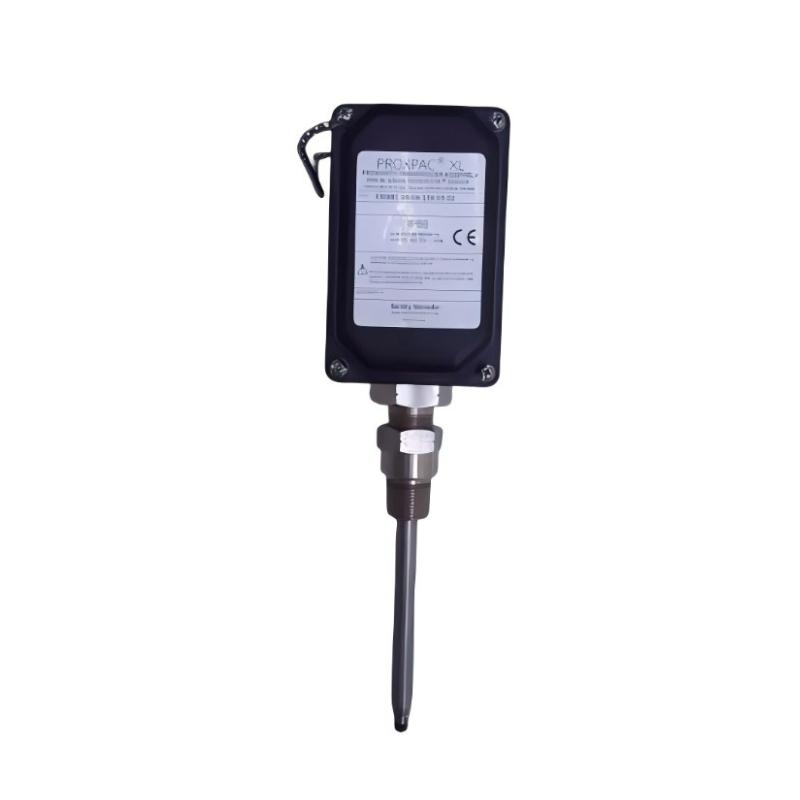

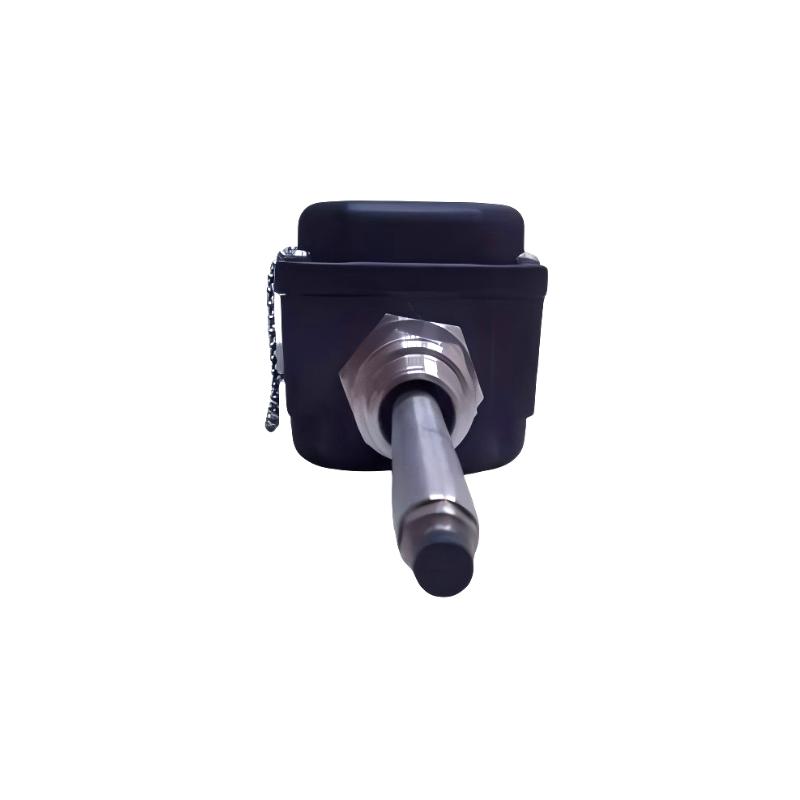

The Bently Nevada 31000-16-10-15-041-03-02 Imperial Proximity Probe Housing Assembly is a rugged, high-precision mounting system designed to ensure accurate alignment and protection of proximity probes used in rotating machinery condition monitoring. As part of the 31000 Series housing family, it provides stable probe positioning through the machine casing while supporting reliable measurement of shaft vibration and displacement in continuous industrial operation.
This model is designed for imperial 3/4-14 NPT mounting standards and is commonly paired with Bently Nevada 3300 XL 8 mm proximity probe systems, enabling external access for installation, adjustment, and maintenance without dismantling equipment. The housing is built from high-strength thermoplastic and stainless steel components to ensure long service life in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 31000-16-10-15-041-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 31000 |
| System Compatibility | 3300 XL 8 mm Proximity Probe Systems |
| Mounting Standard | 3/4-14 NPT (Imperial) |
| Housing Material | Glass-reinforced PPS thermoplastic |
| Internal Components | Stainless steel probe sleeve & hardware |
| Cable Length | 1.0 m (standard configuration) |
| Standoff Adapter | 1.5 in (approx. 38 mm) |
| Probe Penetration Length | 4.1 in (approx. 104 mm) |
| Fittings | NPT plug(s), reducer, and cable sealing grip (configuration dependent) |
| Operating Temperature | -51°C to +105°C |
| Environmental Protection | Industrial-duty enclosure for harsh environments |
| Approximate Weight | ~1.2 kg |
