Industrial-Grade External Mounting Solution for Accurate Vibration Monitoring

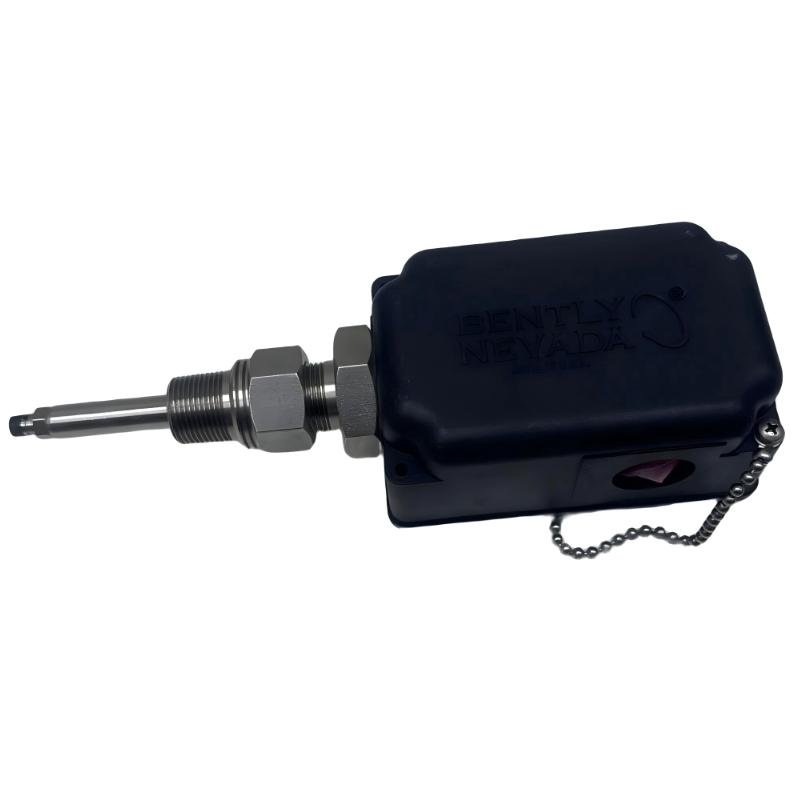

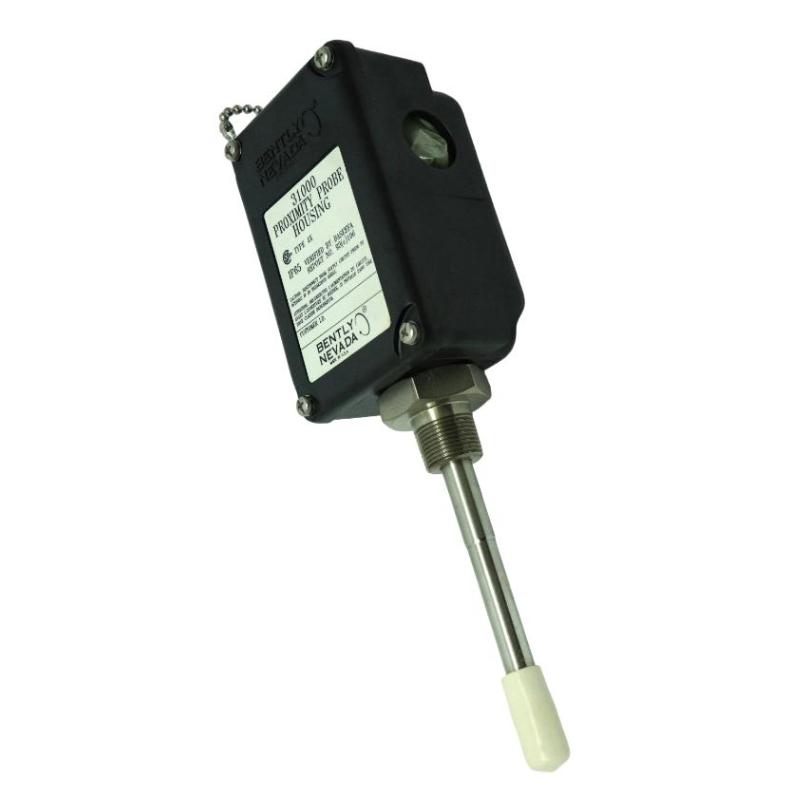

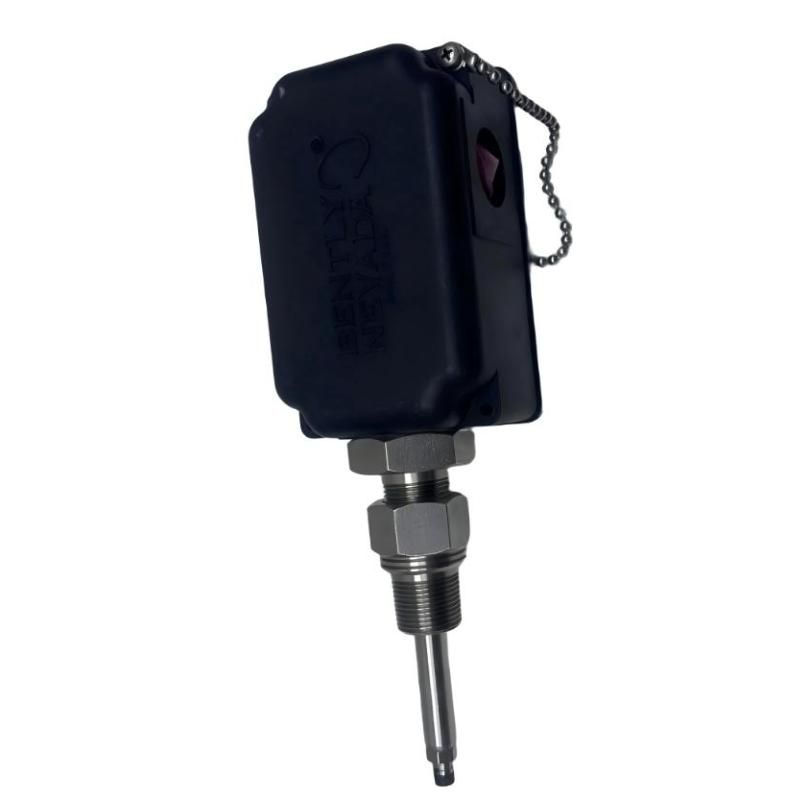

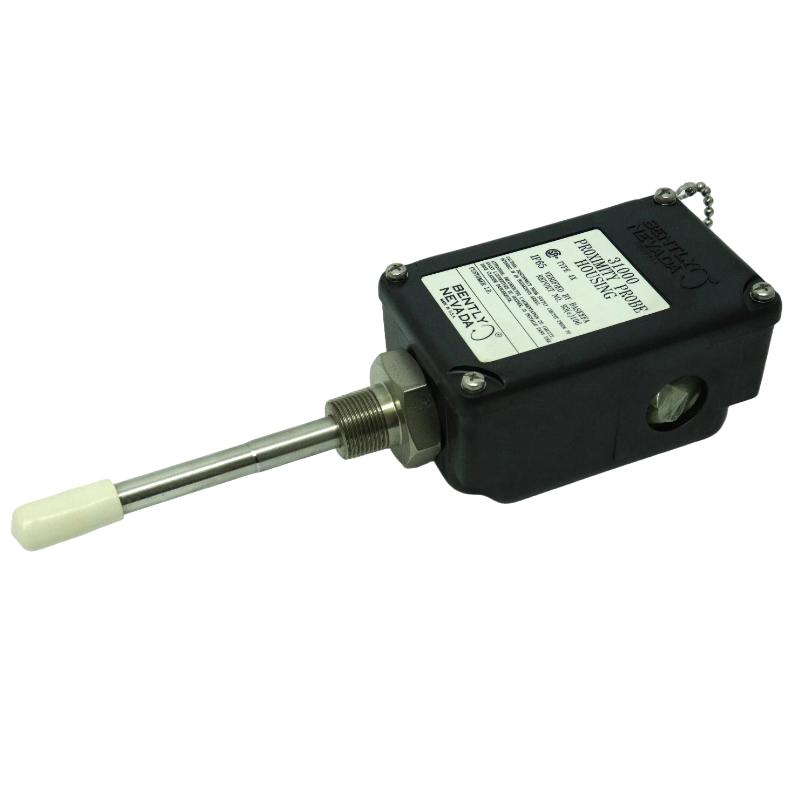

The Bently Nevada 31000-16-10-00-206-00-02 Proximity Probe Housing Assembly is a precision-engineered mechanical enclosure designed to provide secure mounting, alignment stability, and environmental protection for proximity probes used in rotating machinery condition monitoring systems. As part of the 31000 Series probe housing platform, it enables consistent probe positioning through the machine casing while supporting reliable shaft vibration and displacement measurements.
This configuration is commonly used with 3300 XL 8 mm proximity probe systems, allowing external access for installation, adjustment, and maintenance without requiring machine disassembly. The design helps ensure long-term measurement stability in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 31000-16-10-00-206-00-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 31000 |
| System Compatibility | 3300 XL 8 mm Proximity Probe Systems |
| Application | Shaft vibration & position monitoring |
| Housing Material | Glass-reinforced PPS (Polyphenylene Sulfide) |
| Internal Components | Stainless steel guide sleeve & hardware |
| Mounting Standard | 3/4-14 NPT industrial interface |
| Cable Entry | Sealed conduit / industrial gland interface |
| Probe Access | External adjustment & replacement design |
| Environmental Design | Industrial-duty mechanical protection enclosure |
| Approximate Configuration Length | 206 mm (model-specific penetration option) |
| Approximate Weight | 1.8–2.3 kg |
