Reliable External Mounting System for Industrial Proximity Probes

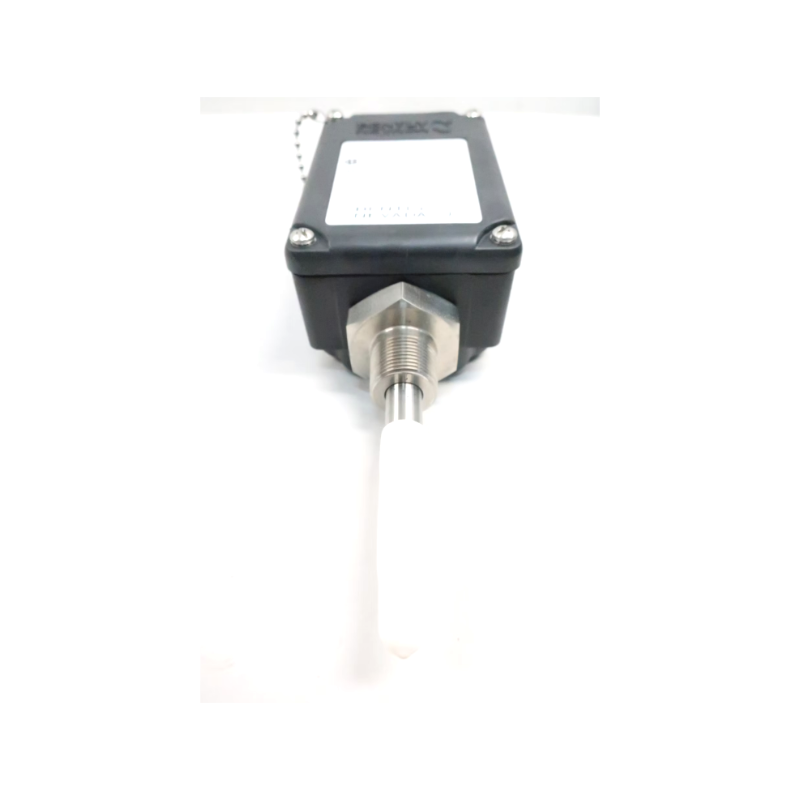

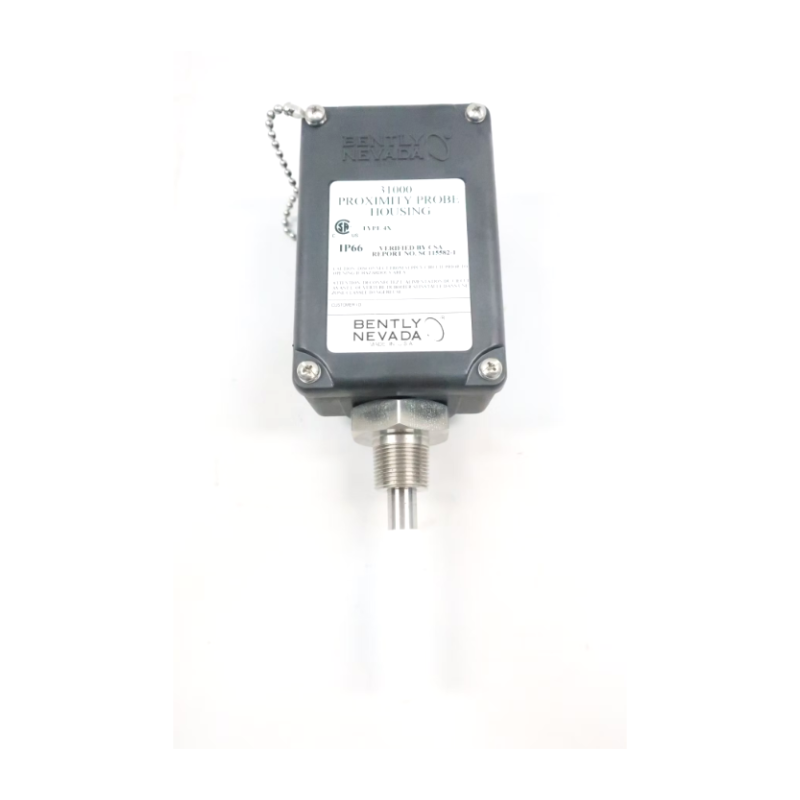

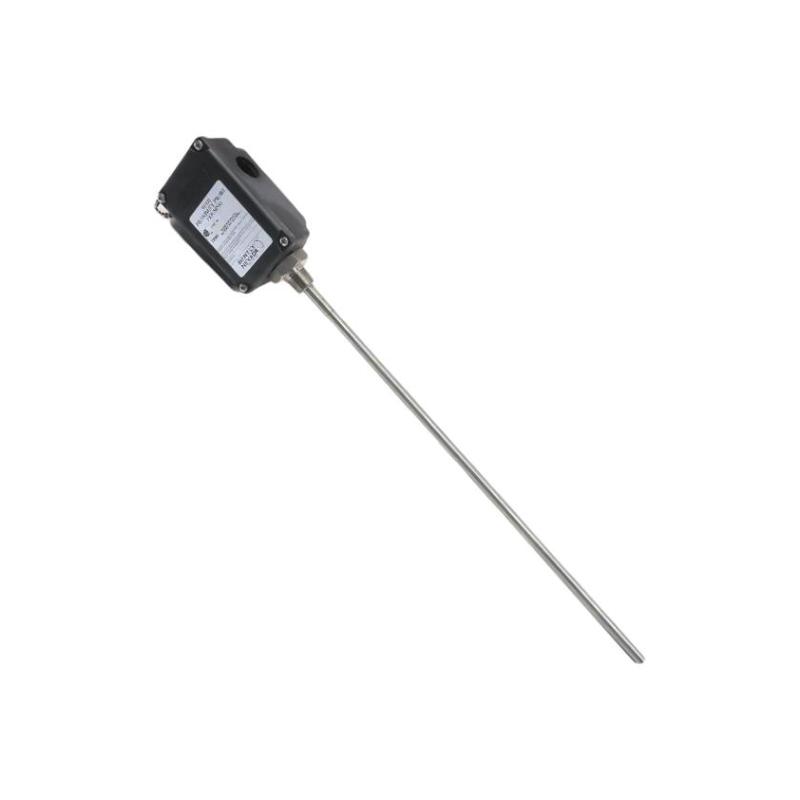

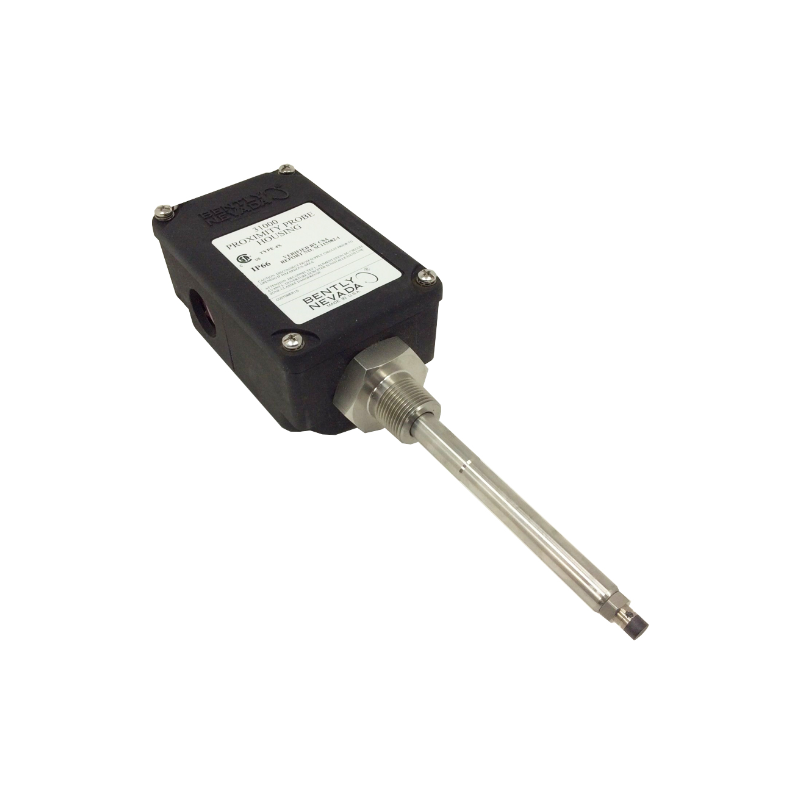

The Bently Nevada 31000-16-10-00-202-00-02 Imperial Proximity Probe Housing Assembly is a precision-engineered mechanical enclosure designed to support accurate and stable installation of proximity probes used in rotating machinery condition monitoring systems. As part of the 31000 Series probe housing platform, it provides mechanical protection, alignment stability, and controlled probe positioning for long-term vibration and shaft displacement measurement.
Designed for imperial mounting configurations, this housing assembly enables external access to the probe and cable system, allowing easier adjustment and maintenance without dismantling the machine casing. It is widely used in critical industrial environments where consistent measurement accuracy and installation reliability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 31000-16-10-00-202-00-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 31000 |
| System Compatibility | 3300 XL 8 mm Proximity Probe Systems |
| Probe Type | 3300 XL 8 mm Eddy Current Proximity Probe (integrated system support) |
| Housing Material | Polyphenylene Sulfide (PPS) + stainless steel components |
| Sleeve Material | Stainless steel guide sleeve |
| Mounting Standard | Imperial (3/4-14 NPT interface) |
| Cable Entry | Industrial sealed conduit interface |
| Probe Access | External adjustment and replacement capability |
| Environmental Design | Industrial-duty enclosure for harsh operating conditions |
| Approximate Probe Penetration | 202 mm configuration |
| Approximate Weight | ~1.8–2.2 kg |
