Optimized for Accurate Shaft Vibration and Position Measurement

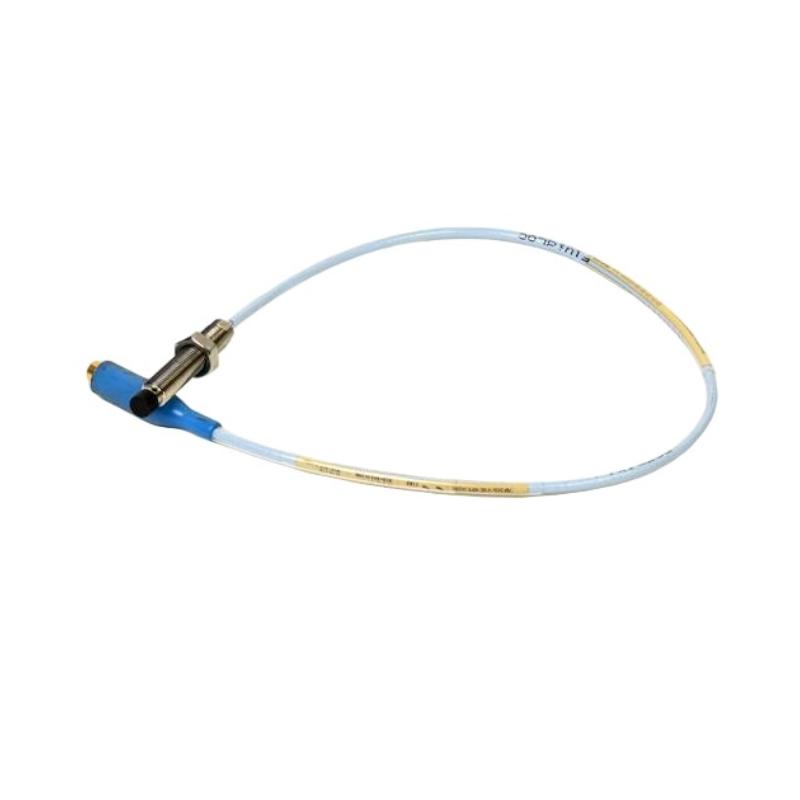

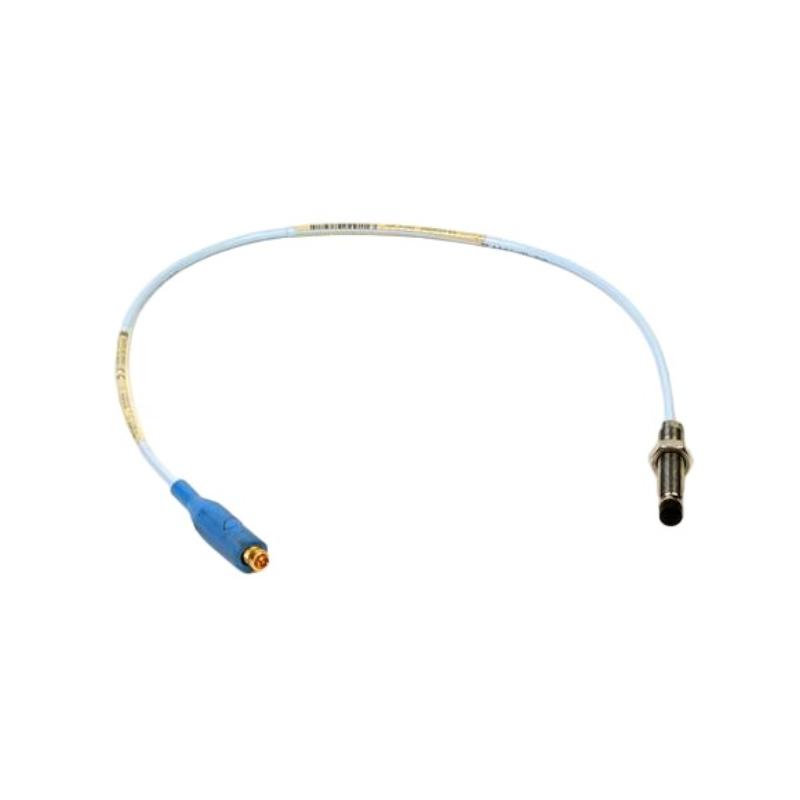

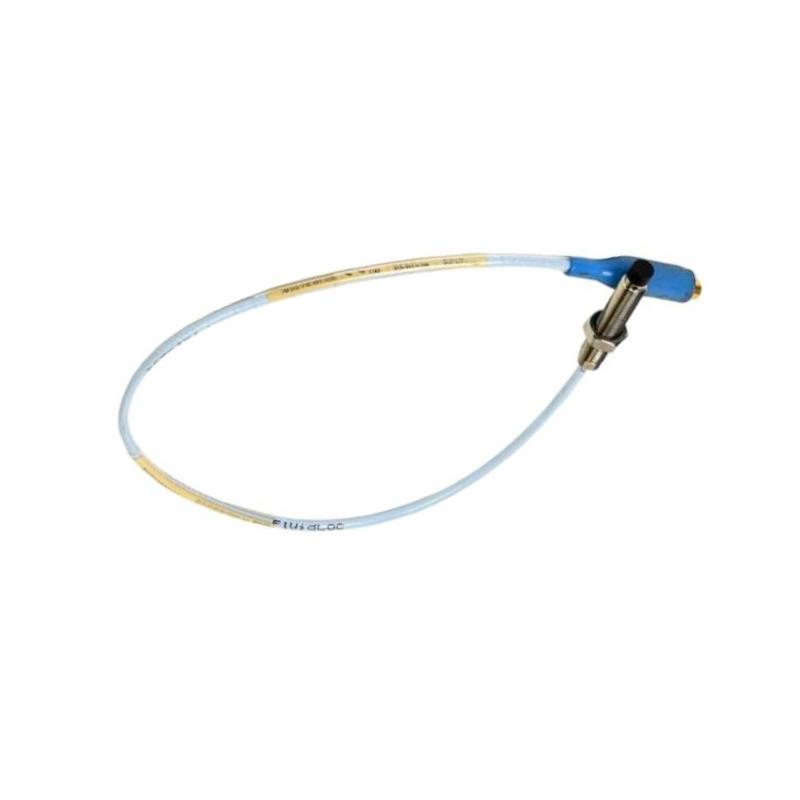

The Bently Nevada 330101-00-71-05-01-05 3300 XL 8mm Proximity Probe is a high-performance eddy-current sensor designed for continuous monitoring of shaft vibration, radial displacement, and axial position in critical rotating equipment. As part of the proven 3300 XL 8mm Proximity Transducer System, this probe delivers precise measurement accuracy, excellent environmental stability, and dependable long-term performance for industrial machinery protection.
This configuration incorporates a 7.1-inch probe case, a 0.5-meter integral standard cable, and a miniature ClickLoc™ coaxial connector, making it an excellent choice for applications that require an extended probe body with a compact cable assembly. With CSA, ATEX, and IECEx approvals, it is suitable for use in a wide range of industrial installations requiring certified monitoring solutions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-71-05-01-05 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Series | 3300 XL |
| Measuring Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 7.1 in (Approx. 180 mm) |
| Integral Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Cable Type | Standard FEP Cable |
| Agency Approval | 05 – CSA, ATEX, IECEx Approved |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 180 mm; Cable Length: 0.5 m |
| Approximate Weight | Approx. 0.34 kg |
