High-Accuracy Proximity Probe for Critical Rotating Equipment

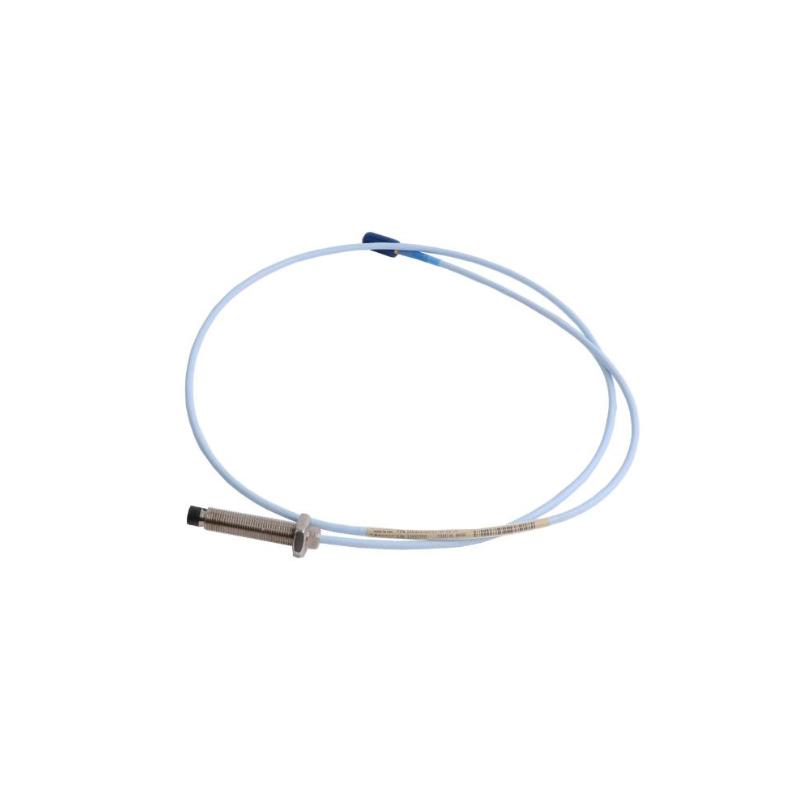

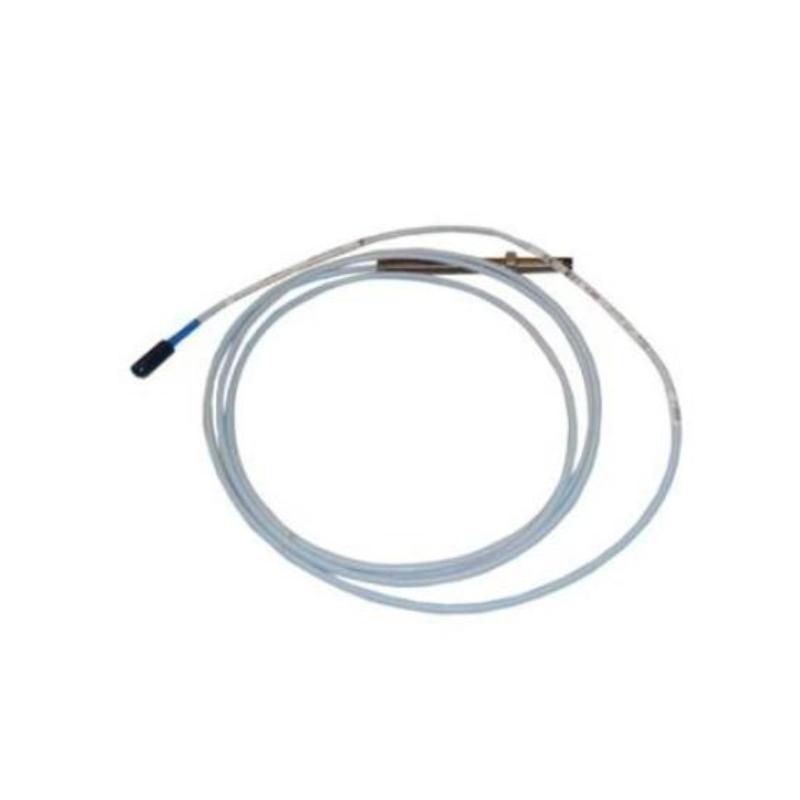

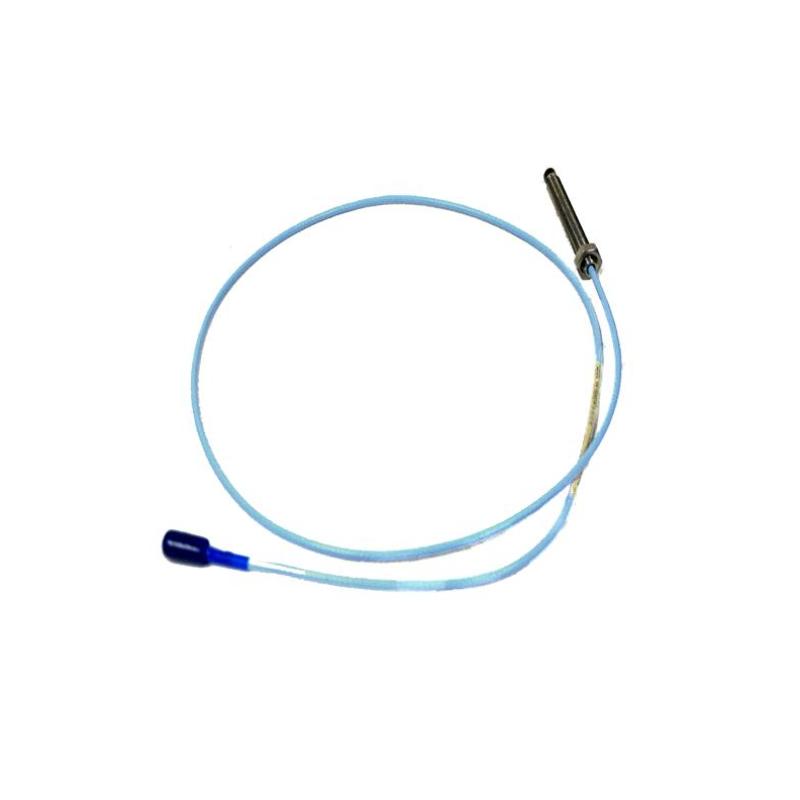

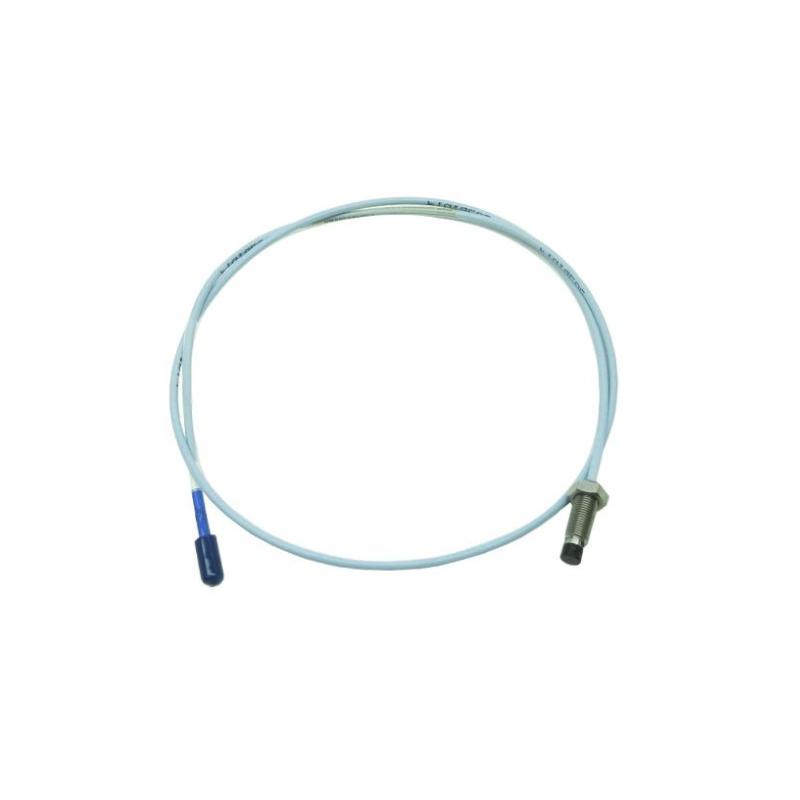

The Bently Nevada 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe is a precision non-contact sensor engineered for continuous measurement of shaft vibration, radial displacement, and axial position in industrial rotating machinery. As a key component of the 3300 XL 8 mm Proximity Transducer System, this probe combines advanced eddy-current sensing technology with robust construction to deliver consistent measurement accuracy and long-term operational reliability.
This configuration features a 6.8-inch probe case, a 1.0-meter FluidLoc™ integral cable, and a miniature ClickLoc™ coaxial connector, providing enhanced installation flexibility and improved protection against fluid ingress. With CSA, ATEX, and IECEx approvals, it is well suited for machinery protection systems operating in demanding industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-68-10-12-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Measuring Principle | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.8 in (Approx. 173 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Cable Type | FluidLoc™ Cable |
| Agency Approval | 05 – CSA, ATEX, IECEx Approved |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | 304 Stainless Steel |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 173 mm; Cable Length: 1.0 m |
| Approximate Weight | 0.36 kg |
