Engineered for Precision Machinery Condition Monitoring

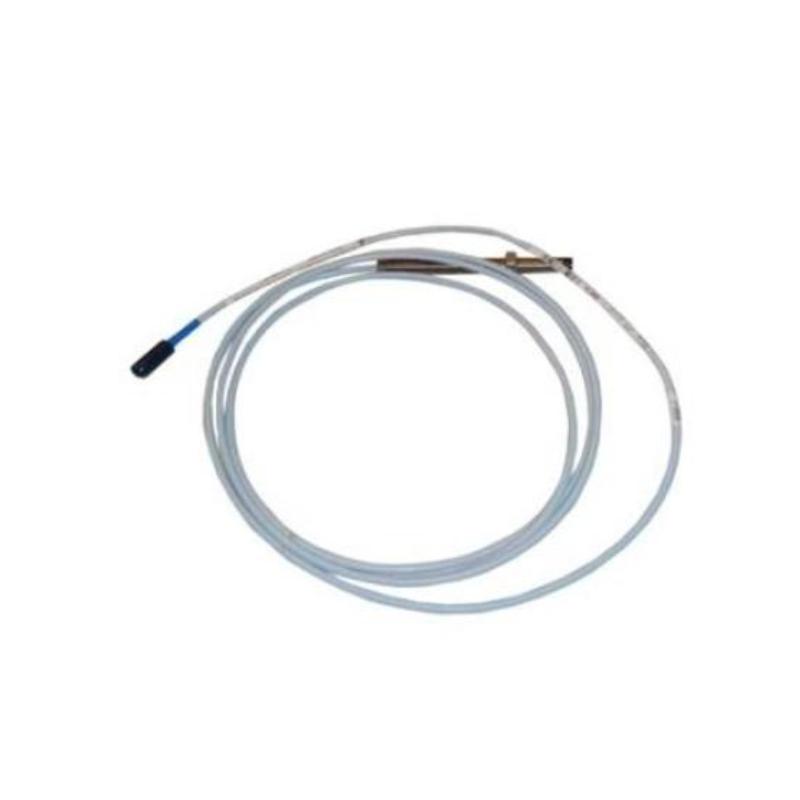

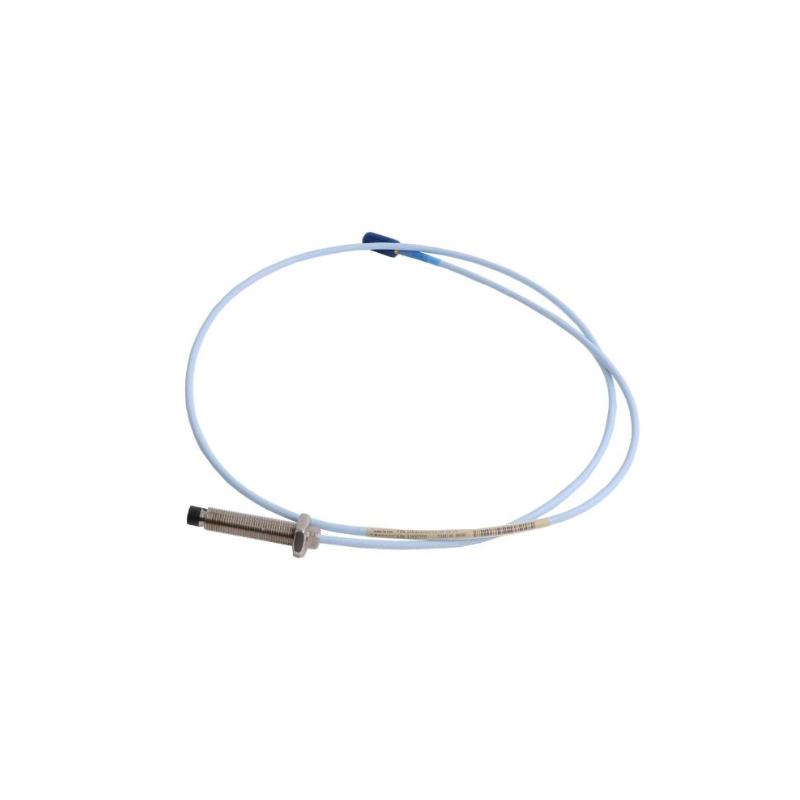

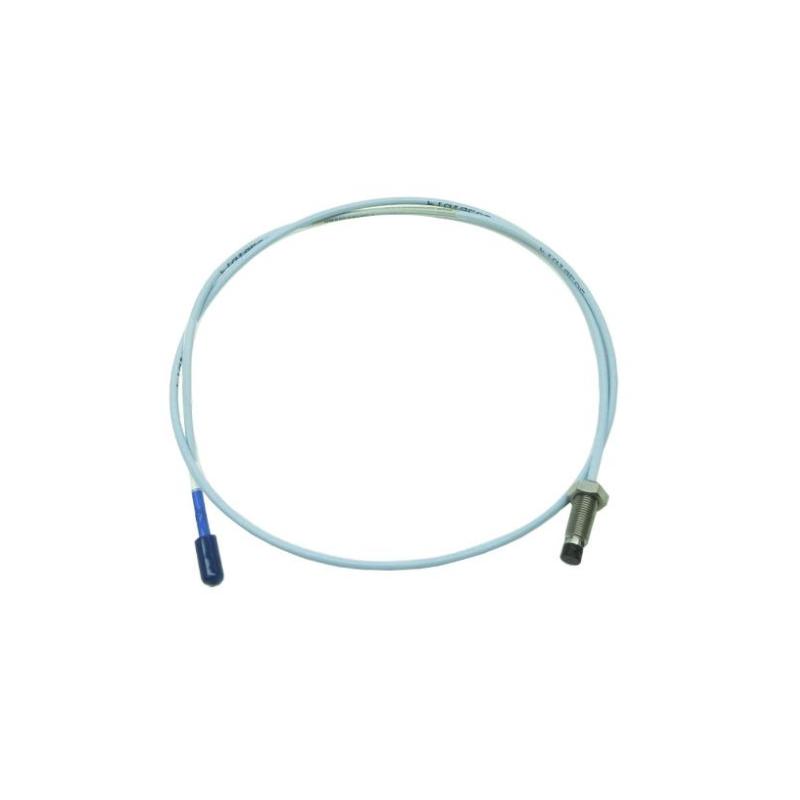

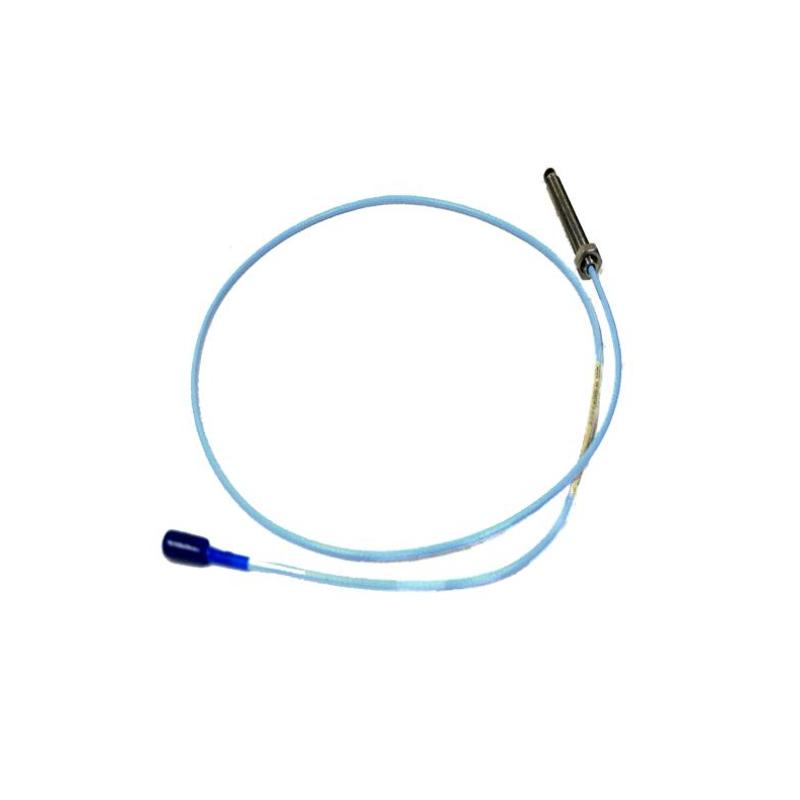

The Bently Nevada 330101-00-67-10-12-CN 3300 XL 8 mm Proximity Probe is a premium non-contact eddy-current sensor developed for continuous monitoring of shaft vibration, radial displacement, and axial position in critical rotating machinery. As an integral part of the 3300 XL 8 mm Proximity Transducer System, this probe delivers exceptional measurement accuracy, stable signal performance, and long-term reliability for demanding industrial applications.
This configuration features a 6.7-inch probe case, 1.0-meter FluidLoc™ integral cable, miniature ClickLoc™ coaxial connector, and the CN approval option for region-specific hazardous-area installations. Designed to withstand challenging operating environments, it provides dependable performance while helping maintenance teams enhance equipment availability and reduce unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-67-10-12-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Measuring Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.7 in (Approx. 170 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Cable Type | FluidLoc™ Cable |
| Approval Option | CN – Region-Specific Hazardous Area Certification |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | 304 Stainless Steel |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 170 mm; Cable Length: 1.0 m |
| Approximate Weight | 0.18 kg |
