Trusted Performance for Continuous Machinery Condition Monitoring

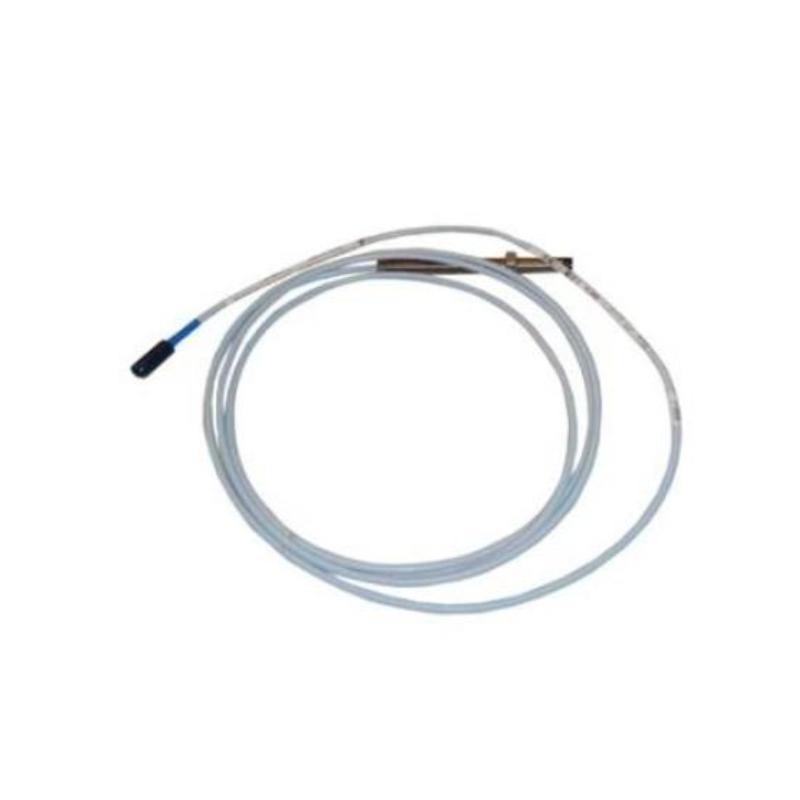

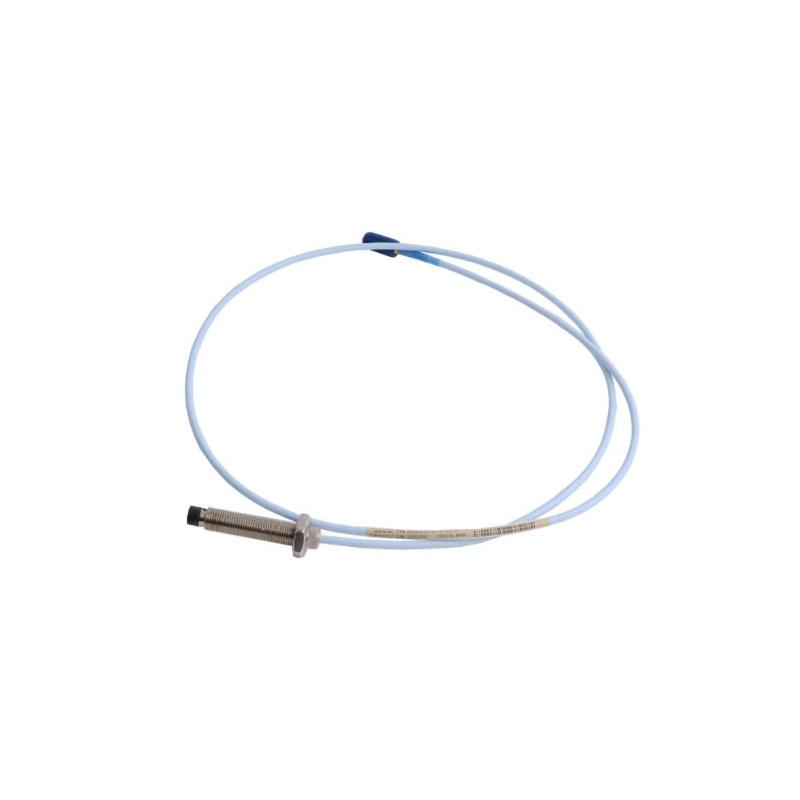

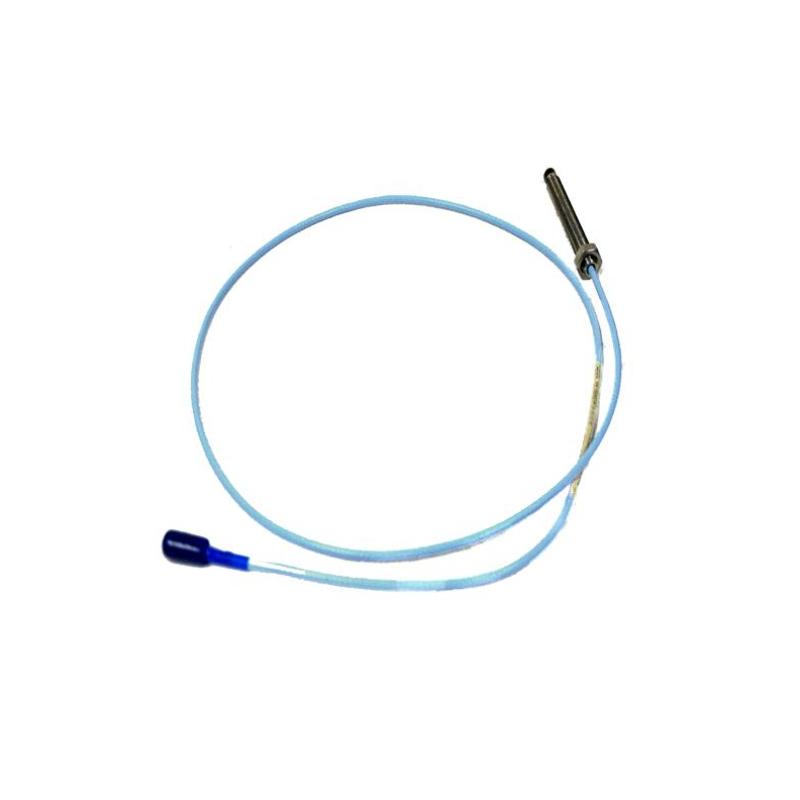

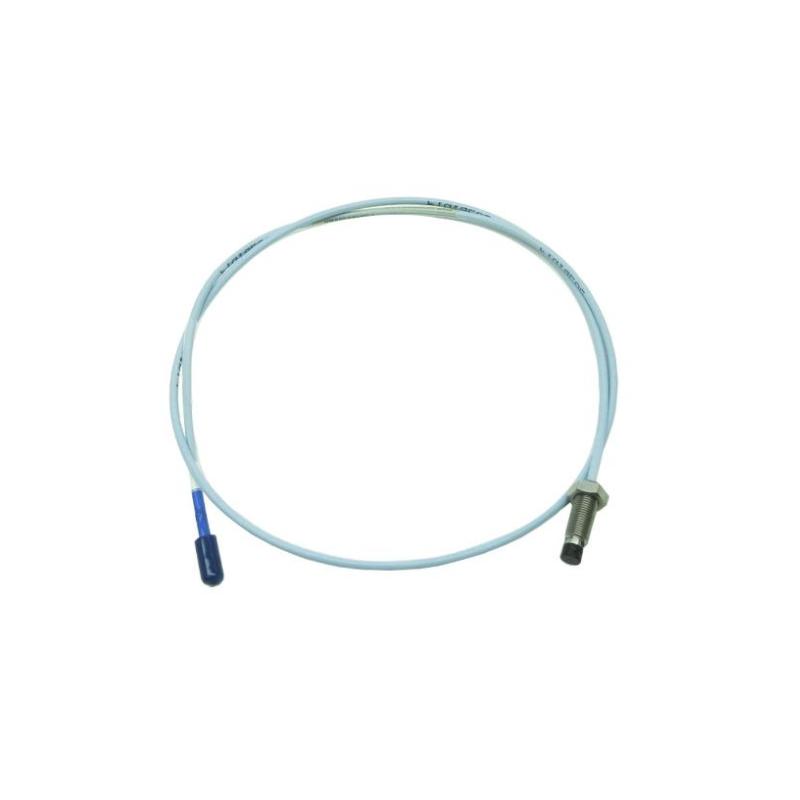

The Bently Nevada 330101-00-66-10-02-CN 3300 XL 8 mm Proximity Probe is a precision-engineered non-contact sensor designed for accurate measurement of shaft vibration, axial position, and radial displacement in critical rotating machinery. As part of the industry-proven 3300 XL 8 mm Proximity Transducer System, this probe combines advanced eddy-current sensing technology with a rugged mechanical design to deliver reliable performance in demanding industrial applications.
This configuration incorporates a 6.6-inch probe case, 1.0-meter standard integral cable, miniature ClickLoc™ coaxial connector, and the CN approval option, making it well suited for installations requiring regional hazardous-area certifications. Its durable construction and stable output help improve equipment reliability while supporting predictive maintenance strategies.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-66-10-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL |
| Measuring Principle | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.6 in (Approx. 168 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Cable Type | Standard Cable |
| Approval Option | CN – ATEX, IECEx and Chinese NEPSI Hazardous Area Certification |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 168 mm; Cable Length: 1.0 m |
| Approximate Weight | 0.32 kg |
