Precision Sensing for Reliable Machinery Protection

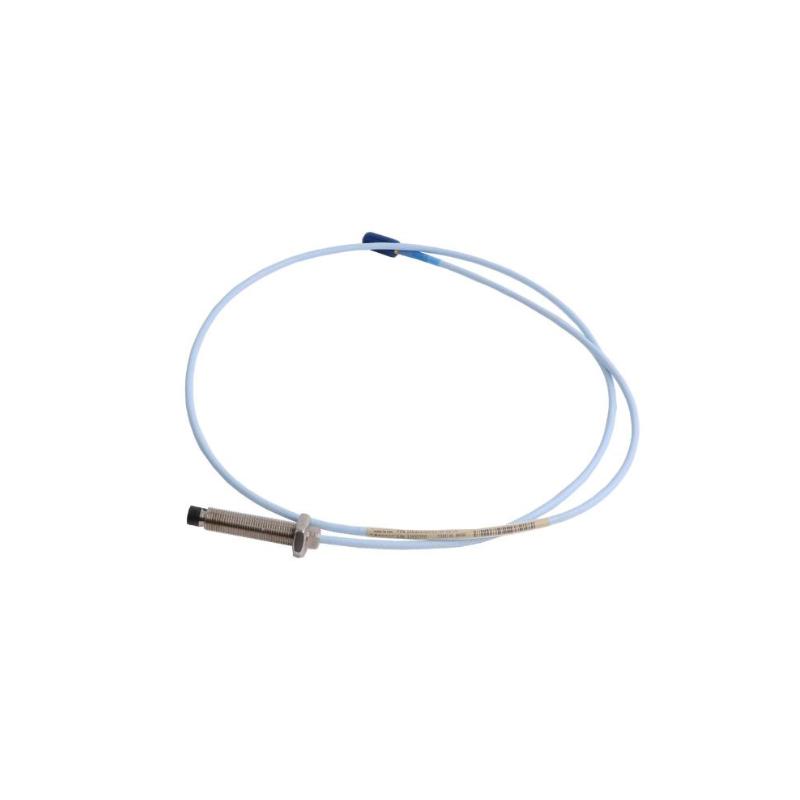

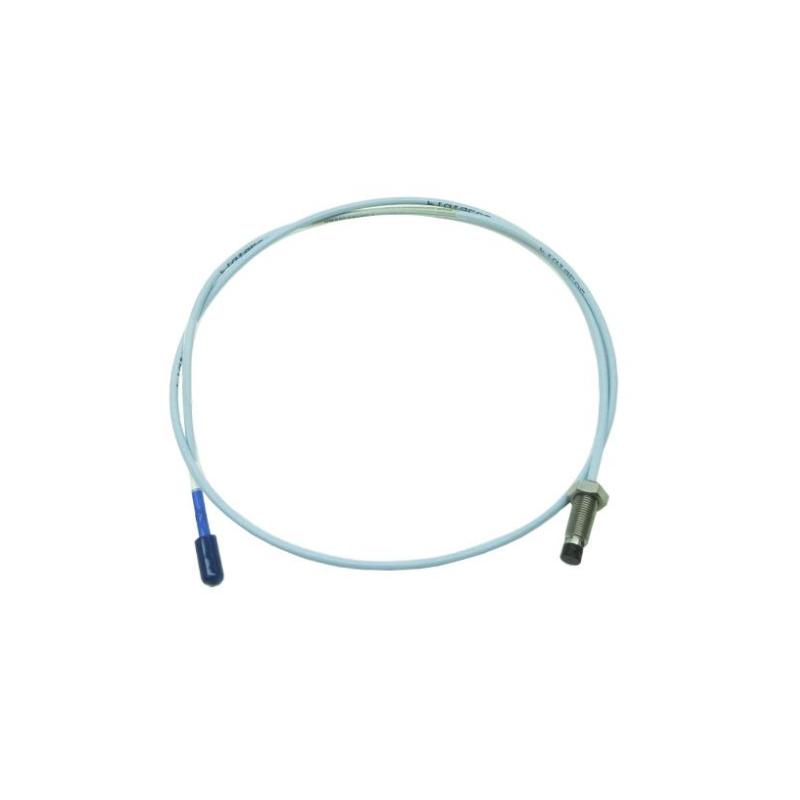

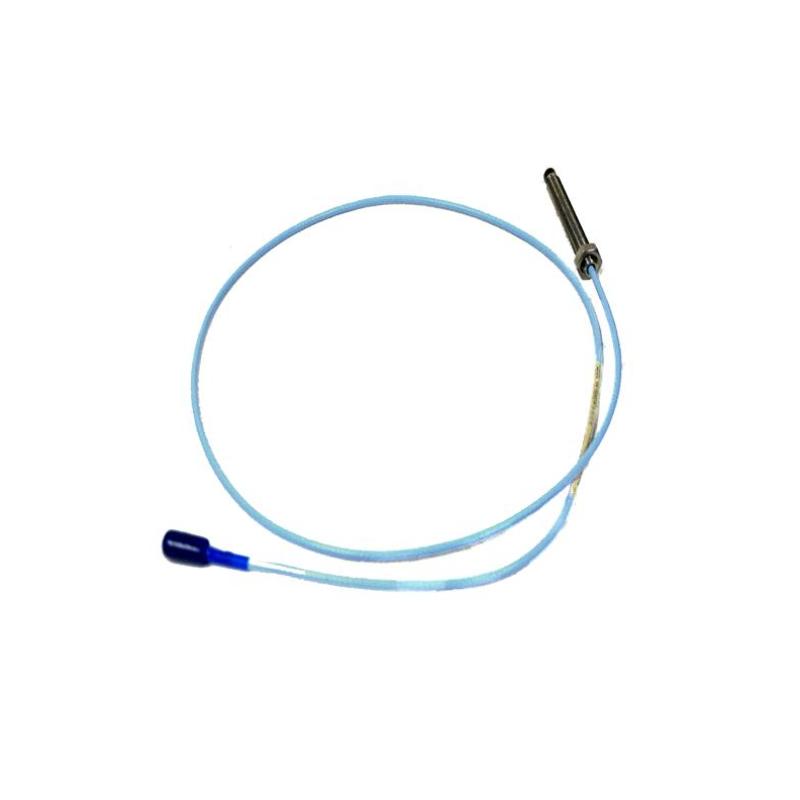

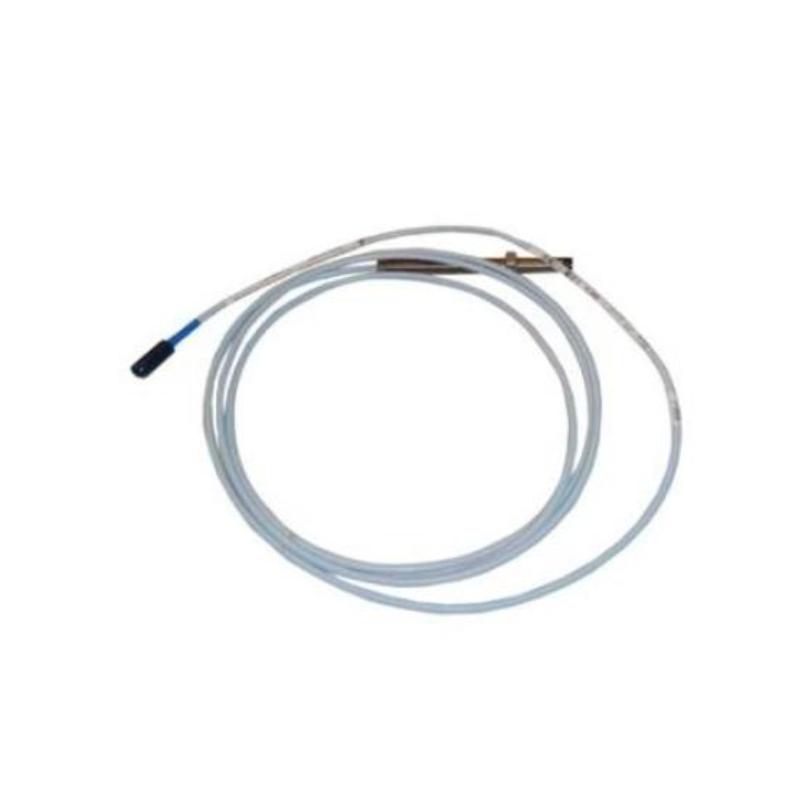

The Bently Nevada 330101-00-66-10-02-05 3300 XL 8 mm Proximity Probe is a high-accuracy, non-contact sensor engineered for continuous monitoring of shaft vibration, axial position, and radial displacement in critical rotating equipment. As a member of the trusted 3300 XL 8 mm Proximity Transducer System, this probe delivers exceptional measurement stability, dependable long-term performance, and seamless integration with industrial machinery protection systems.
This configuration features a 6.6-inch probe case, a 1.0-meter integral standard cable, and a miniature ClickLoc coaxial connector, making it suitable for installations that require an extended probe body while maintaining outstanding signal quality. With hazardous-area approvals included, it is an excellent choice for demanding industrial environments where reliability is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-66-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Measuring Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.6 in (Approx. 168 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Cable Type | Standard Cable |
| Agency Approval | 05 – CSA, ATEX, IECEx Approved |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 168 mm; Cable Length: 1.0 m |
| Approximate Weight | 0.32 kg |
