Built for High-Reliability Vibration and Position Monitoring

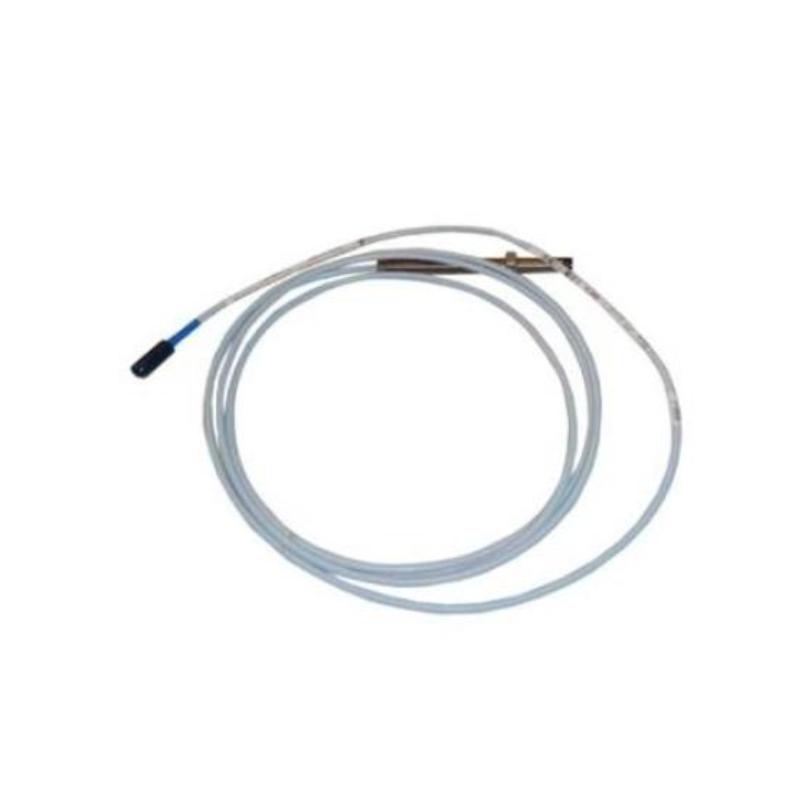

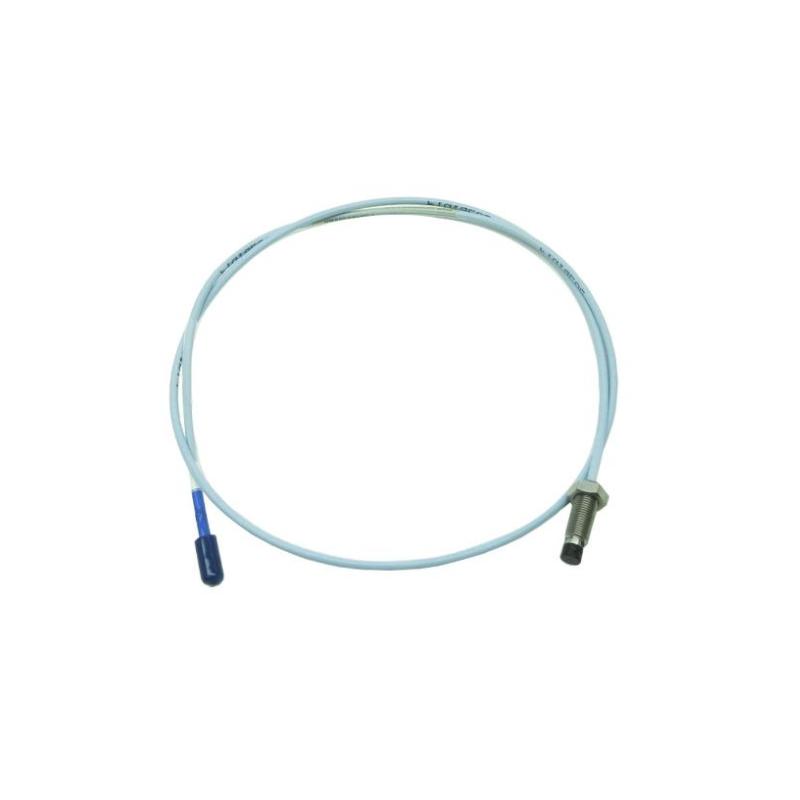

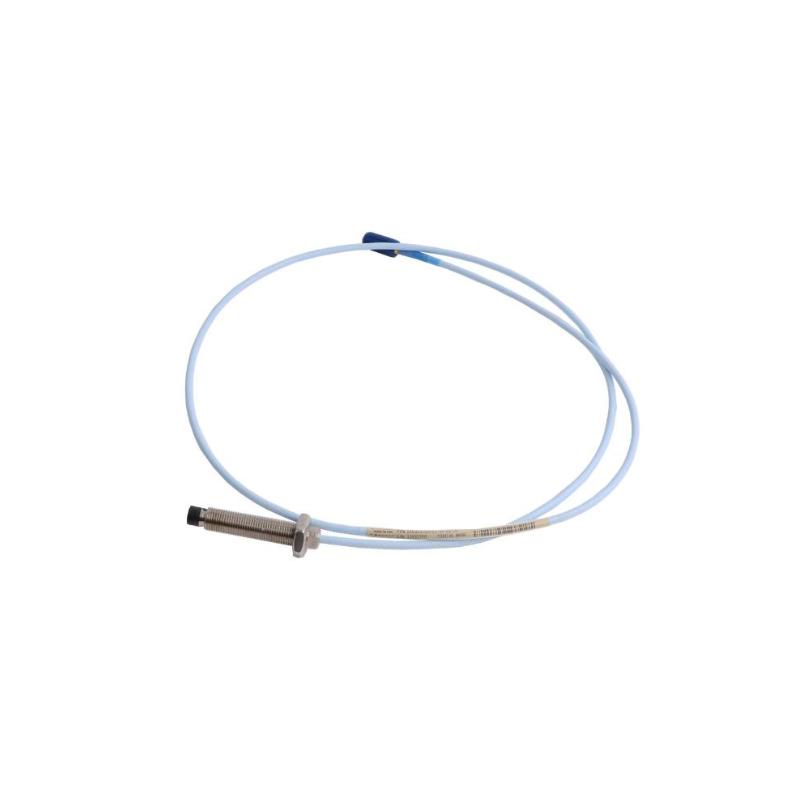

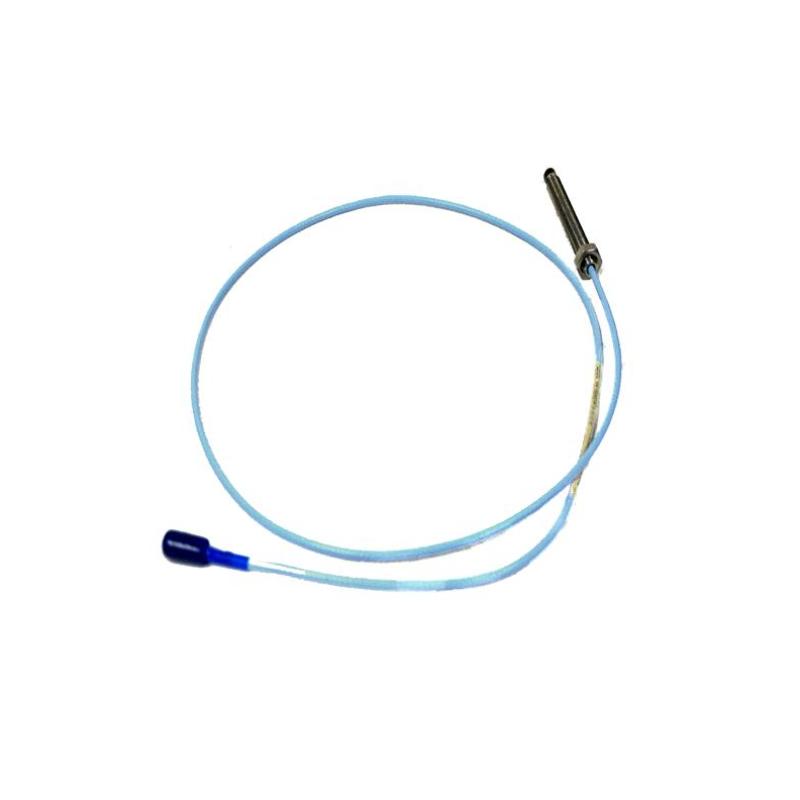

The Bently Nevada 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe is a premium non-contact sensor designed to deliver accurate shaft vibration, axial position, and displacement measurements for critical rotating machinery. As part of the trusted 3300 XL 8 mm Proximity Transducer System, this probe provides exceptional measurement stability, long service life, and dependable performance in demanding industrial environments.
This configuration features a 6.3-inch probe body, 2.0-meter FluidLoc™ cable, and a miniature ClickLoc coaxial connector, making it well suited for installations that require enhanced protection against fluid ingress while maintaining excellent signal integrity. The hazardous-area approval option further expands its suitability for challenging industrial applications. The 3300 XL system is designed for precise vibration and position measurements on fluid-film bearing machines and complies with demanding machinery monitoring requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-63-20-12-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.3 in (Approx. 160 mm) |
| Integral Cable Length | 2.0 m (6.6 ft) |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | FluidLoc™ Cable |
| Agency Approval | 05 – CSA, ATEX, IECEx Approved |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 160 mm; Cable Length: 2.0 m |
| Approximate Weight | 0.38 kg |
