Designed for Accurate Condition Monitoring of Critical Machinery

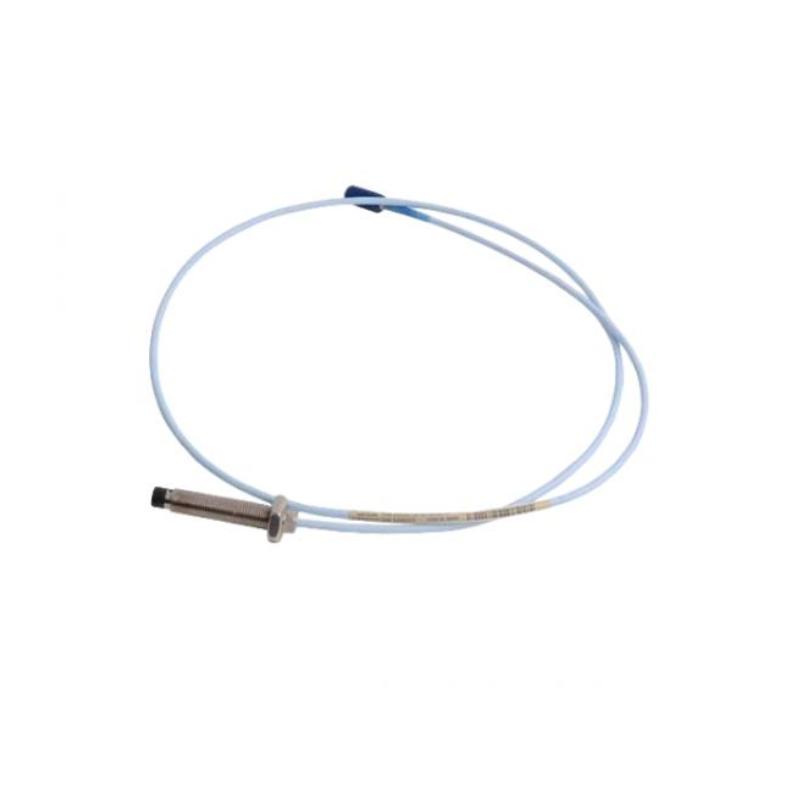

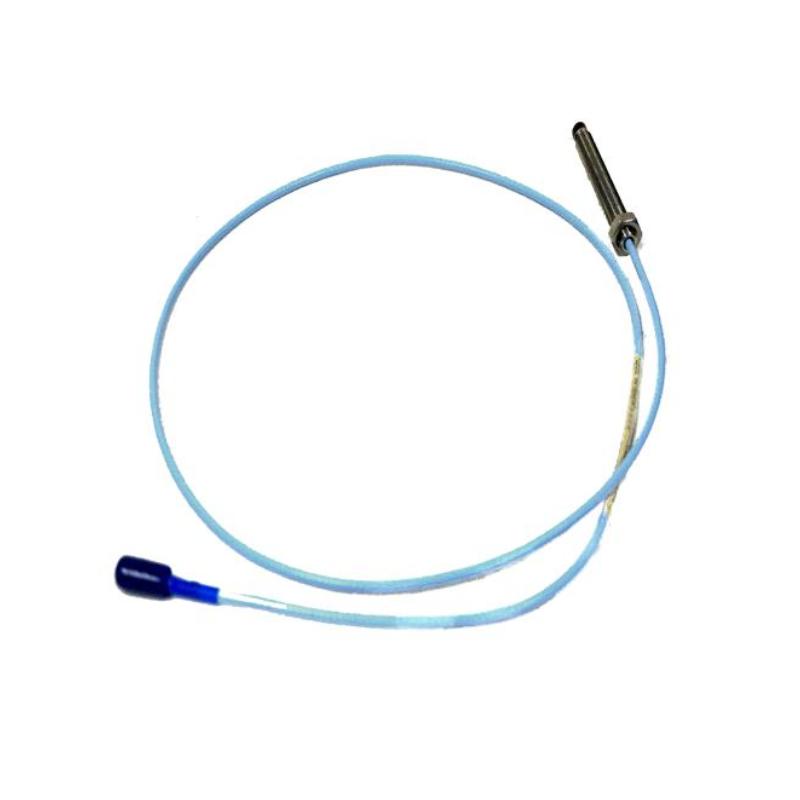

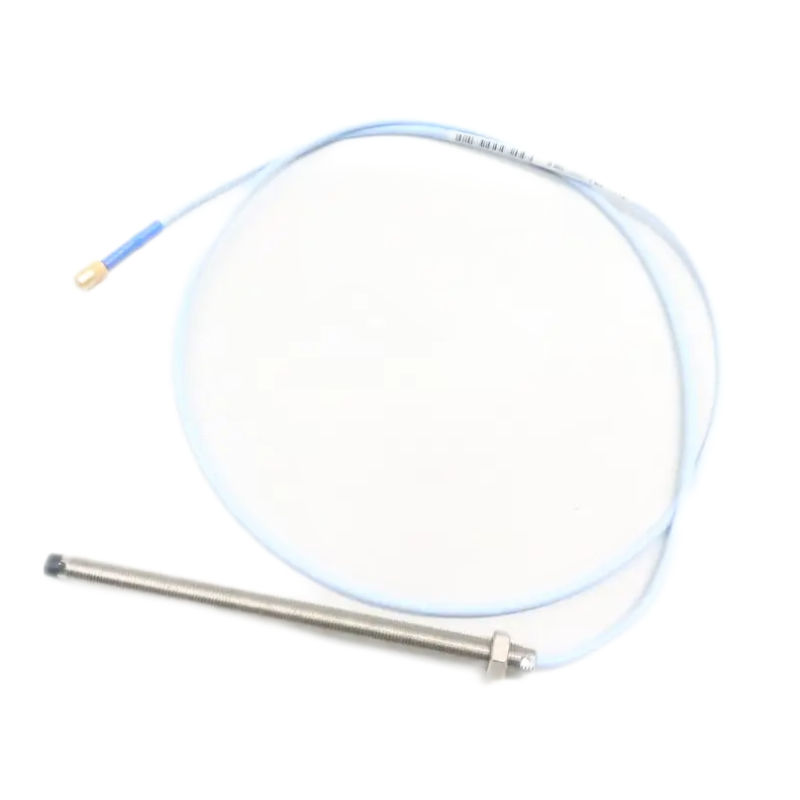

The Bently Nevada 330101-00-63-10-02-00 3300 XL 8 mm Proximity Probe is a precision non-contact sensor developed for continuous monitoring of shaft vibration, radial displacement, and axial position in industrial rotating equipment. As a key component of the 3300 XL 8 mm Proximity Transducer System, this probe combines proven eddy-current sensing technology with robust mechanical construction to deliver reliable performance in demanding operating environments.
This configuration features a 6.3-inch probe body, a 1.0-meter integral cable, and a miniature ClickLoc coaxial connector, making it suitable for machinery protection systems that require accurate measurements and dependable long-term operation. Its compact design and high signal stability make it an excellent choice for predictive maintenance and equipment health monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-63-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.3 in (Approx. 160 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | Standard Cable |
| Agency Approval | 00 – Approval Not Required |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 160 mm; Cable Length: 1.0 m |
| Approximate Weight | 0.34 kg |
