Engineered for Precise Shaft Vibration Monitoring

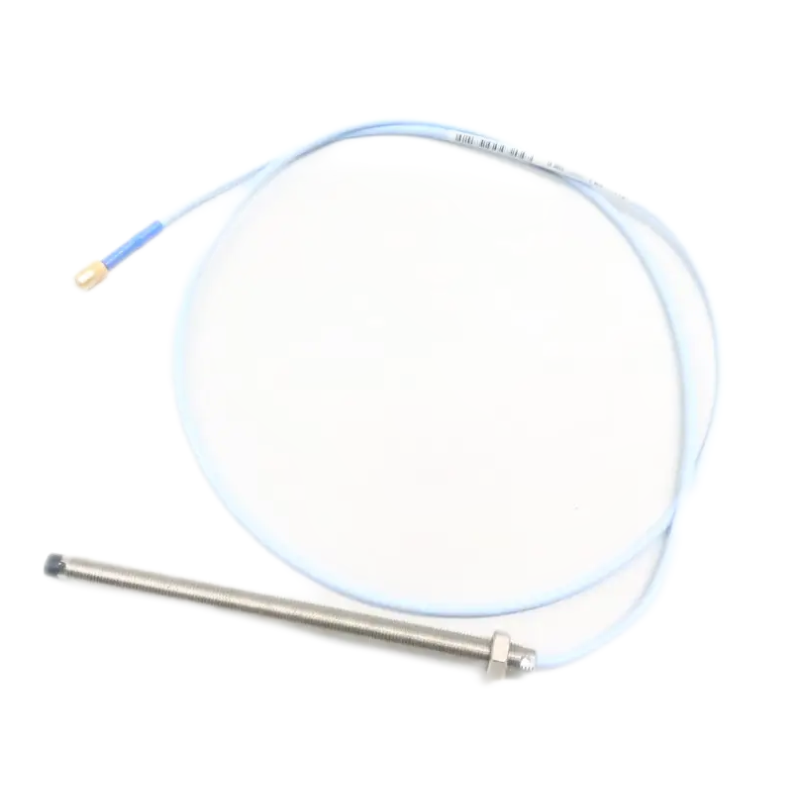

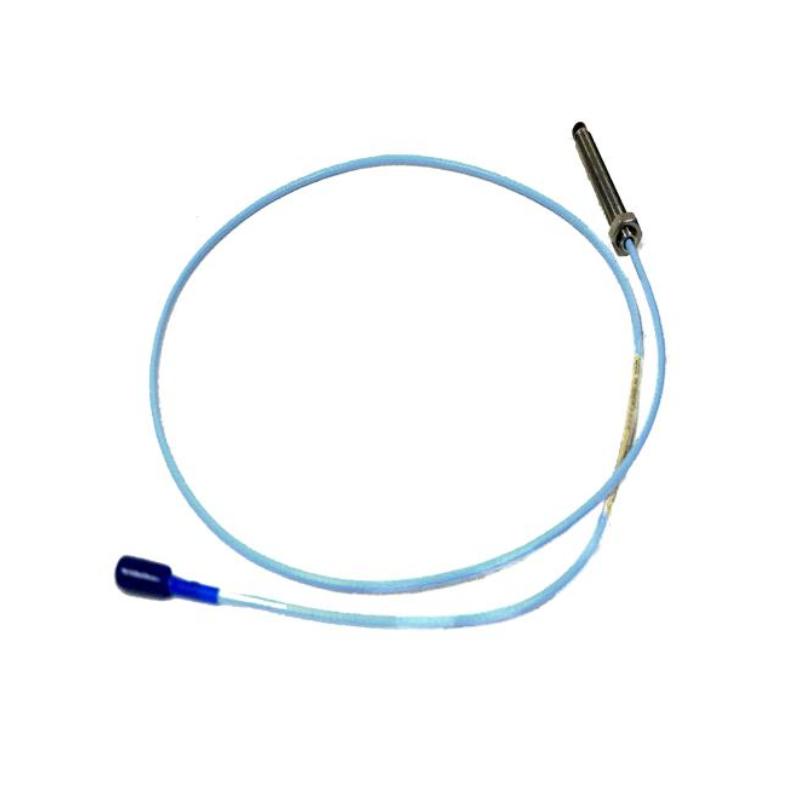

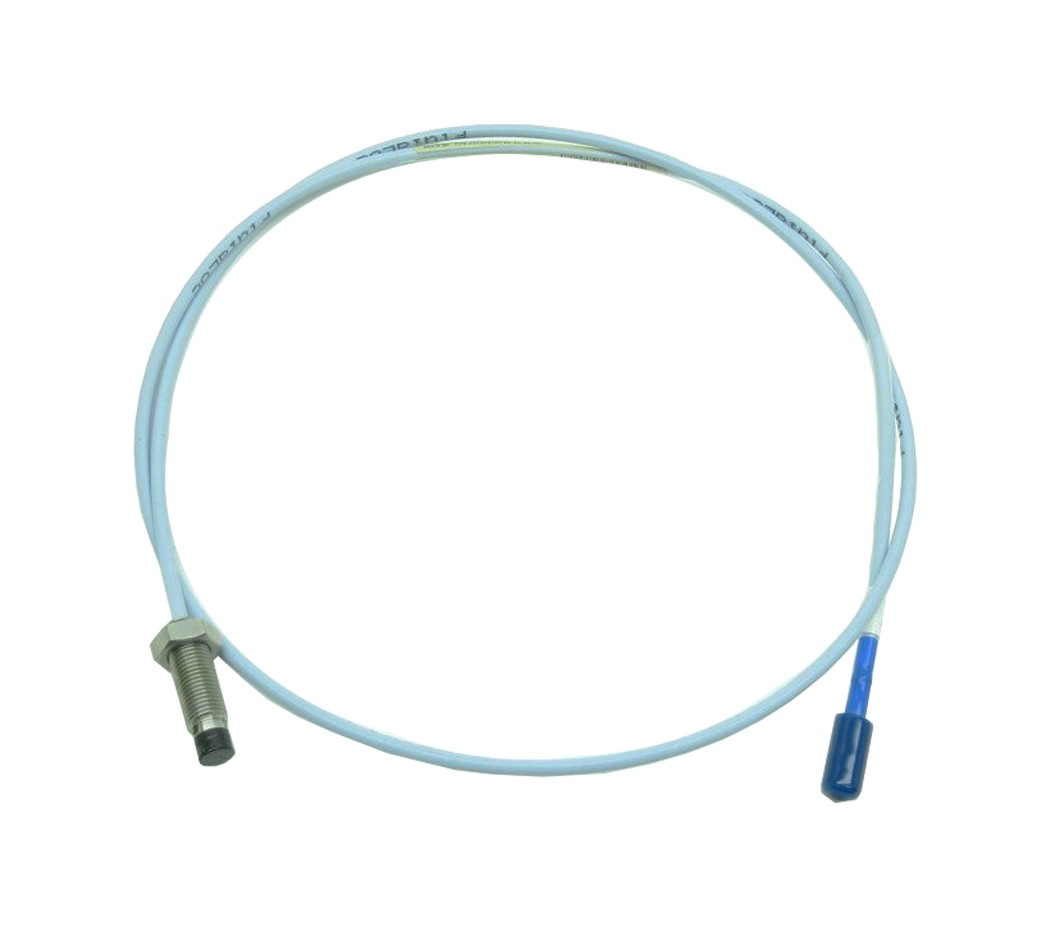

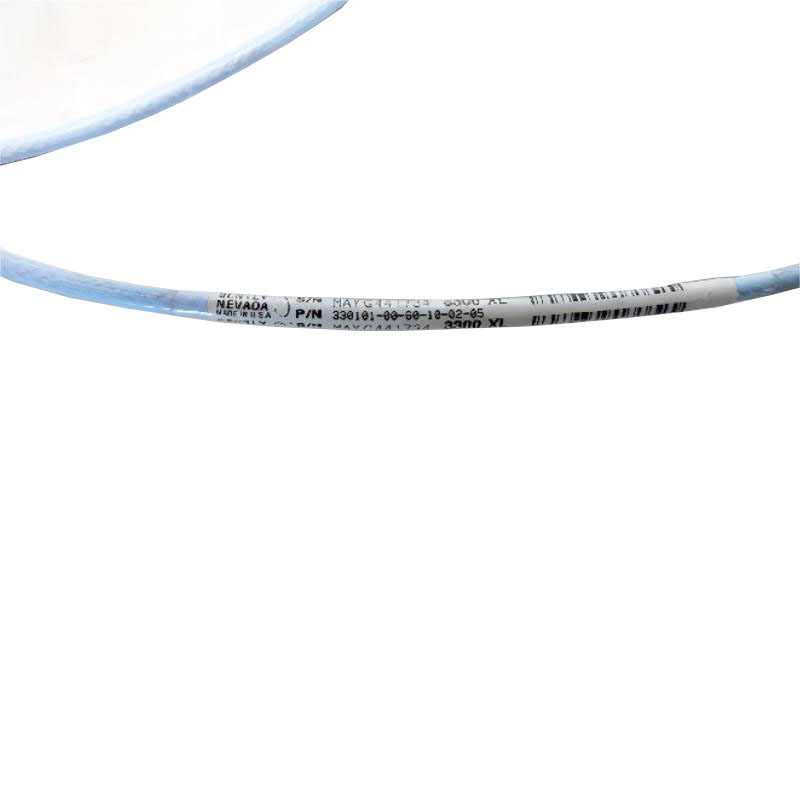

The Bently Nevada 330101-00-60-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact sensor designed for accurate measurement of shaft vibration, axial position, and radial displacement in rotating machinery. As part of the industry-leading 3300 XL 8 mm Proximity Transducer System, this probe provides exceptional measurement accuracy, long-term stability, and dependable operation in demanding industrial applications.
Configured with a 6.0-inch probe case, 1.0-meter integral cable, and a miniature ClickLoc coaxial connector, this model is optimized for machinery protection systems requiring reliable signal transmission and hazardous-area compliance. Its rugged construction and proven eddy-current sensing technology make it an ideal solution for continuous equipment condition monitoring and predictive maintenance programs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-60-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in (0 mm) |
| Overall Case Length | 6.0 in (152.4 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | Standard FEP Cable |
| Agency Approval | 05 – CSA, ATEX, IECEx Approved |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 152.4 mm; Cable Length: 1.0 m |
| Approximate Weight | 0.43 kg |
