Precision Monitoring Solution for Rotating Equipment

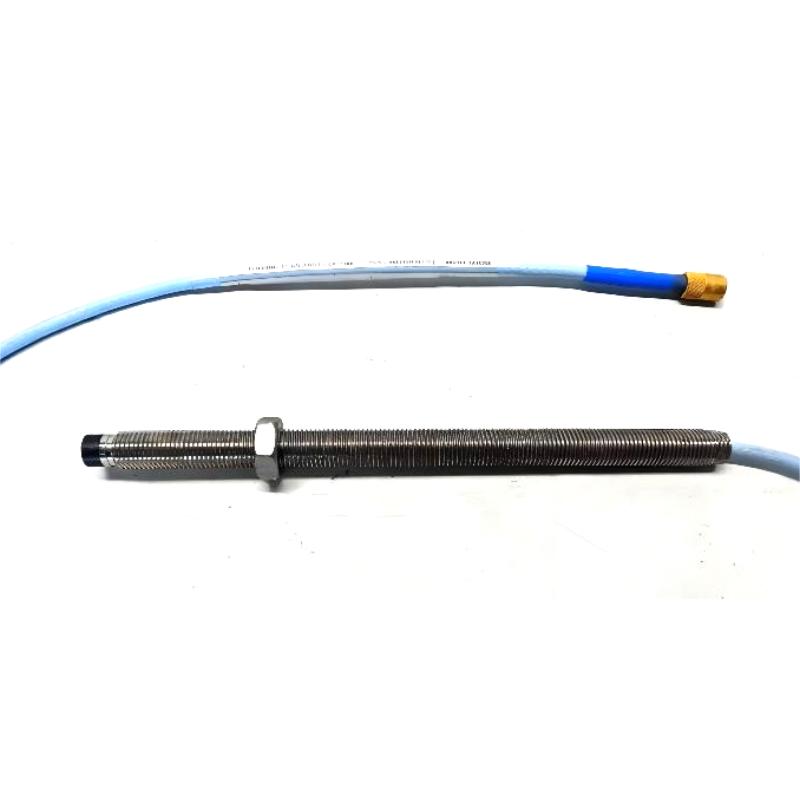

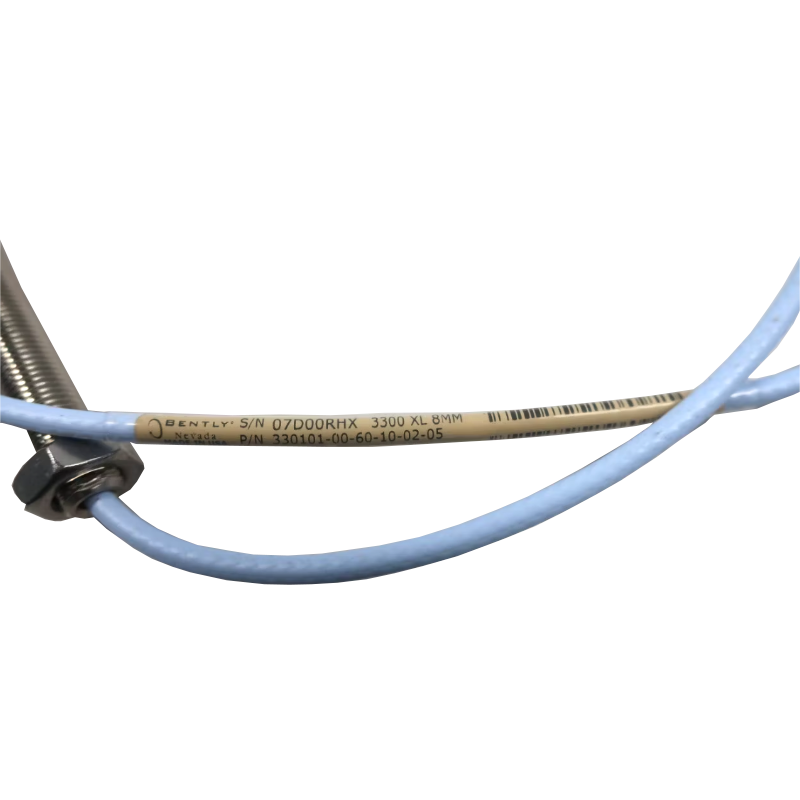

The Bently Nevada 330101-00-60-05-01-00 3300 XL 8mm Proximity Probe is a high-precision non-contact sensor designed for continuous monitoring of shaft vibration, axial position, and displacement in critical rotating machinery. As part of the proven 3300 XL 8mm Proximity Transducer System, this probe delivers exceptional measurement accuracy, dependable long-term stability, and reliable operation in demanding industrial environments.
This configuration features a 6.0-inch probe case with a 0.5-meter integral cable, making it an excellent choice for installations where a shorter cable length is preferred while maintaining superior signal quality. Engineered for durability and precision, the probe supports predictive maintenance programs and helps maximize machinery availability through continuous condition monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-60-05-01-00 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Product Series | 3300 XL |
| Measuring Principle | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.0 in (Approx. 152 mm) |

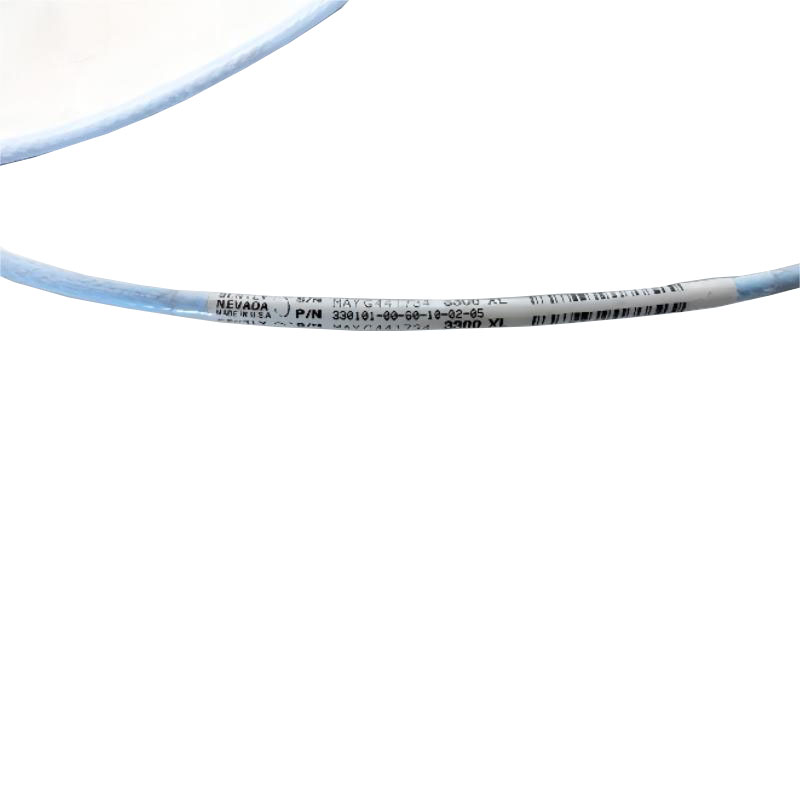

| Integral Cable Length | 0.5 m (1.6 ft) |

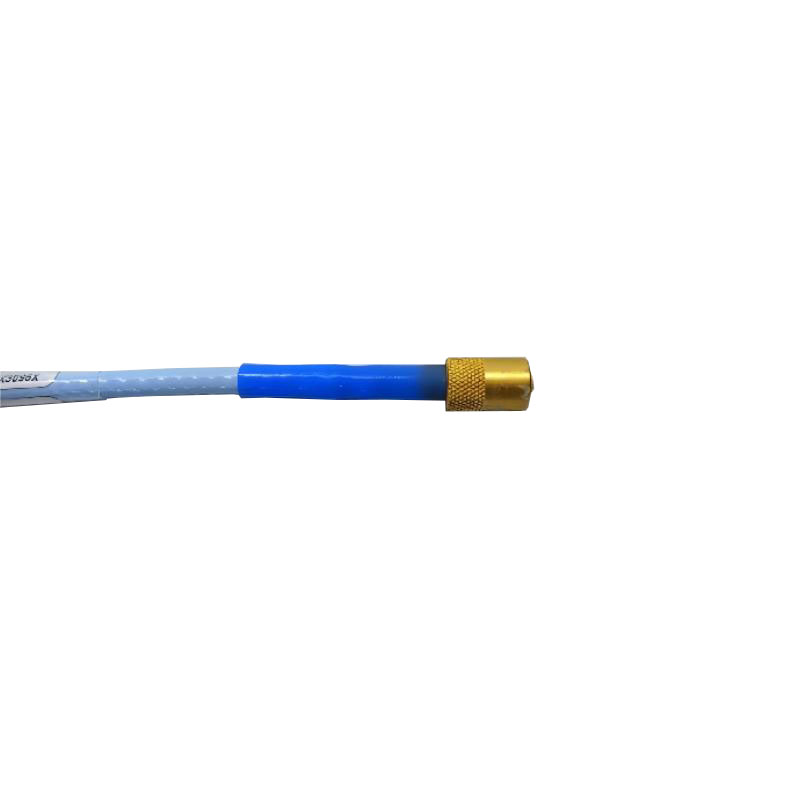

| Connector Type | Miniature Coaxial Connector |
| Cable Type | Standard Cable |
| Agency Approval | Not Required (00) |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 152 mm; Cable Length: 0.5 m |
| Approximate Weight | 0.29 kg |
