Reliable Non-Contact Sensing for Critical Rotating Machinery

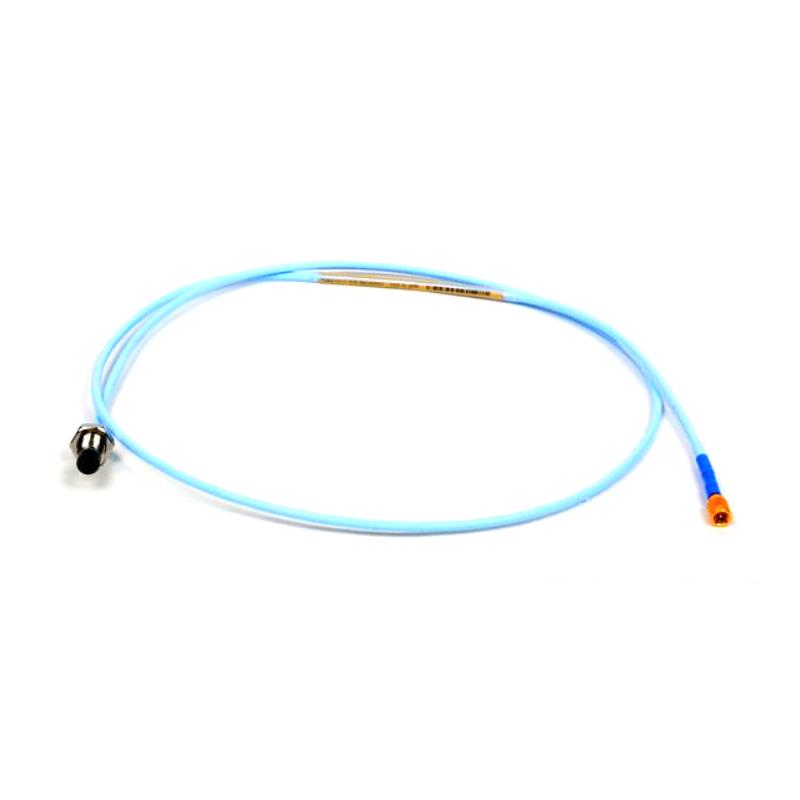

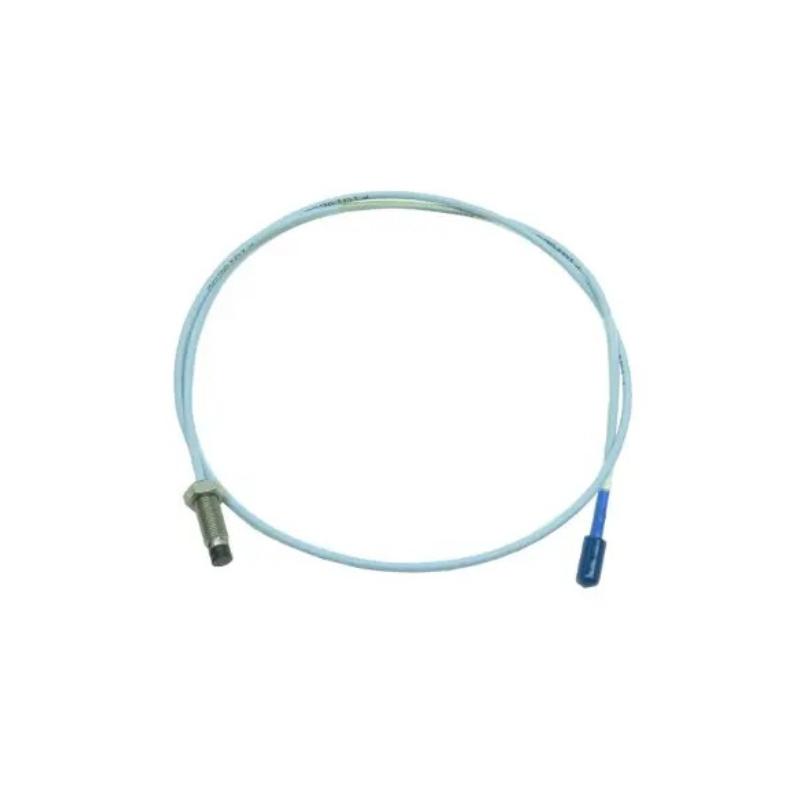

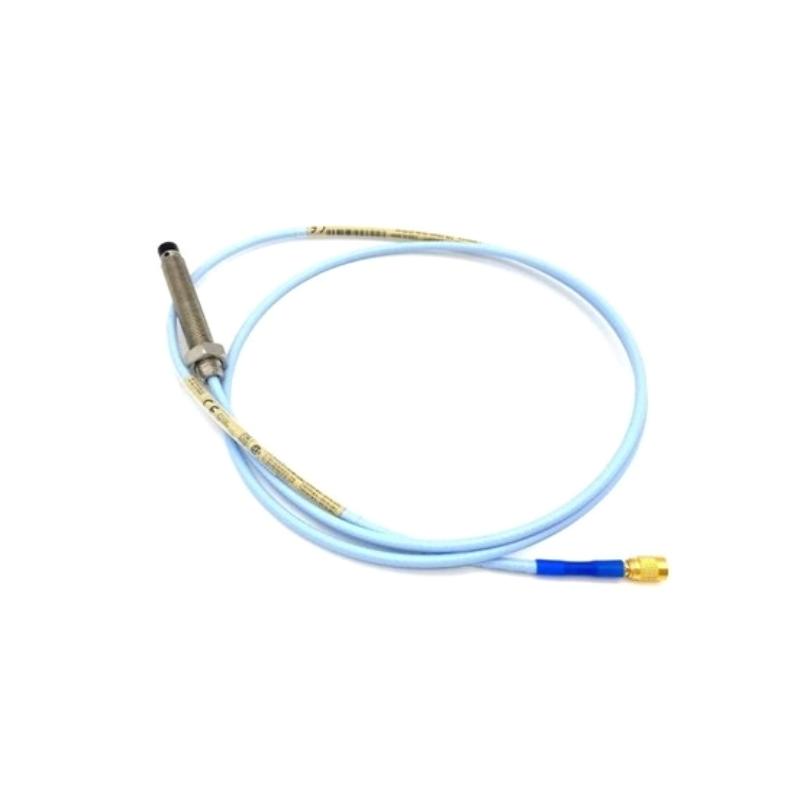

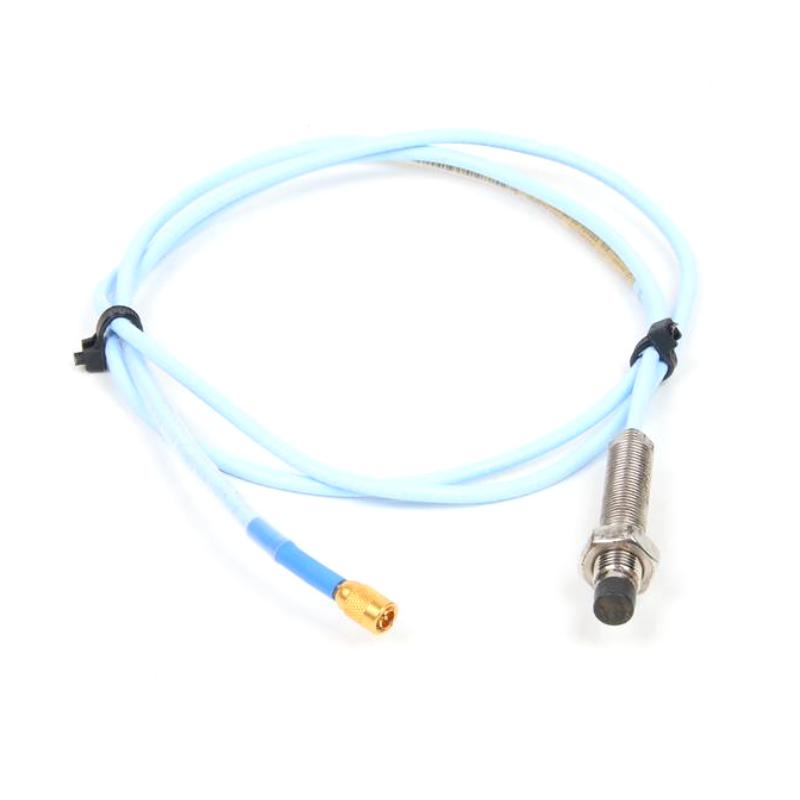

The Bently Nevada 330101-00-58-10-02-CN 3300 XL 8 mm Proximity Probe is a high-performance eddy-current sensor developed for continuous monitoring of shaft vibration, axial position, and displacement in rotating equipment. Designed as part of the proven 3300 XL Proximity Transducer System, this probe provides dependable measurement accuracy and long-term operational stability for industrial machinery protection.
Featuring an 8 mm sensing tip, a 5.8-inch probe body, and a 1-meter integral cable with a miniature ClickLoc connector, this model is engineered for easy installation and reliable operation in demanding industrial environments. The CN approval option includes certification for specific hazardous-area applications, making it suitable for installations requiring regional compliance.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-58-10-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Measuring Principle | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 5.8 in (147 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Approval Option | CN (ATEX, IECEx & Chinese NEPSI Hazardous Area Marking) |
| Mounting | Threaded Installation |
| Approximate Dimensions | Probe Body: 147 mm; Cable Length: 1.0 m |
| Approximate Weight | 0.323 kg |
