Overview

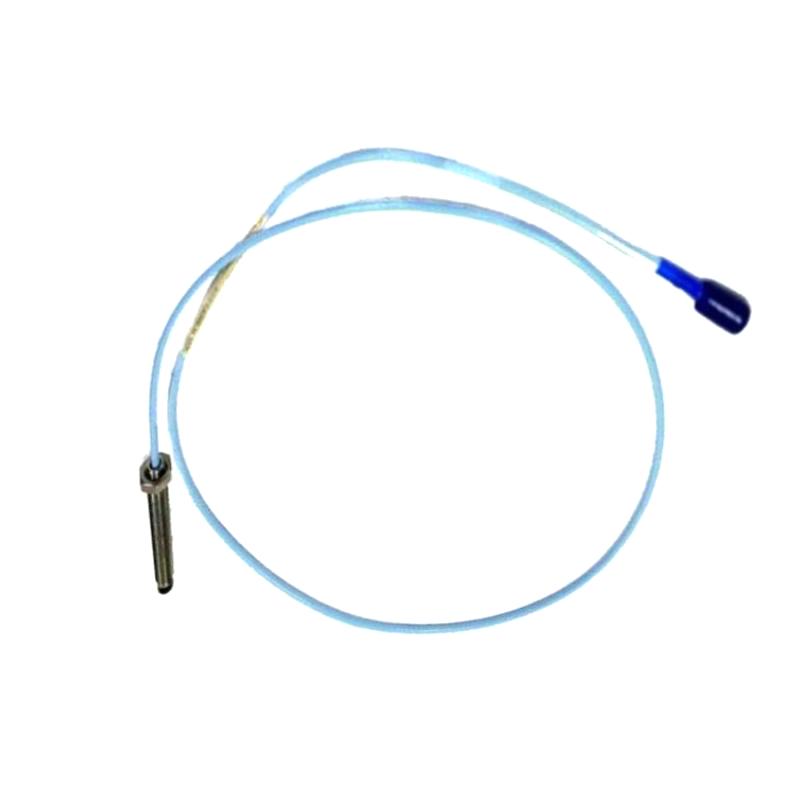

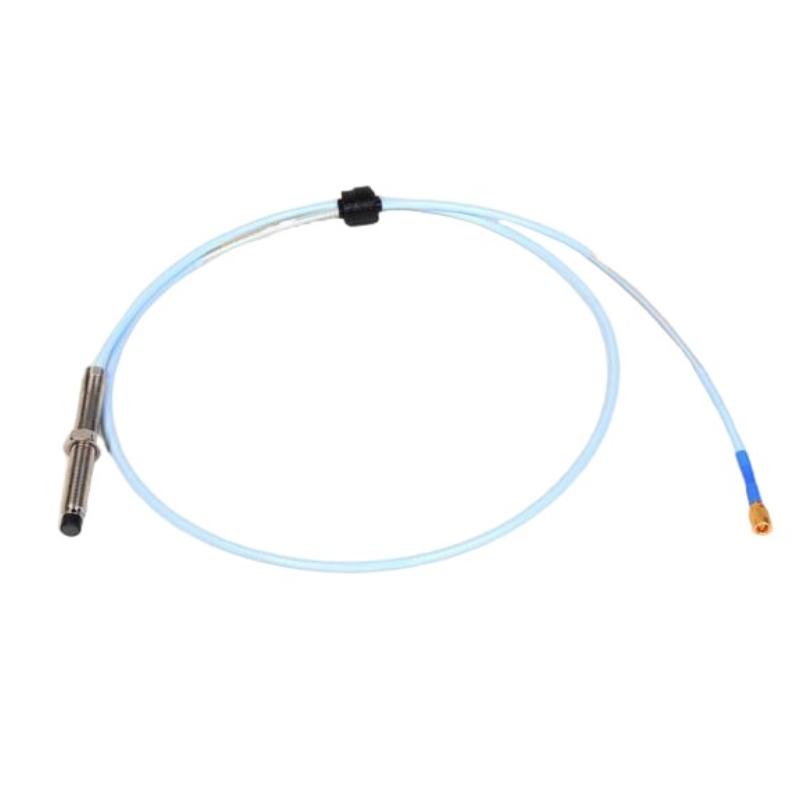

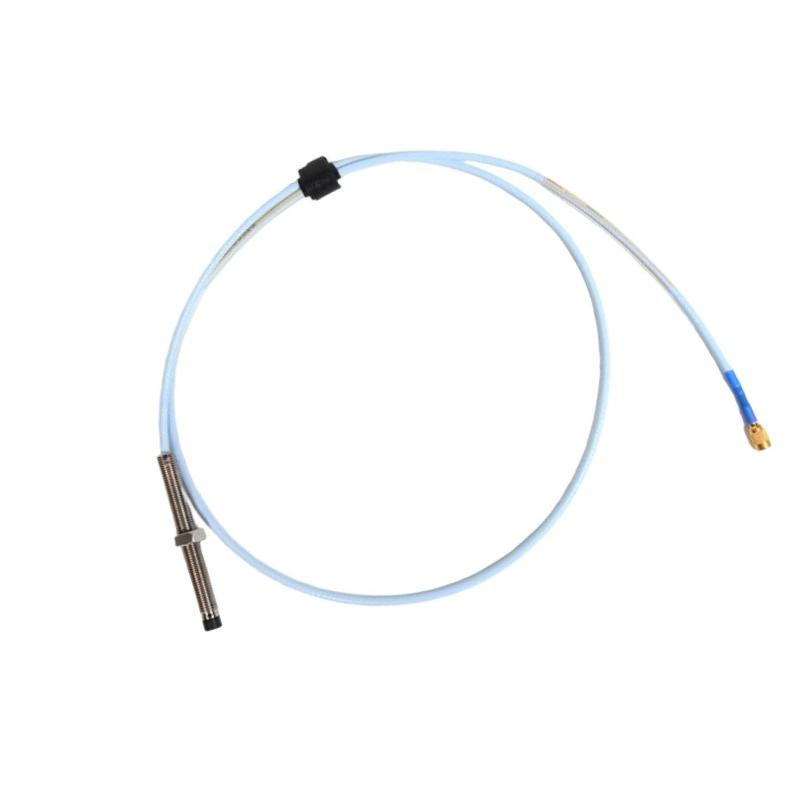

The Bently Nevada 330101-00-50-15-02-05 is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, axial displacement, and Keyphasor®/speed reference signals in critical rotating machinery. It is a component of the 3300 XL 8 mm Proximity Transducer System, which consists of a proximity probe, a compatible 3300 XL Proximitor® Sensor, and (when required) a 330130 extension cable. The complete system is factory calibrated to deliver accurate, reliable machinery protection and condition monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-50-15-02-05 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor | Non-armored |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 5.0 in (127.0 mm) |
| Integral Cable Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | 05 – CSA, ATEX, IECEx approvals |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
