Overview

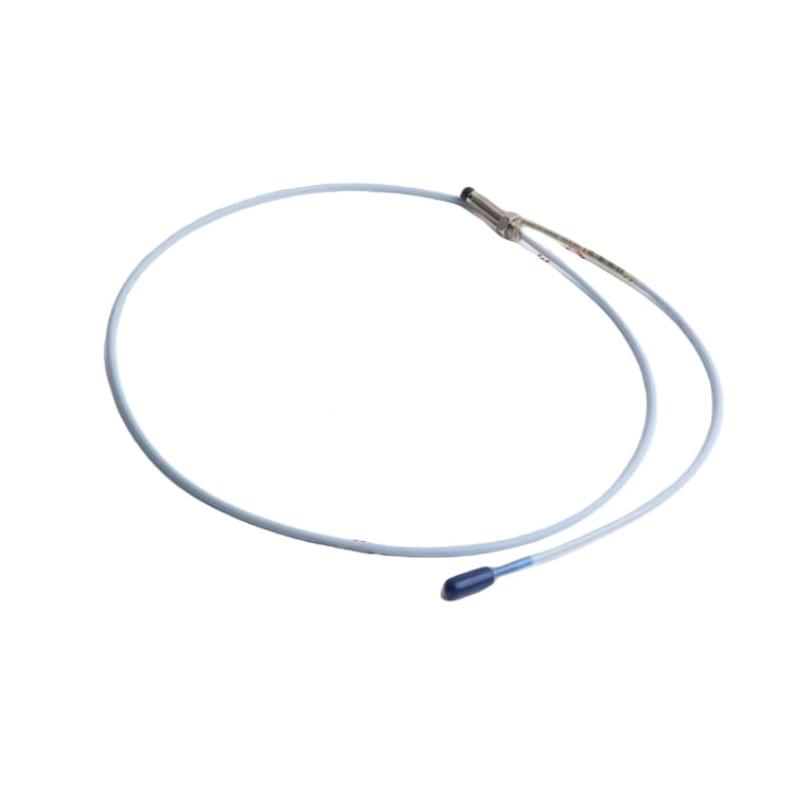

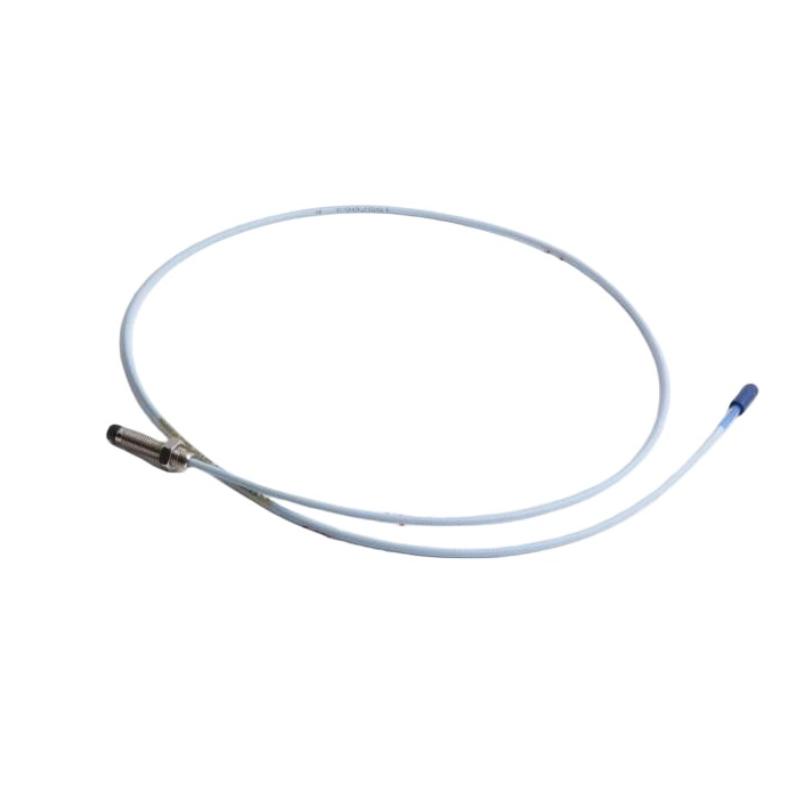

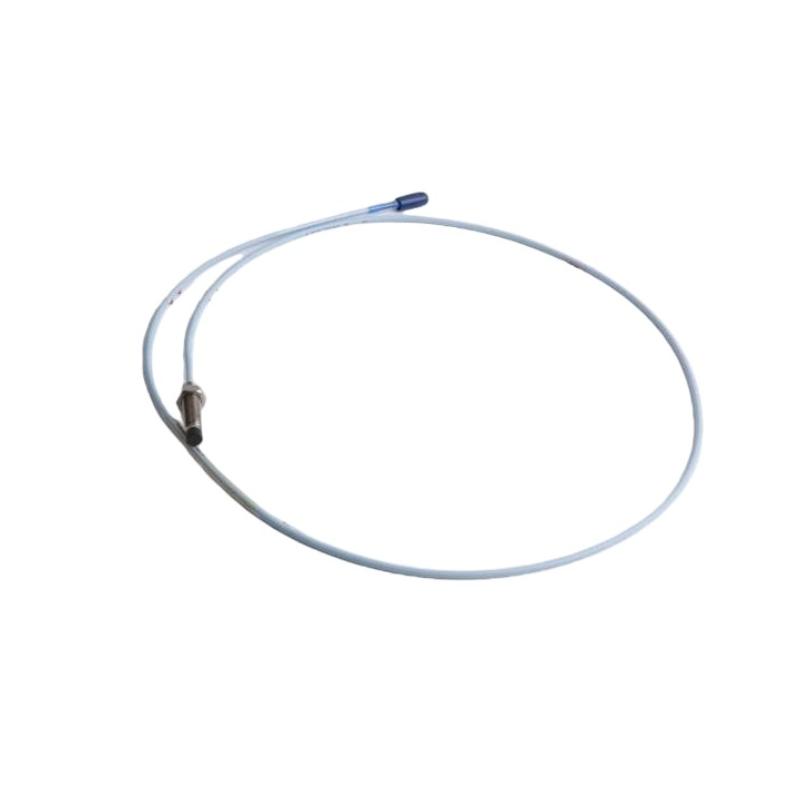

The Bently Nevada 330101-00-16-50-02-CN is a 3300 XL 8 mm Proximity Probe that uses eddy-current sensing technology for non-contact monitoring of shaft vibration, shaft position, axial displacement, and rotational speed (Keyphasor®) in critical rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System, which consists of a proximity probe, a compatible 3300 XL Proximitor® Sensor, and, where applicable, an extension cable. The complete system is factory calibrated to deliver high accuracy and reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-16-50-02-CN |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor | Non-armored |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.6 in (40.6 mm) |
| Integral Cable Length | 5.0 m (16.4 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | CN – Country-specific approvals (ATEX/IECEx and Chinese NEPSI marking) |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
