Overview

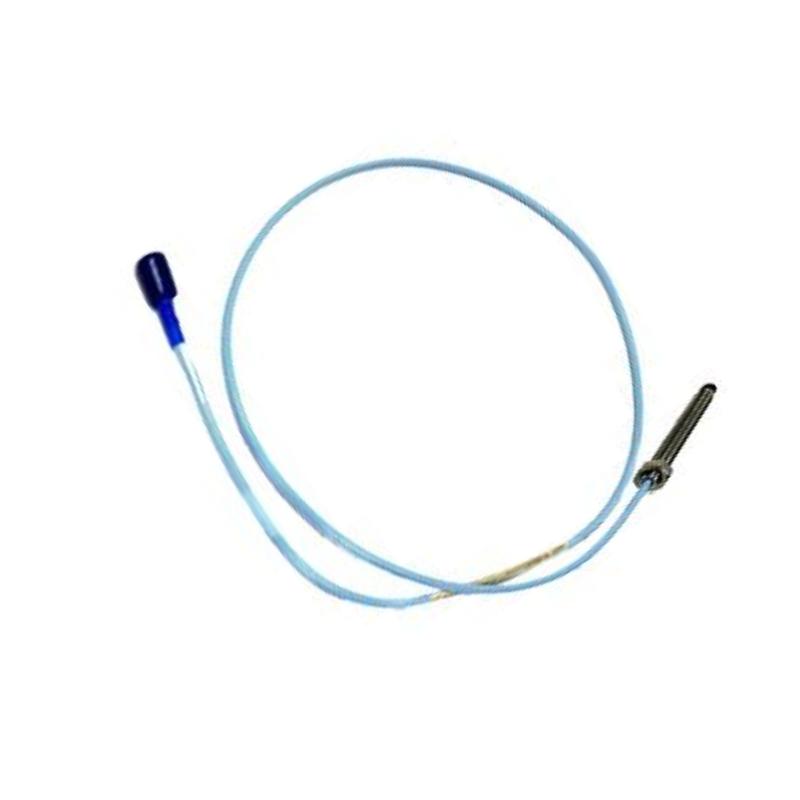

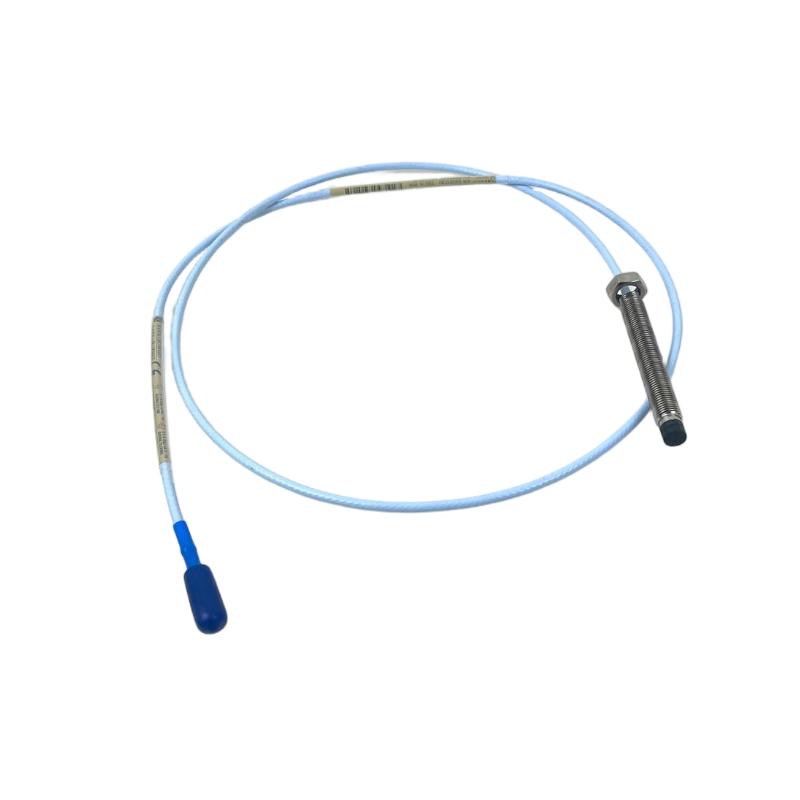

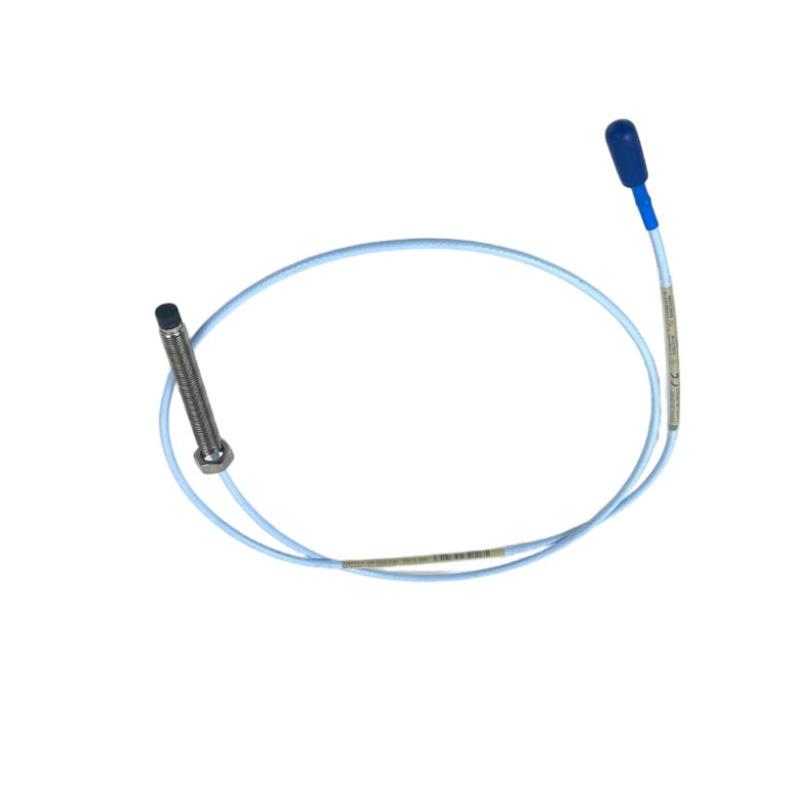

The Bently Nevada 330101-00-16-10-11-RU is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, axial displacement, and speed/Keyphasor® signals in critical rotating machinery. It forms part of the 3300 XL 8 mm Proximity Transducer System, which includes a proximity probe, a compatible extension cable (when required), and a 3300 XL Proximitor® Sensor. The complete transducer system is factory calibrated for high accuracy and long-term reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-16-10-11-RU |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor | Non-armored |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.6 in (40.6 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc® connector with connector protector |
| Cable Type | Standard cable |
| Regional Approval | RU – Russia/EAC approval |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
