Overview

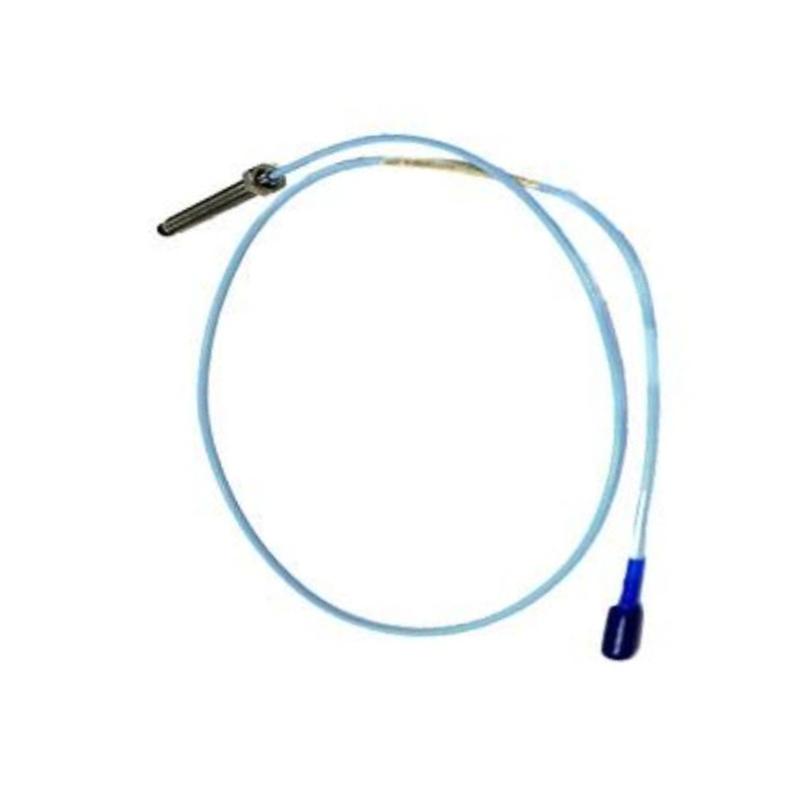

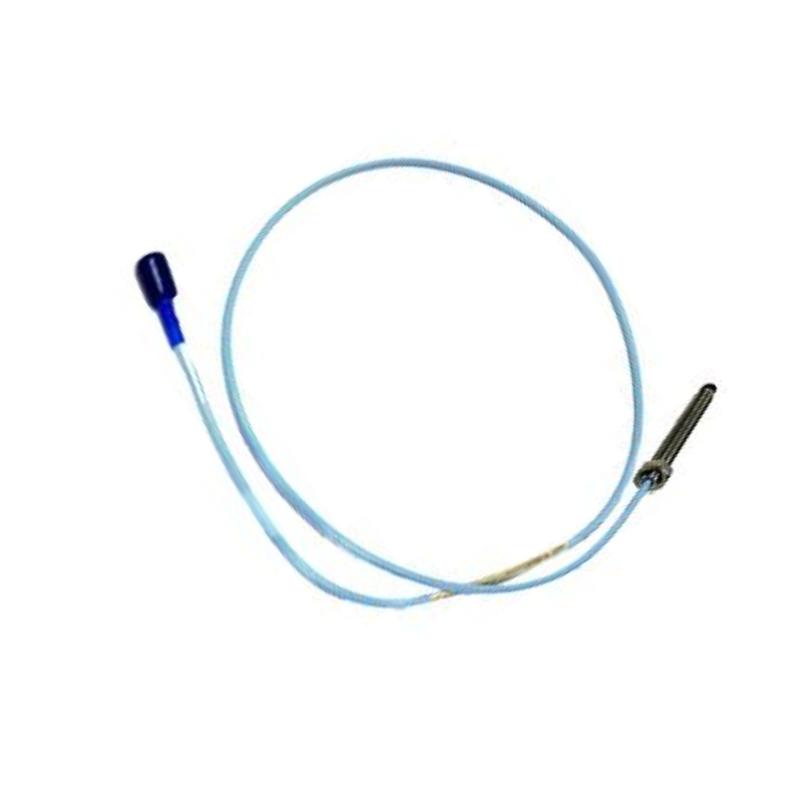

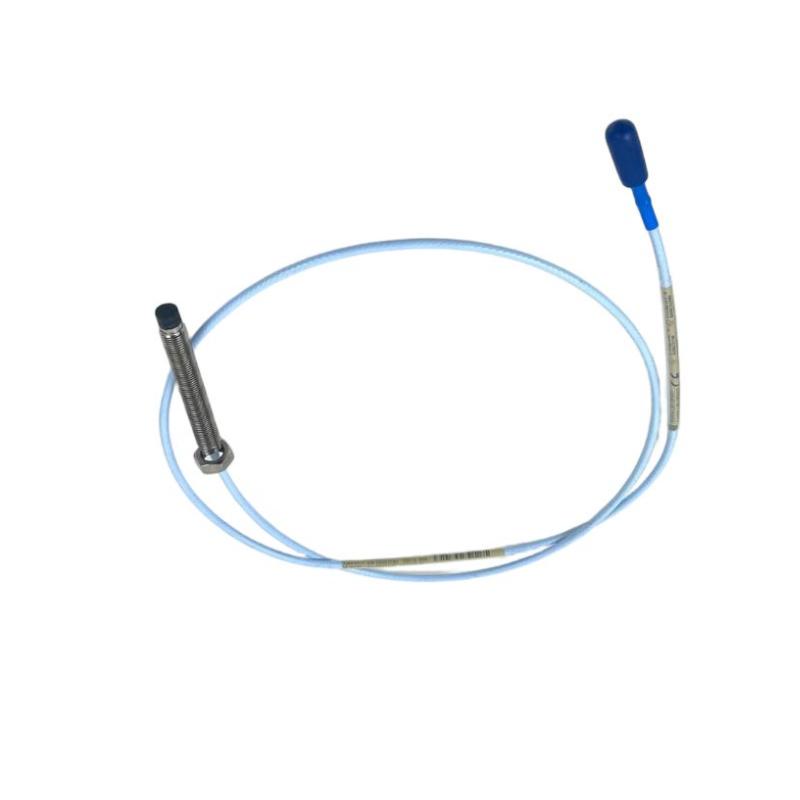

The Bently Nevada 330101-00-16-10-02-CN is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, axial displacement, and rotational speed in critical rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System, which includes a proximity probe, a compatible extension cable (when required), and a Proximitor® Sensor. The complete system is factory calibrated to provide high-accuracy machinery protection and condition monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-16-10-02-CN |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor | Without armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.6 in (40.6 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | CN – ATEX/IECEx and Chinese NEPSI hazardous-area marking |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
