Overview

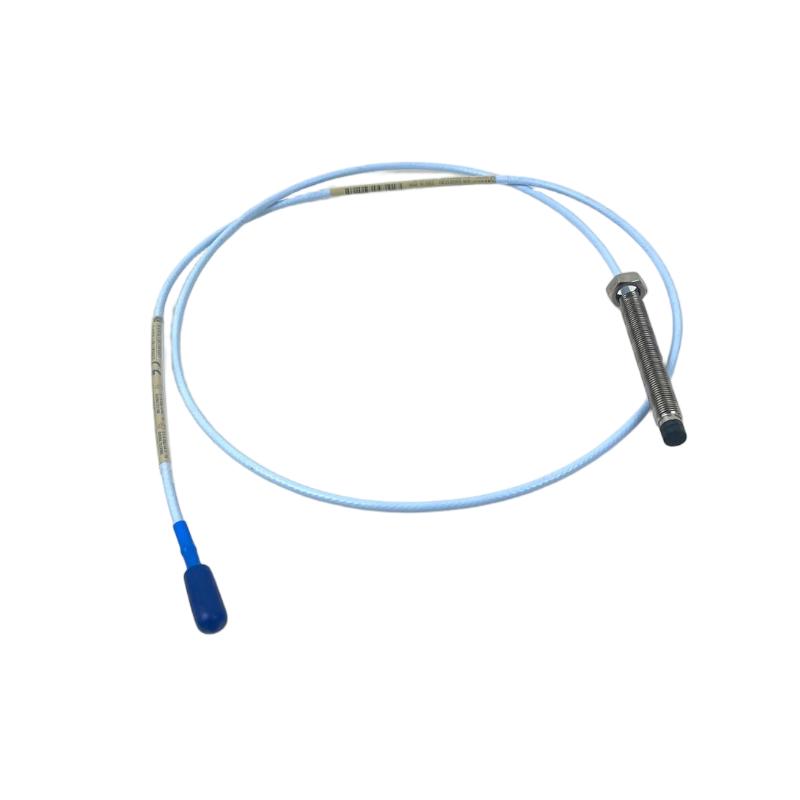

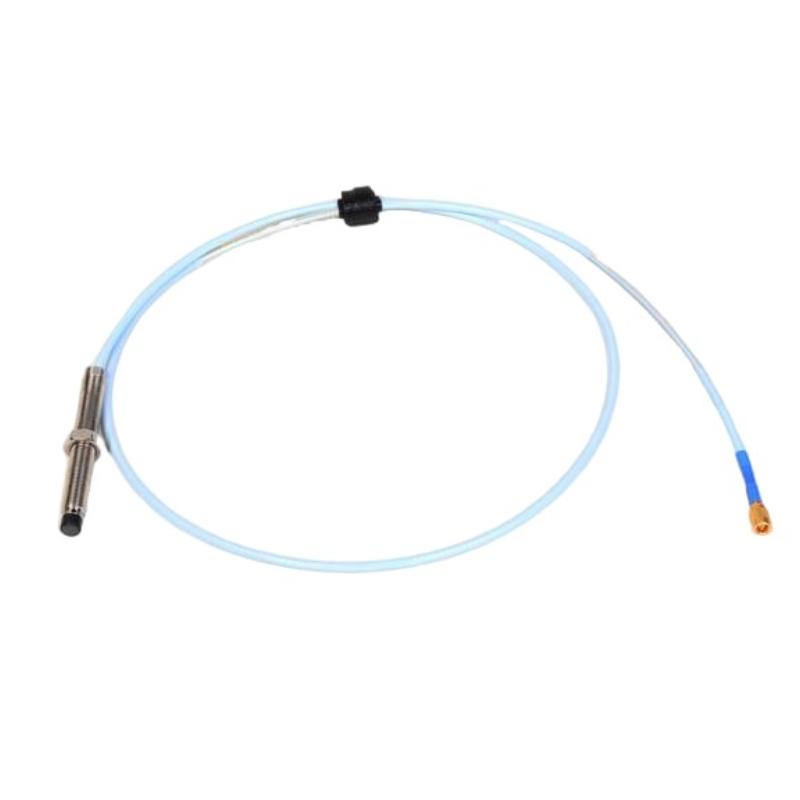

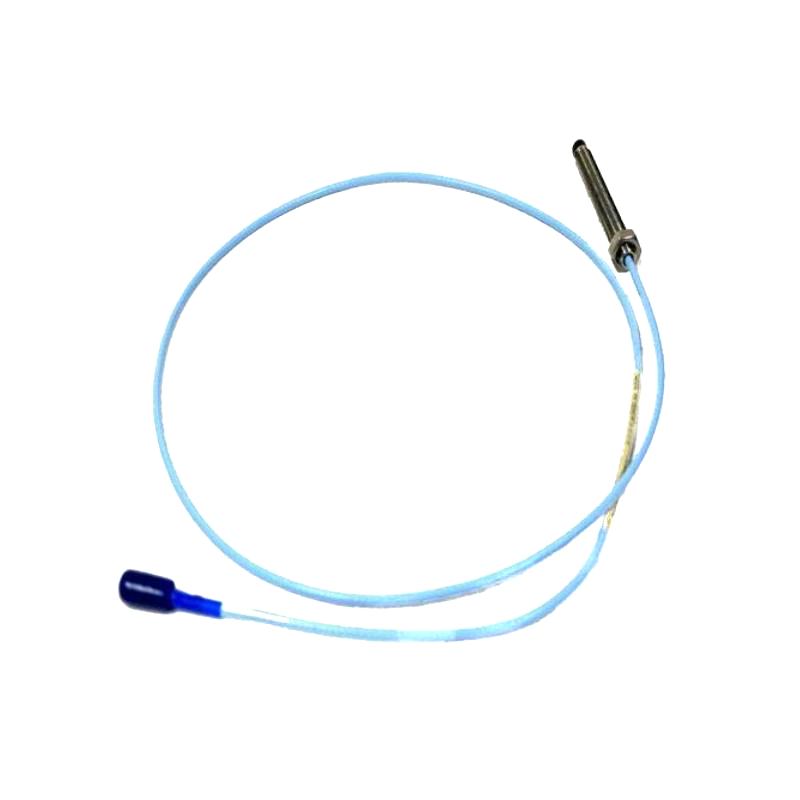

The Bently Nevada 330101-00-15-10-02-00 is a 3300 XL 8 mm Proximity Probe engineered for non-contact measurement of shaft vibration, shaft position, axial displacement, and rotational speed in critical rotating equipment. It is a component of the 3300 XL 8 mm Proximity Transducer System, which combines the probe with a compatible 330130 extension cable (when required) and a 330180 Proximitor® Sensor to provide a factory-calibrated monitoring solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-15-10-02-00 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor | Non-armored |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.5 in (38.1 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | 00 – Approval not required |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
