Overview

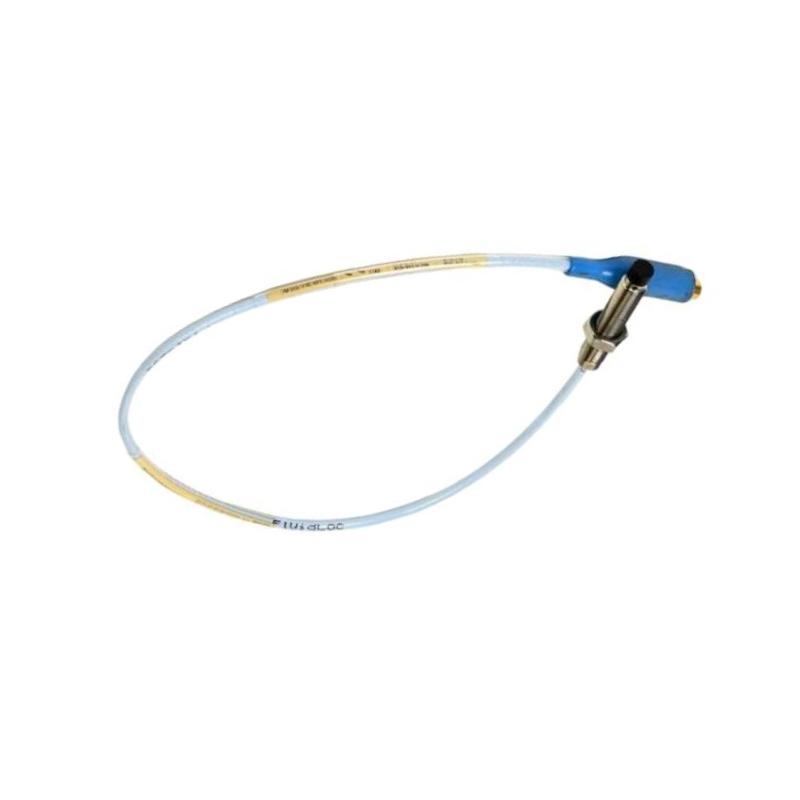

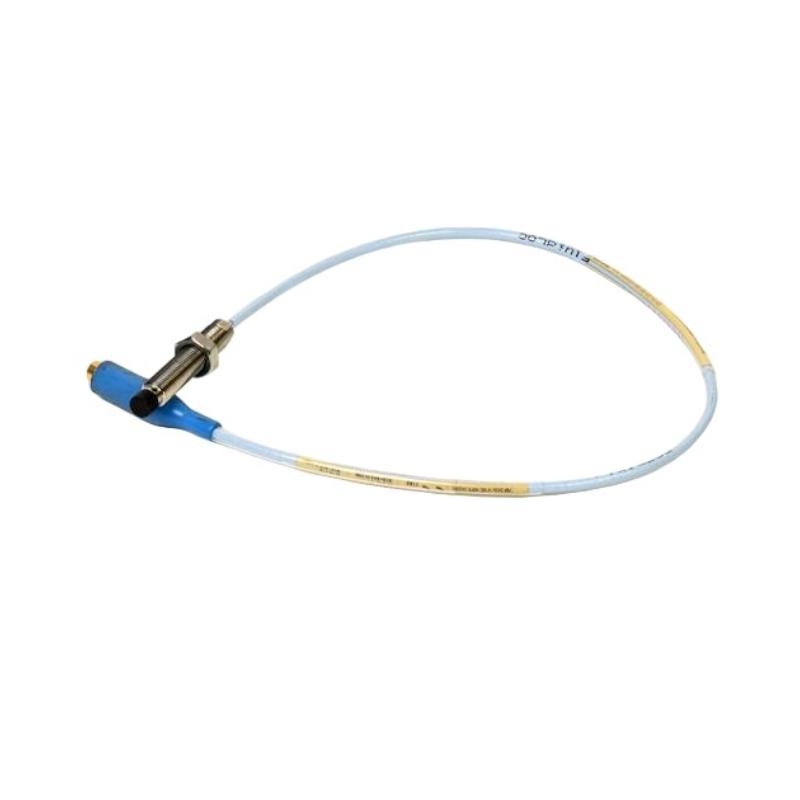

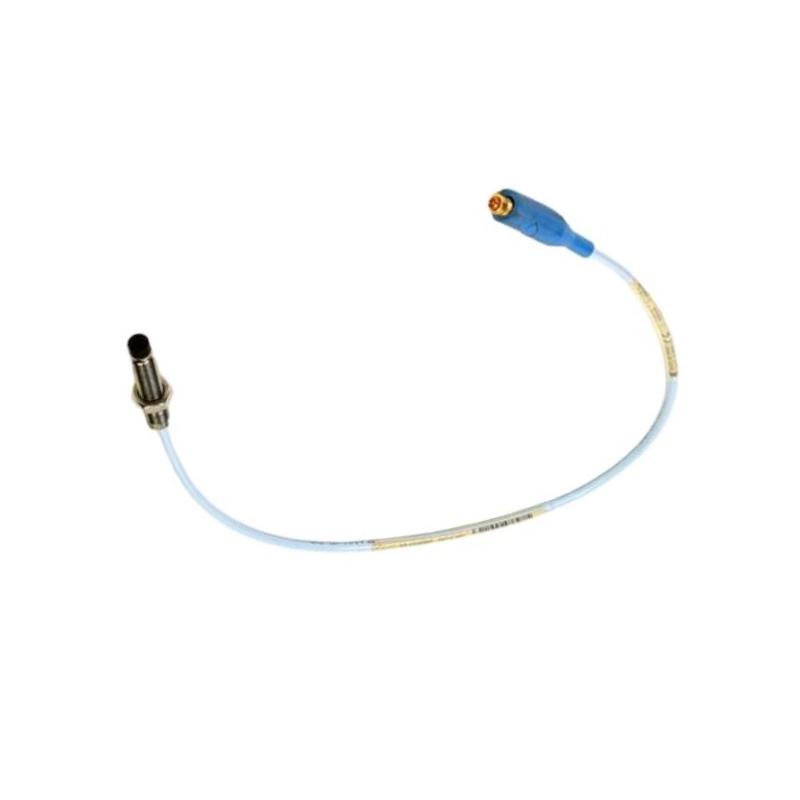

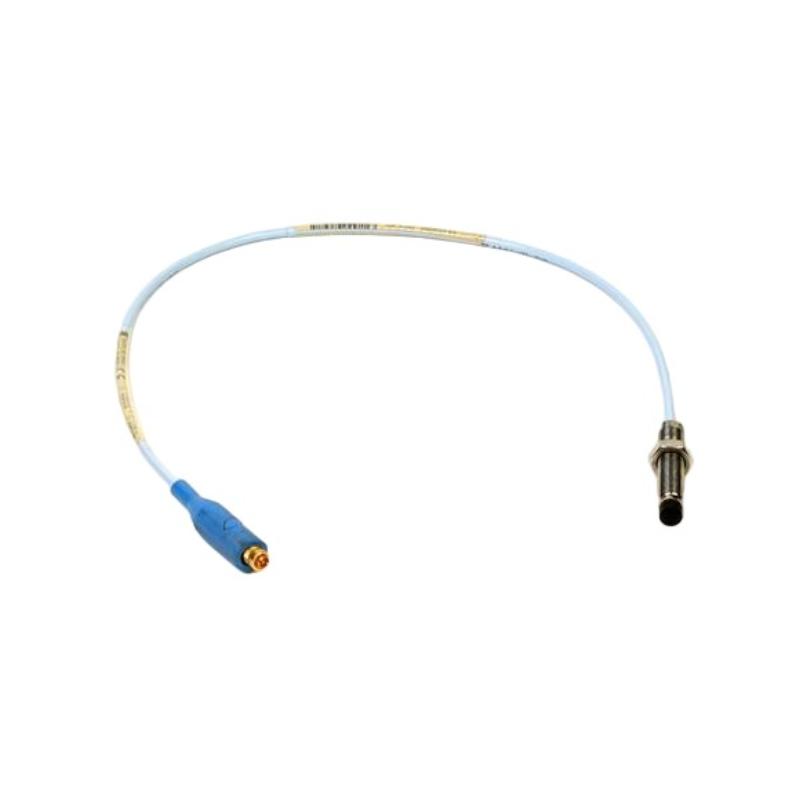

The Bently Nevada 330101-00-15-05-02-00 is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, axial displacement, and speed/Keyphasor® reference in critical rotating machinery. It is used as part of the 3300 XL 8 mm Proximity Transducer System, which includes a proximity probe, an extension cable (if required), and a Proximitor® Sensor. The complete system is factory calibrated to deliver accurate and reliable machinery condition monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-15-05-02-00 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor | Without armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.5 in (38.1 mm) |
| Integral Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | 00 – No agency approvals required |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
