Overview

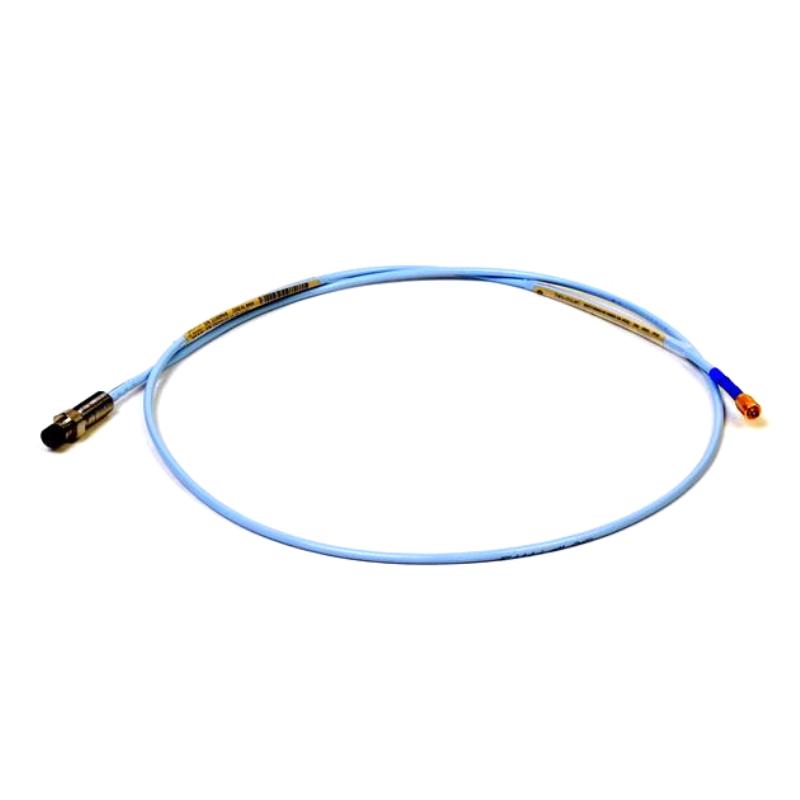

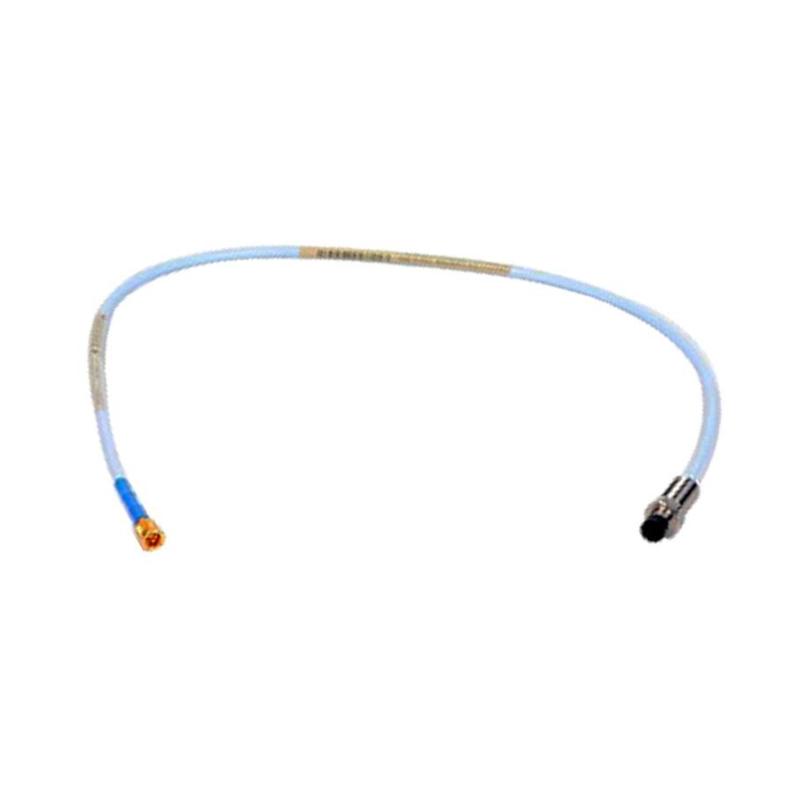

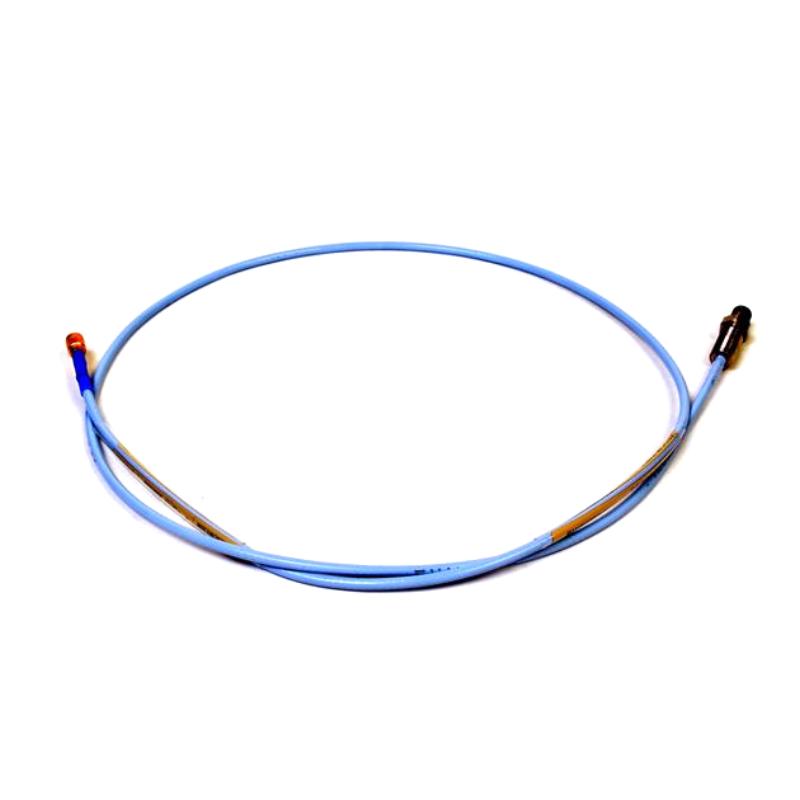

The Bently Nevada 330105-02-02-10-02-00 is a 3300 XL 8 mm Reverse Mount Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, and radial displacement in rotating machinery. Unlike standard front-mount probes, this model is installed from the back side of the mounting bracket or housing, making it ideal for applications with limited front access or specialized machine designs. It is intended for use with a compatible 3300 XL Proximitor® Sensor and extension cable as part of the 3300 XL 8 mm Proximity Transducer System.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Reverse Mount Eddy-Current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330105-02-02-10-02-00 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF reverse mount |
| Mounting Style | Reverse mount |
| Unthreaded Length | 5 mm (Option 02) |
| Case Length | 30 mm (Option 02) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard 75 Ω cable |
| Agency Approval | 00 – Standard approval (no additional hazardous-area certification) |
