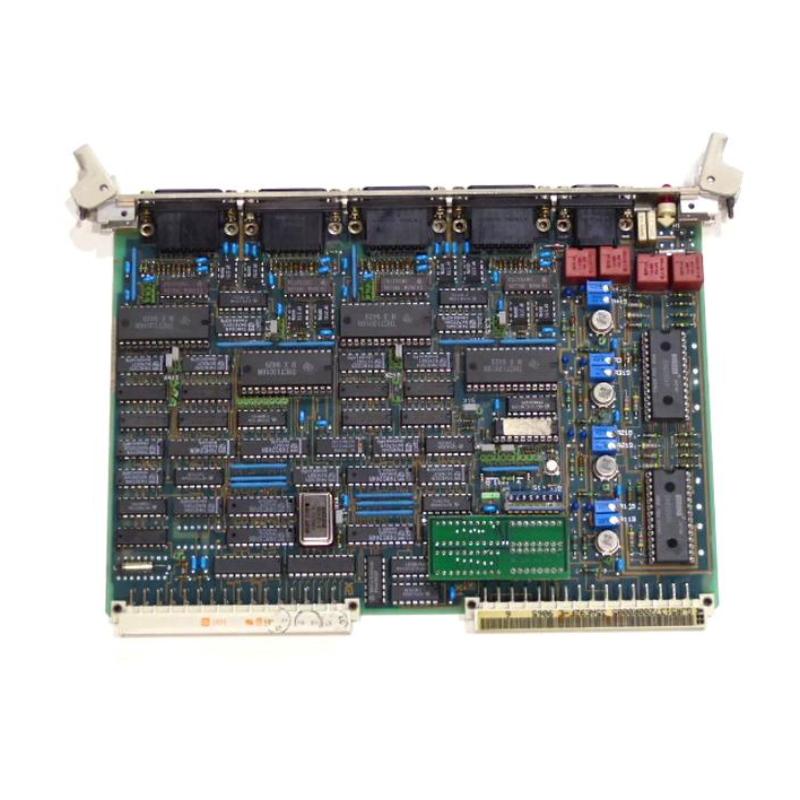

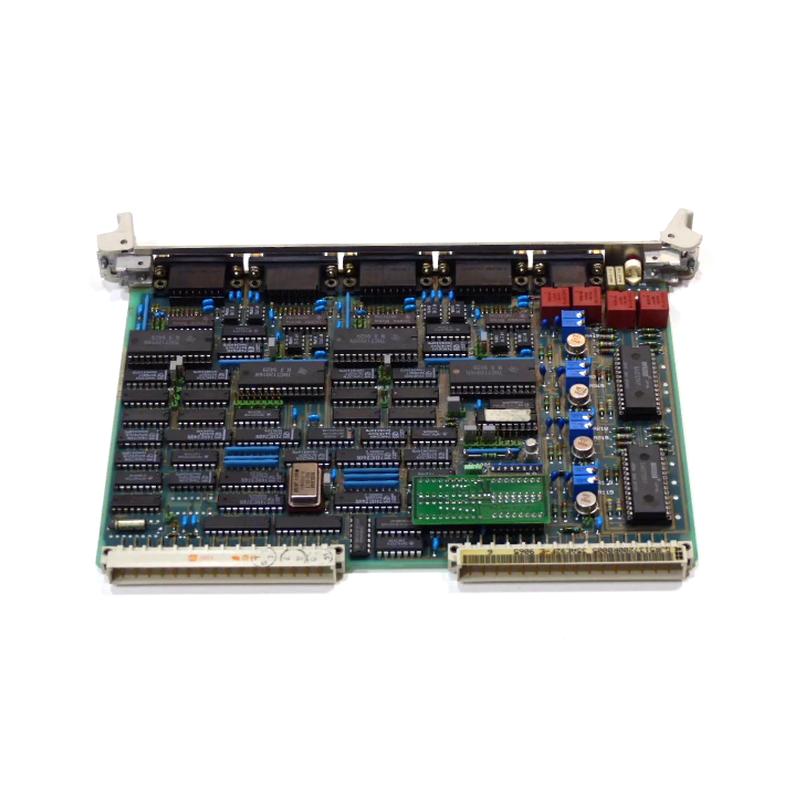

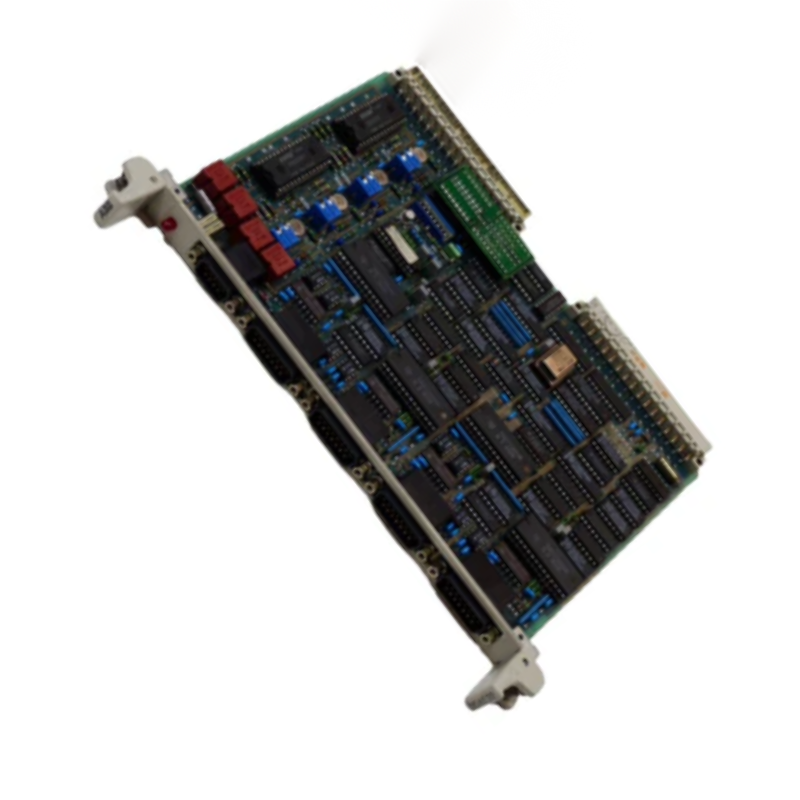

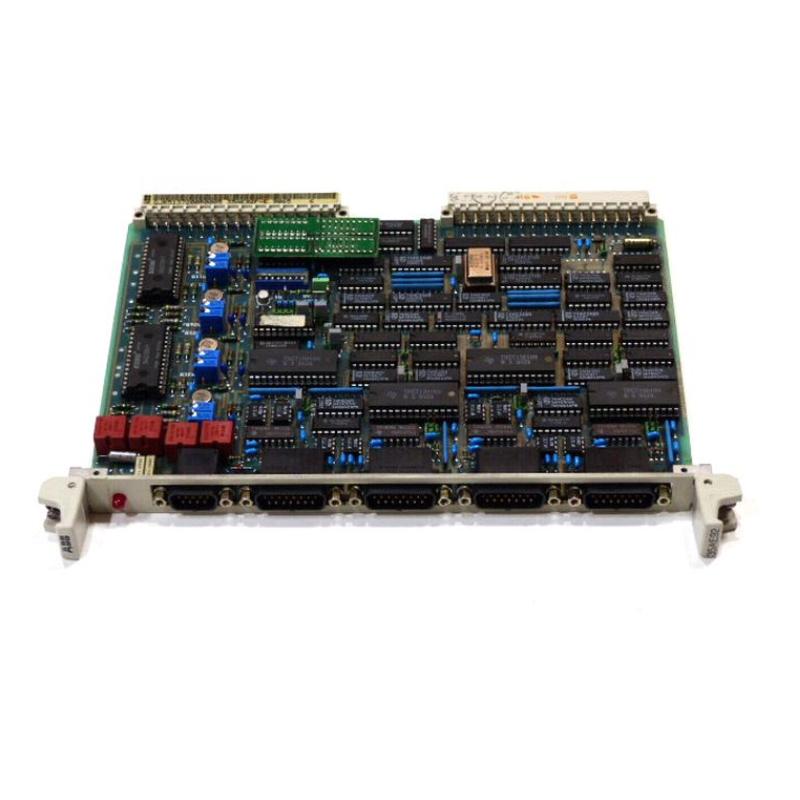

ABB 35AE92F-E GJR5137200R0005 4-channel Axis Module

Brand:ABB PLC
Item No.:35AE92F-E GJR5137200R0005
Product Origin:USA
Product Dimensions:279 mm × 203 mm × 25 mm
Product Weight:0.4kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

35AE92F-E GJR5137200R0005-235AE92F-E GJR5137200R0005-335AE92F-E GJR5137200R0005-435AE92F-E GJR5137200R0005

Introduction

The ABB 35AE92F‑E GJR5137200R0005 4‑Channel Axis Module is a high‑performance motion control unit engineered for advanced industrial automation systems. It provides coordinated control over four independent motion axes, making it ideal for robotics, multi‑axis machinery, CNC systems, and high‑speed automated processes. Designed to integrate seamlessly within ABB modular automation platforms, this axis module delivers precise motion handling, robust diagnostics, and real‑time responsiveness essential for complex manufacturing and motion‑intensive applications.

Technical Specifications

SpecificationDetails
Model35AE92F‑E (GJR5137200R0005)
Product Type4‑Channel Axis Module
ManufacturerABB
Control Channels4 independent motion axes
Power Input85–264 VAC
Output Supply24 V DC for module electronics
Power HandlingUp to 500 W per axis (system dependent)
EfficiencyApprox. 90 %+
Protection FeaturesOvervoltage, undervoltage, overcurrent, short‑circuit safeguards
Operating Temperature−10 °C to +55 °C
MountingRack or panel integration in control cabinet
DimensionsApprox. 279 mm × 203 mm × 25 mm
Weight~0.4 kg
System CompatibilityABB modular automation systems (e.g., Procontic, AC500 series with motion expansion)


Applications

  • Multi‑Axis Motion Control: Simultaneous management of four axes in coordinated motion systems

  • Robotics: Drives synchronized movement for robotic arms, gantries, and articulated devices

  • Machine Tools: Enables precision control in milling, drilling, and cutting operations

  • High‑Speed Assembly Lines: Handles rapid, coordinated motion for packaging, labeling, and handling equipment

  • Automated Material Handling: Supports conveyors, positioners, and indexing tables in logistics and manufacturing

The 4‑Channel Axis Module is engineered for environments where precision, repeatability, and motion coordination are critical to productivity and quality.


Applications

  • Multi‑Axis Motion Control: Simultaneous management of four axes in coordinated motion systems

  • Robotics: Drives synchronized movement for robotic arms, gantries, and articulated devices

  • Machine Tools: Enables precision control in milling, drilling, and cutting operations

  • High‑Speed Assembly Lines: Handles rapid, coordinated motion for packaging, labeling, and handling equipment

  • Automated Material Handling: Supports conveyors, positioners, and indexing tables in logistics and manufacturing

The 4‑Channel Axis Module is engineered for environments where precision, repeatability, and motion coordination are critical to productivity and quality.


Technical FAQs

  1. What does this module control?
    It manages coordinated motion across four independent axes in industrial automation systems.

  2. Is it compatible with standard ABB automation platforms?
    Yes, it integrates with ABB modular automation systems and motion control architectures.

  3. How many axes can it drive simultaneously?
    Four independent motion axes.

  4. What power supply does it require?
    It accepts a wide AC input range (85–264 VAC) with internal DC supply for module electronics.

  5. What protection features are included?
    Overvoltage, undervoltage, overcurrent, and short‑circuit protections are integrated for reliable operation.

  6. Can it be used in robotics applications?
    Yes, it is well suited for robotics and synchronized motion control tasks.

  7. Does it support encoder feedback?
    It supports standard motion feedback interfaces when paired with appropriate encoder modules.

  8. What environments is it suitable for?
    Industrial automation environments such as factories, processing plants, and assembly lines.

  9. Is it suitable for CNC or machining applications?
    Yes, its precise motion control capabilities make it suitable for CNC and advanced machine tools.

  10. Why choose this module over single‑axis controllers?
    It consolidates multiple axes into a single, coordinated module, reducing wiring, space, and system complexity while improving synchronization.
