Frequently Asked Questions

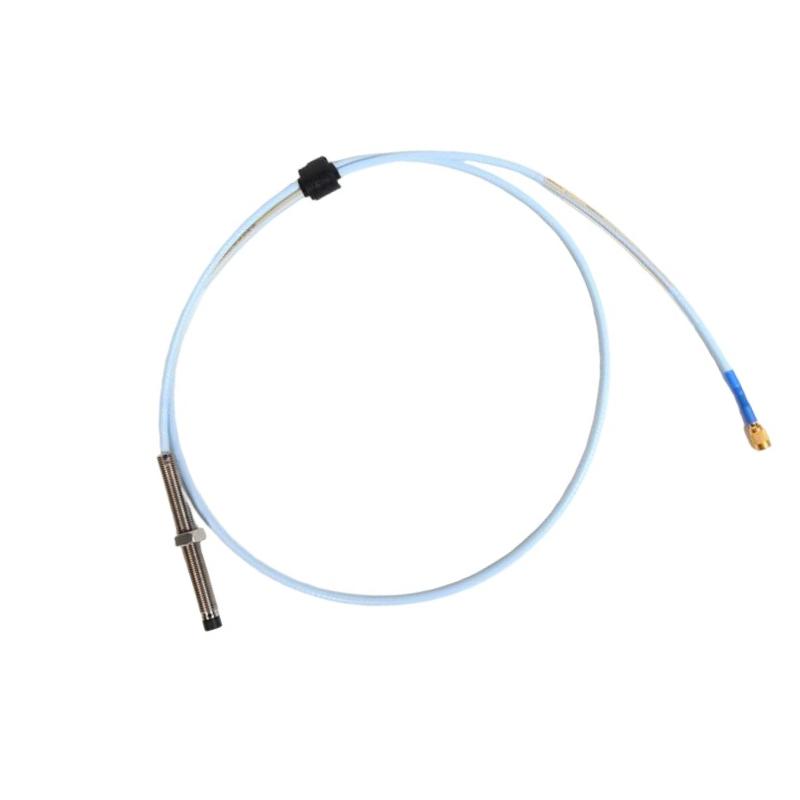

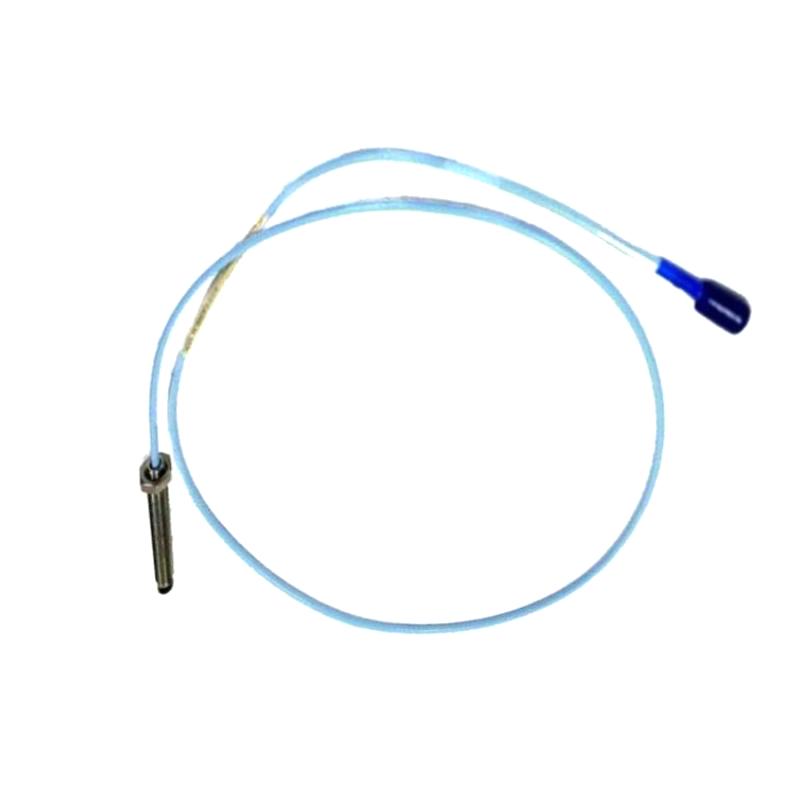

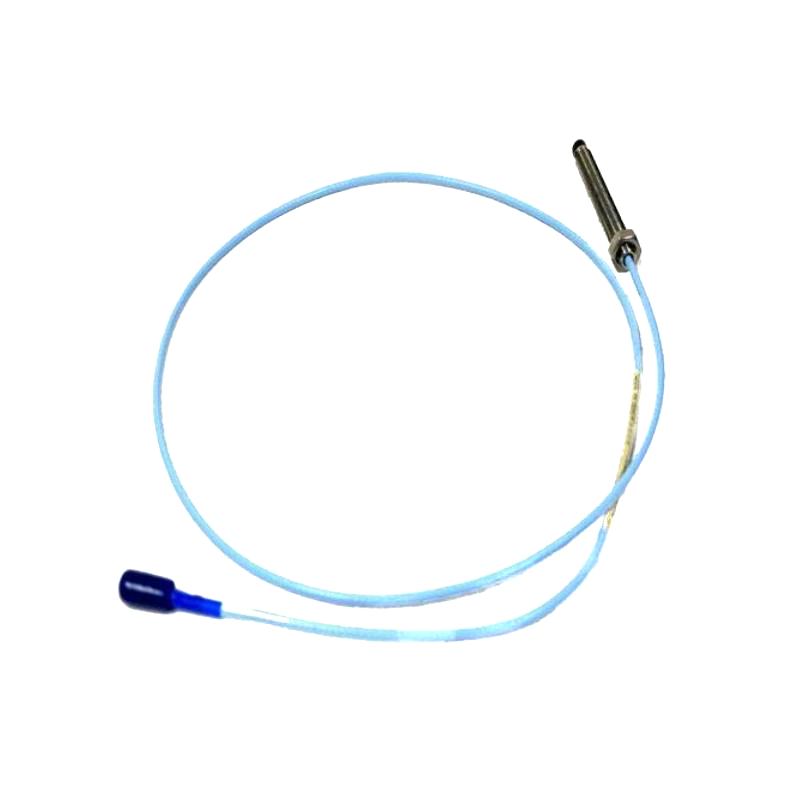

1. What is the 330101-00-35-05-02-00 used for?

It is used for non-contact measurement of shaft vibration, shaft position, and displacement in rotating machinery.

2. Which monitoring system is it compatible with?

It is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System.

3. What is the probe diameter?

The sensing tip diameter is 8 mm.

4. What does the "35" option indicate?

It specifies an overall probe case length of 3.5 inches.

5. What cable length is included?

The 05 configuration specifies a 0.5 m (1.6 ft) integral cable.

6. What connector does it use?

It uses a Miniature coaxial ClickLoc® connector with a standard cable.

7. What does the "00" approval option indicate?

The 00 option indicates the standard approval configuration, without CSA, ATEX, or IECEx hazardous-area certifications.

8. Which industries commonly use this probe?

It is commonly used in power generation, oil and gas, petrochemical, mining, pulp and paper, and other industrial processing industries.

9. Can it be used as a replacement probe?

Yes. It is suitable as a replacement probe for compatible Bently Nevada 3300 XL proximity transducer systems.

10. What are the advantages of this probe?

It provides accurate, stable, non-contact shaft motion measurements for machinery protection, condition monitoring, and predictive maintenance.
