Reliable PLC Controller for Industrial Automation

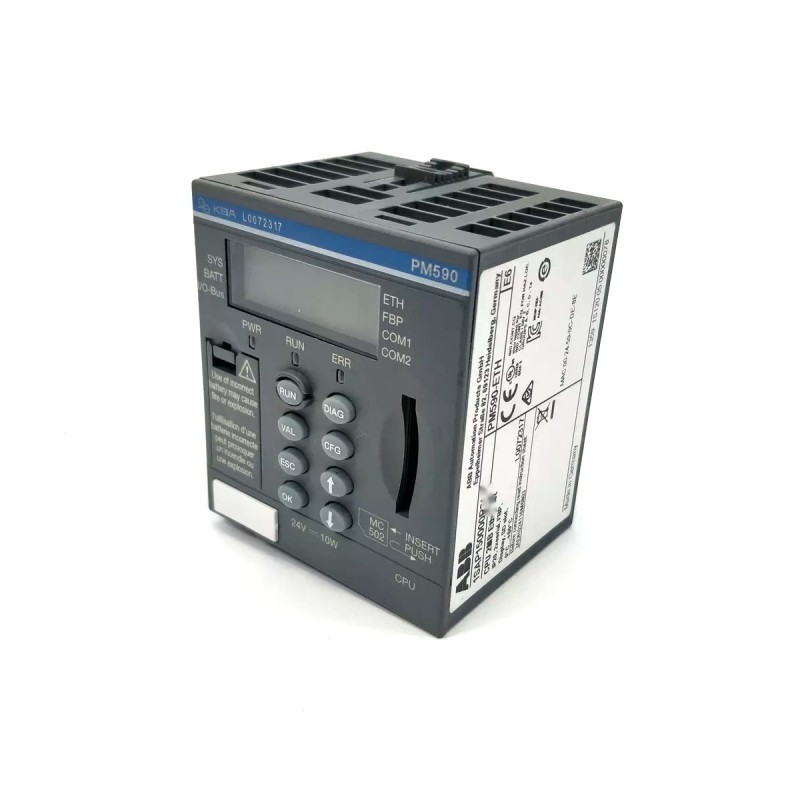

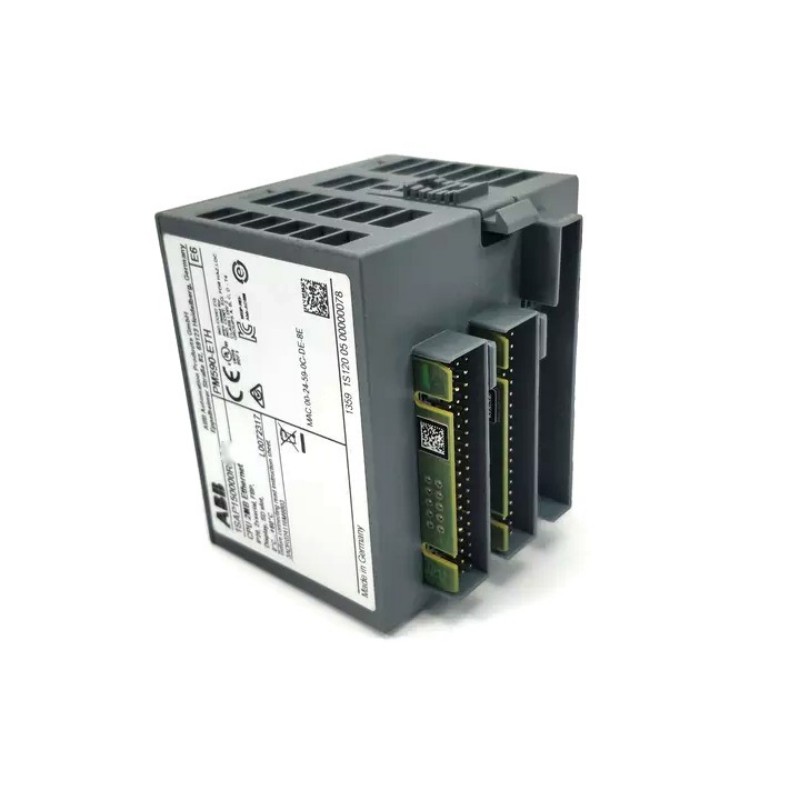

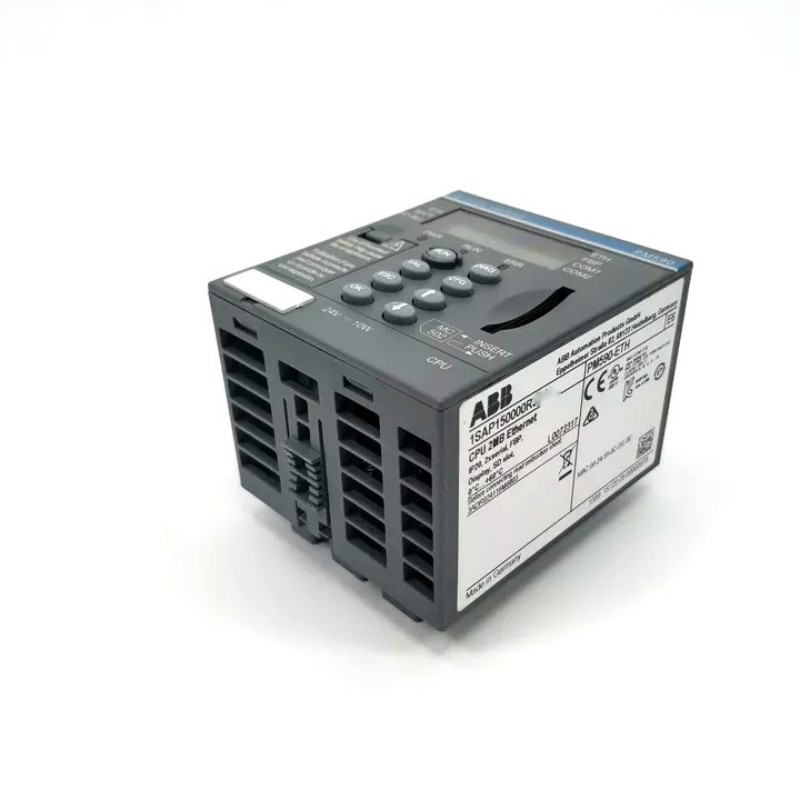

The ABB PM590-ETH 1SAP150000R0170 AC500 Processor Module is a programmable logic controller (PLC) CPU designed for the ABB AC500 automation platform. It provides reliable processing performance and integrated communication capabilities for machine control, process automation, and industrial production systems.
The module features Ethernet connectivity, dual serial communication interfaces, an FBP interface, an integrated LCD display, and 2 MB of program memory, making it suitable for a wide range of automation applications requiring dependable control and flexible networking.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Processor Module |
| Series | AC500 |
| Model | PM590-ETH |
| Product Number | 1SAP150000R0170 |
| Program Memory | 2 MB |
| User Data Memory | 3 MB RAM |
| Communication Interfaces | Ethernet, 2 × Serial, FBP |
| Display | Integrated LCD |
| Power Supply | 24 V DC |
| Operating Voltage | 20.4–28.8 V DC |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Approximate Dimensions | 76 × 67.5 × 62 mm |
| Approximate Weight | 0.137 kg |
Frequently Asked Questions
1. What is the primary function of the PM590-ETH?
It serves as the CPU of an ABB AC500 PLC system, executing control logic and coordinating communication between connected devices.
2. Does the processor include Ethernet?
Yes. It features an integrated Ethernet interface for programming, communication, and diagnostics.
3. How much memory does it provide?
The processor includes 2 MB of program memory and 3 MB of RAM for user data.
4. Which communication interfaces are available?
It includes one Ethernet interface, two serial communication interfaces, and one FBP interface.
5. What power supply is required?
The module operates on a nominal 24 V DC power supply.
6. Can additional I/O modules be connected?
Yes. It is designed to work with ABB AC500 expansion and I/O modules.
7. Is local status monitoring available?
Yes. The integrated LCD display provides operating status and diagnostic information.
8. Which industries commonly use this processor?
It is widely used in manufacturing, utilities, infrastructure, water treatment, and industrial automation systems.
9. What is the enclosure protection rating?
The processor has an IP20 protection rating and is intended for installation inside electrical control cabinets.
10. Is it suitable for continuous industrial operation?
Yes. It is designed for long-term operation in industrial automation environments.
