Introduction | Industrial-Grade Precision for Critical Machinery Monitoring

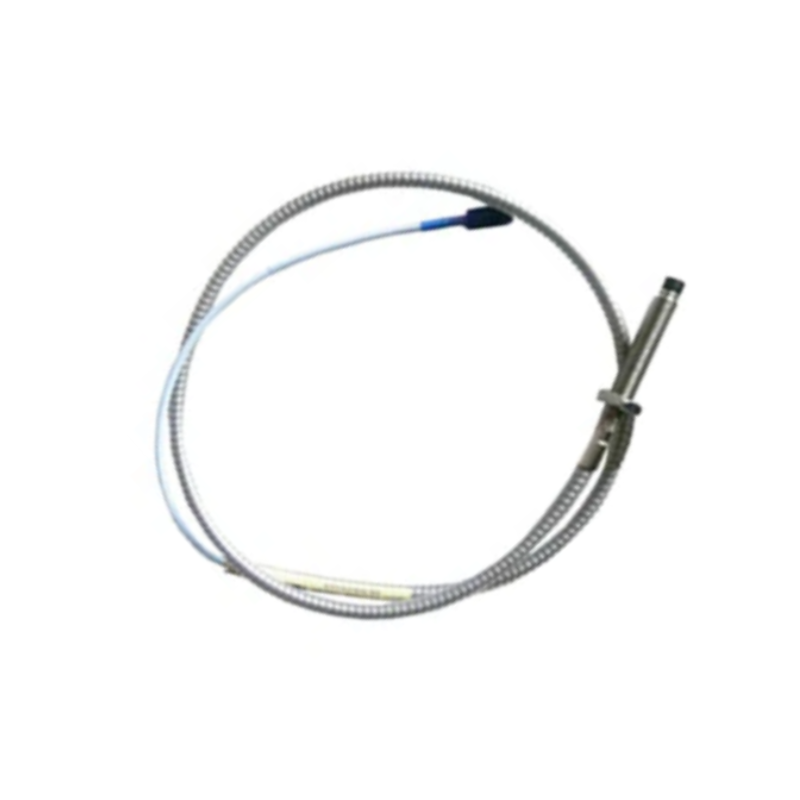

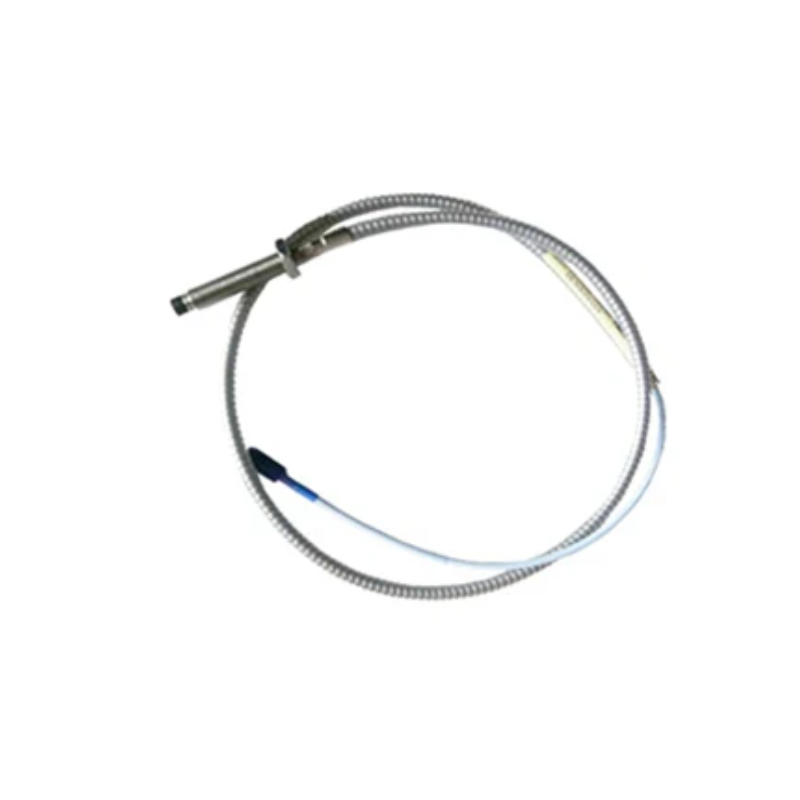

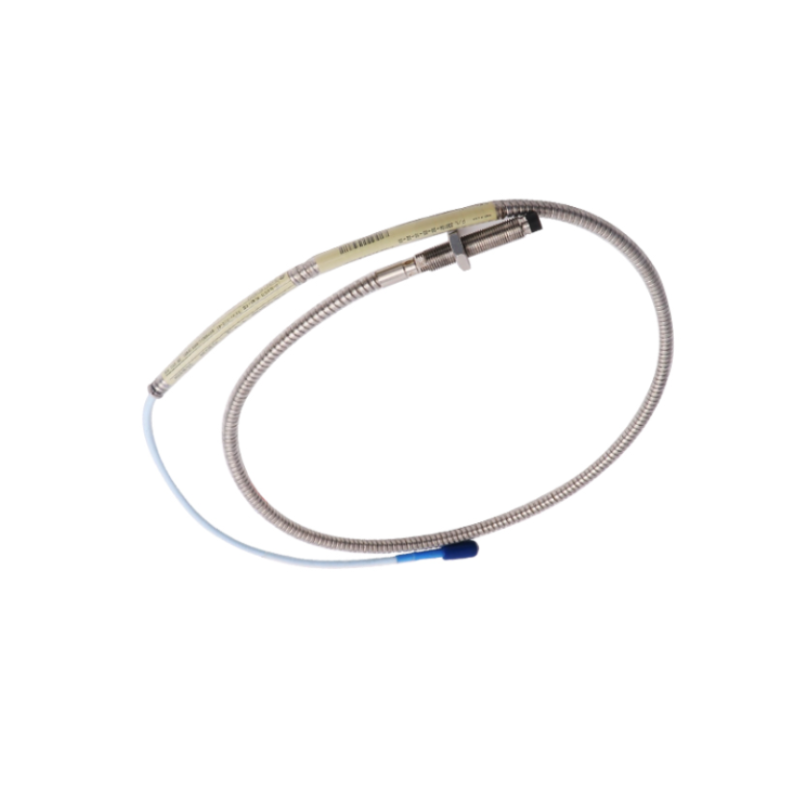

The Bently Nevada 330104-00-02-10-01-00 3300 XL Proximity Probe is a high-reliability eddy current sensor designed for accurate measurement of shaft vibration, axial position, and radial displacement in rotating machinery. As part of the globally established 3300 XL 8 mm proximity transducer system, this probe delivers consistent, drift-free performance in demanding industrial environments such as power plants, oil & gas facilities, and heavy manufacturing operations.
Engineered for seamless integration with Bently Nevada Proximitor systems, it provides non-contact measurement with high linear accuracy, enabling real-time machinery protection and predictive maintenance strategies.
Technical Specifications | Mechanical Design & Electrical Performance
| Parameter | Specification |
|---|
| Model | 330104-00-02-10-01-00 |
| Series | 3300 XL (8 mm Proximity Probe System) |
| Type | Eddy Current Proximity Probe |
| Measurement Function | Shaft vibration, radial displacement, axial position |
| System Compatibility | Bently Nevada 3300 XL Proximitor Sensor |
| Output Signal | Proportional voltage (via proximitor system) |
| Operating Principle | Non-contact eddy current sensing |
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 × 1 (typical 330104 configuration) |
| Cable Type | Integral coaxial probe cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Operating Temperature | -52°C to +177°C (system dependent) |
Applications | Where This Probe Delivers Maximum Value
The 330104-00-02-10-01-00 probe is widely used in mission-critical rotating equipment monitoring systems:
-
Steam and gas turbine vibration monitoring
-
Centrifugal compressor shaft displacement measurement
-
Industrial pump bearing condition monitoring
-
Generator rotor axial position and vibration tracking
-
Oil & gas pipeline and refinery machinery protection systems
-
Petrochemical process rotating equipment diagnostics
-
Power generation turbine supervisory instrumentation (TSI systems)
Its ability to provide continuous, real-time displacement data supports early fault detection and reduces unplanned downtime.
Advantages | Why Industry Engineers Rely on It
-
High-accuracy eddy current sensing for reliable vibration data
-
Stable long-term performance with minimal calibration drift
-
Strong immunity to electromagnetic interference (EMI/RFI)
-
Fully compatible with Bently Nevada 3300 XL monitoring systems
-
Rugged industrial design suitable for harsh environments
-
Modular architecture enables easy maintenance and replacement
-
Proven reliability in continuous 24/7 operation
-
Widely used in global critical infrastructure industries
This probe is engineered for environments where measurement accuracy directly impacts safety, uptime, and operational efficiency.
Technical FAQs | Practical Engineering Insights
1. What does this proximity probe measure?
It measures shaft vibration, radial displacement, and axial position in rotating machinery.
2. What system is it compatible with?
It is designed for use with the Bently Nevada 3300 XL Proximitor Sensor system.
3. What is the measurement principle?
It uses eddy current non-contact sensing technology.
4. Can it measure both static and dynamic signals?
Yes, it supports both position (static) and vibration (dynamic) measurement.
5. Is it suitable for turbine applications?
Yes, it is widely used in steam and gas turbine monitoring systems.
6. What material does it measure?
Conductive metallic surfaces such as steel shafts.
7. Does it require calibration?
Yes, system-level calibration is required with matched components.
8. Can it operate in harsh environments?
Yes, it is designed for high temperature, vibration, and industrial EMI conditions.
9. Is it interchangeable with other probes?
Only within compatible 3300 XL system configurations and matched lengths.
10. What industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy manufacturing industries.
