Precision Shaft Monitoring for Critical Industrial Machinery

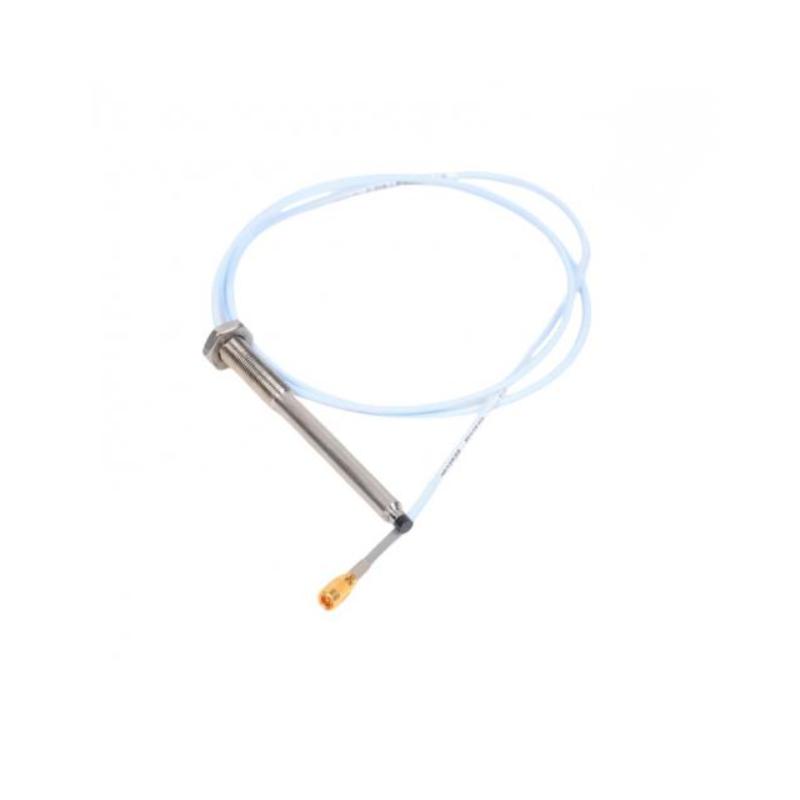

The Bently Nevada 330104-08-15-10-02-05 8 mm 3300 XL Eddy-Current Proximity Probe is a high-performance non-contact sensor designed for accurate measurement of shaft vibration, radial displacement, and position in rotating machinery. As part of the proven 3300 XL series, it delivers stable signal output and long-term reliability for machinery protection and condition monitoring systems.
This probe is widely used in industrial environments where continuous vibration monitoring is essential for maintaining equipment health, preventing failures, and ensuring safe plant operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Proximity Probe |
| Series | 3300 XL |
| Model | 330104-08-15-10-02-05 |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 8 mm |
| Primary Measurements | Shaft vibration, displacement, position |
| Housing Material | Stainless steel |
| Probe Tip Material | Industrial-grade polymer composite |
| Installation Method | Threaded mounting system |
| Operating Principle | Electromagnetic eddy-current field |
| System Compatibility | 3300 XL transducer system |
| Environmental Resistance | Oil, dust, vibration resistant |
| EMI Immunity | High resistance to electrical interference |
| Approximate Dimensions | 150 × 8 × 8 mm |
| Approximate Weight | 0.2–0.35 kg |
