High-Reliability Condition Monitoring for Industrial Rotating Assets

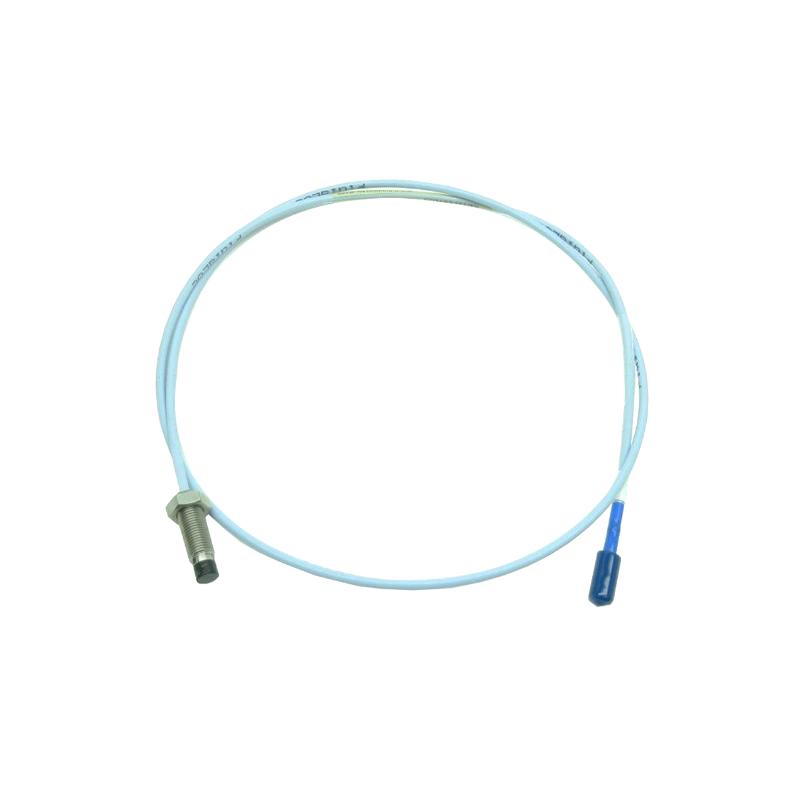

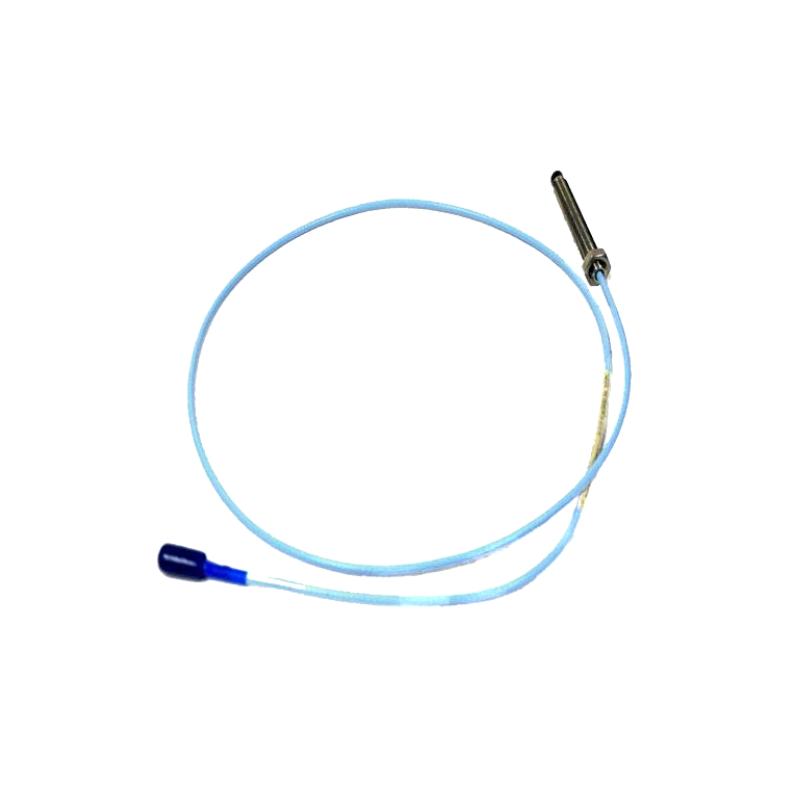

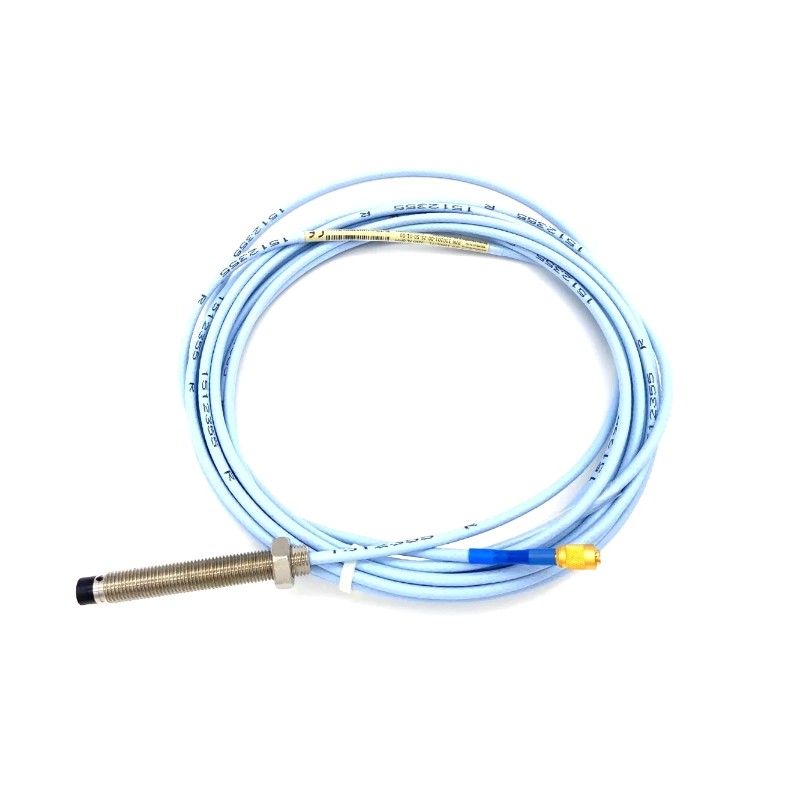

The Bently Nevada 330102-00-79-05-02-05 3300 XL 8 mm Proximity Probe is a non-contact eddy-current sensor designed for precise measurement of shaft vibration, radial displacement, and position in rotating machinery. As part of the trusted 3300 XL proximity transducer system, it delivers stable signal output, strong noise immunity, and long-term measurement reliability in demanding industrial environments.
This configuration (…00-79-05-02-05) is typically associated with a standard 8 mm probe body design, ~7.9-inch class mechanical length variant, 1.0-meter system cable, ClickLoc connector, and CSA/ATEX/IECEx certified option (05). According to 3300 XL ordering structure references, the “79” family is among the longer probe configurations used in deep mounting applications where extended reach into bearing housings or machine casings is required.
Built with stainless steel housing and a PPS sensing tip, it is engineered for continuous operation in harsh environments involving vibration, thermal cycling, and industrial contamination.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-79-05-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | ~7.9 in class configuration |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| Certification | CSA / ATEX / IECEx (05 option) |
| Weight | Approx. 0.2–0.45 kg (configuration dependent) |
Industrial Applications
The 330102-00-79-05-02-05 probe is widely used in industries where continuous monitoring of rotating machinery is critical for safety and production continuity.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance monitoring
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas processing facilities
-
Petrochemical plants
-
Power generation stations
-
Heavy industrial rotating equipment systems
It enables continuous tracking of shaft behavior, helping detect early-stage faults such as imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and reducing unexpected downtime.
Key Advantages
High-Accuracy Non-Contact Measurement
Eddy-current sensing ensures stable and repeatable vibration and displacement measurement.
Extended Reach Design
The long-case configuration supports deep installation requirements in complex machinery.
Certified Industrial Safety Option
The 05 configuration supports international compliance standards for hazardous environments.
Rugged Mechanical Construction
Stainless steel body and PPS tip provide durability under vibration, heat, and corrosion.
Predictive Maintenance Enablement
Supports early fault detection and condition-based monitoring strategies.
Full 3300 XL Compatibility
Seamless integration with Proximitor sensors, extension cables, and monitoring modules.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “79” configuration represent?
It indicates a long-case probe geometry used for deeper mechanical installation.
Q4: What is the system cable length?
It uses a 1.0-meter cable assembly.
Q5: What does the “05” option mean?
It represents certified configuration (CSA, ATEX, IECEx approvals).
Q6: Which industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
Q7: Does it require physical contact with the shaft?
No, it operates using non-contact measurement.
Q8: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q9: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature conditions.
Q10: Is it compatible within the 3300 XL system?
Yes, it is fully interchangeable within the 3300 XL architecture.
