Precision Monitoring Solution for High-Reliability Rotating Equipment

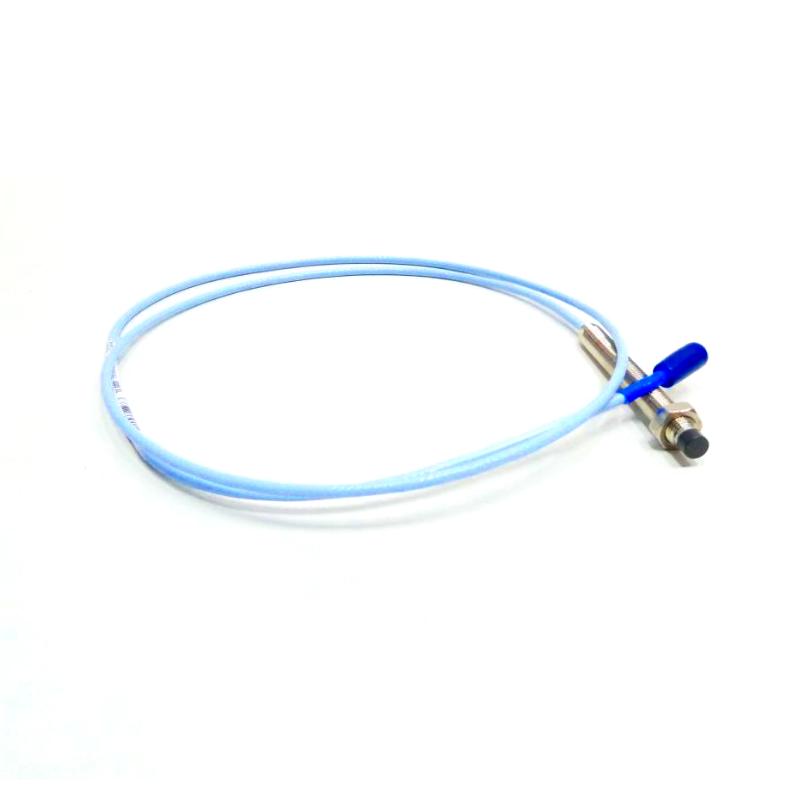

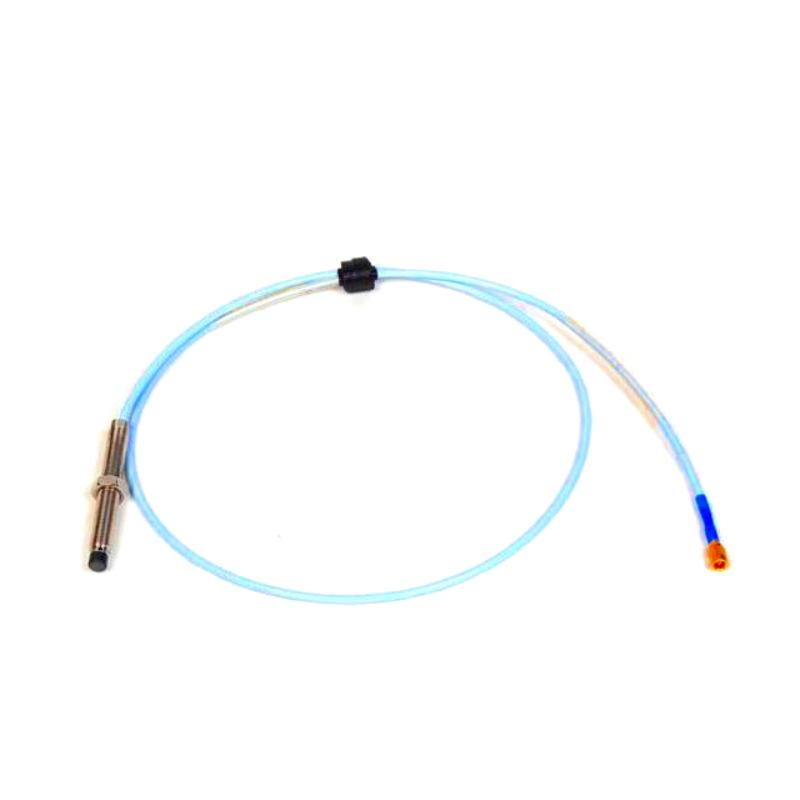

The Bently Nevada 330101-33-53-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, radial displacement, and position in critical rotating machinery. As part of the industry-proven 3300 XL proximity transducer system, it delivers stable signal output, excellent linearity, and long-term durability in demanding industrial environments.
This configuration (33-53-10-02-05) is typically associated with a 3.3-inch class probe geometry, 5.3-inch case length, 1.0-meter system cable, ClickLoc connector, and certified industrial approval option, making it suitable for heavy-duty turbomachinery applications requiring extended probe reach and reinforced mechanical stability in high-vibration environments. Based on 3300 XL ordering logic, the “33-53” variant is often selected for deeper mounting requirements in turbines, compressors, and generator systems where precise clearance control is essential.
Built with stainless steel housing and a PPS sensing tip, the probe ensures stable measurement performance even under harsh conditions such as vibration stress, thermal cycling, and industrial contamination.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-33-53-10-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | ~5.3 in |
| Unthreaded Length | 3.3 in class configuration |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| Certification | Standard industrial approval (05 option) |
| Weight | Approx. 0.22–0.4 kg |
Industrial Applications
The 330101-33-53-10-02-05 probe is widely used in industries where rotating machinery health is critical for safety, uptime, and production efficiency.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance monitoring
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas processing facilities
-
Petrochemical plants
-
Power generation stations
-
Heavy industrial rotating machinery systems
It continuously monitors shaft behavior, enabling early detection of imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and reducing unplanned downtime.
Key Advantages
High-Accuracy Non-Contact Measurement
Eddy-current sensing ensures stable, repeatable vibration and displacement readings.
Extended Mechanical Configuration
The 5.3-inch class geometry supports deeper installation requirements in complex machinery systems.
Rugged Industrial Construction
Stainless steel housing and PPS tip provide resistance to vibration, heat, and corrosive environments.
Predictive Maintenance Capability
Enables early fault detection for improved asset reliability and lifecycle optimization.
Seamless System Integration
Fully compatible with the 3300 XL Proximitor system architecture.
Long-Term Operational Stability
Designed for continuous 24/7 monitoring in mission-critical industrial environments.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “33-53” configuration represent?
It indicates a 3.3-inch class geometry and a 5.3-inch case length design.
Q4: What is the system cable length?
It uses a 1.0-meter cable assembly.
Q5: Which industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
Q6: Does it require contact with rotating equipment?
No, it operates using non-contact eddy-current measurement.
Q7: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature conditions.
Q9: Is it compatible within the 3300 XL system?
Yes, it integrates fully with probes, cables, and Proximitor modules.
Q10: What is the main benefit for maintenance teams?
It enables early detection of mechanical degradation, improving reliability and reducing downtime.
