Industrial-Grade Precision Monitoring for Critical Rotating Machinery

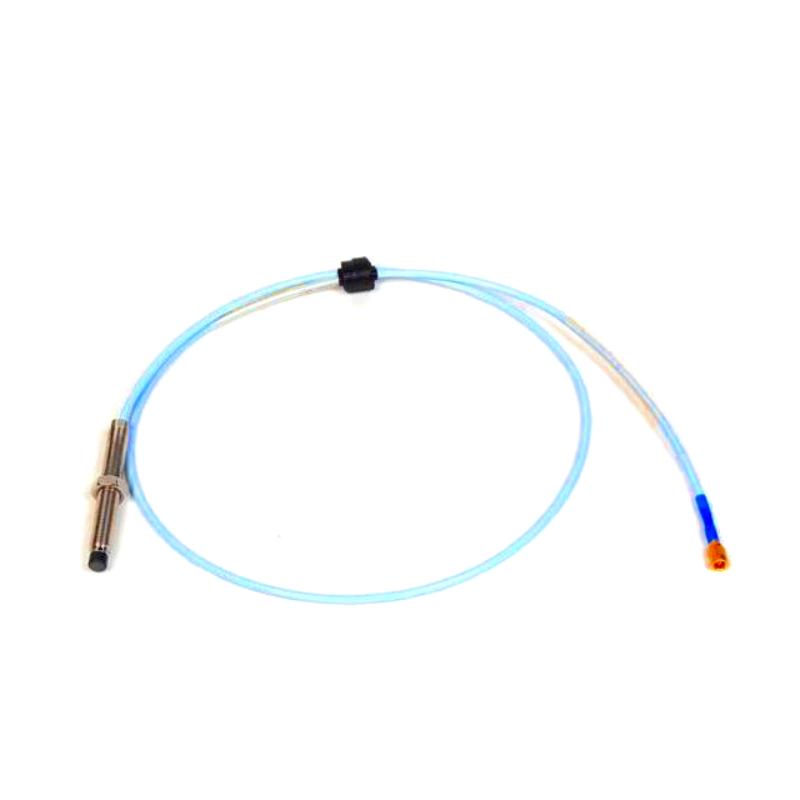

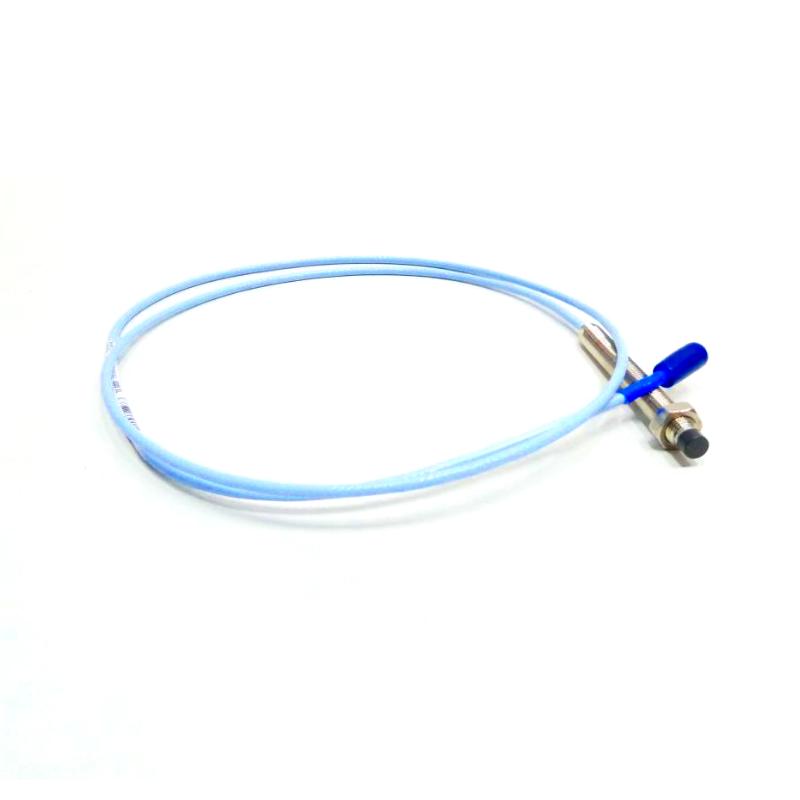

The Bently Nevada 330101-30-63-15-02-CN 3300 XL 8 mm Proximity Probe is a high-reliability eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, displacement, and position in rotating machinery systems. As part of the widely used 3300 XL proximity transducer family, it provides stable signal output, strong noise immunity, and consistent long-term performance in demanding industrial environments.
This configuration (30-63-15-02-CN) is typically associated with a 3.0-inch unthreaded length, 6.3-inch case length, 1.5-meter system cable, ClickLoc connector, and CN certification option (CSA/ATEX/IECEx compliant configuration), making it suitable for heavy-duty turbomachinery applications requiring extended probe reach and certified installation standards.
Built with stainless steel housing and a PPS sensing tip, it is engineered for durability under vibration stress, thermal cycling, and corrosive industrial conditions while maintaining measurement accuracy.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-30-63-15-02-CN |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 3.0 in |
| Case Length | 6.3 in |
| System Cable Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| Certification | CN (CSA / ATEX / IECEx) |
| Weight | Approx. 0.12–0.35 kg |
Industrial Applications
This probe is widely used in critical industries where rotating equipment reliability is essential for safety and production continuity:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance monitoring
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas processing facilities
-
Petrochemical plants
-
Power generation stations
-
Heavy industrial rotating machinery systems
It continuously tracks shaft behavior, enabling early detection of imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and reducing unplanned downtime.
Key Advantages
High-Precision Non-Contact Measurement
Eddy-current technology ensures stable, repeatable vibration and displacement readings.
Extended Mechanical Configuration
The 6.3-inch class body supports deeper installation requirements in large machinery systems.
Certified Industrial Compliance (CN Option)
Supports CSA, ATEX, and IECEx requirements for regulated environments.
Rugged Industrial Construction
Stainless steel housing and PPS probe tip provide strong resistance to harsh conditions.
Predictive Maintenance Capability
Enables early fault detection and improved asset lifecycle management.
Full System Compatibility
Designed for seamless integration within the 3300 XL Proximitor ecosystem.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “30-63” configuration represent?
It indicates a 3.0-inch unthreaded length and a 6.3-inch case length.
Q4: What is the system cable length?
It uses a 1.5-meter cable assembly.
Q5: What does the “CN” suffix mean?
It indicates a certified configuration (commonly CSA, ATEX, IECEx compliance).
Q6: Which industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
Q7: Does it require physical contact with the shaft?
No, it uses non-contact eddy-current measurement.
Q8: What materials are used in construction?
Stainless steel housing with PPS sensing tip.
Q9: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature industrial conditions.
Q10: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible with probes, cables, and Proximitor modules.
