Reliable High-Precision Sensing for Demanding Rotating Machinery

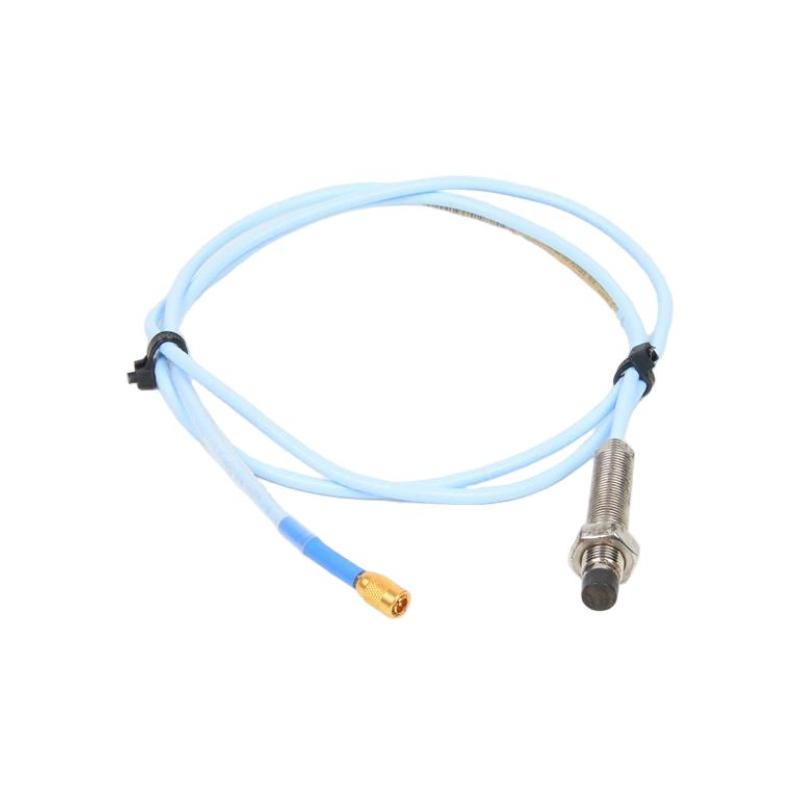

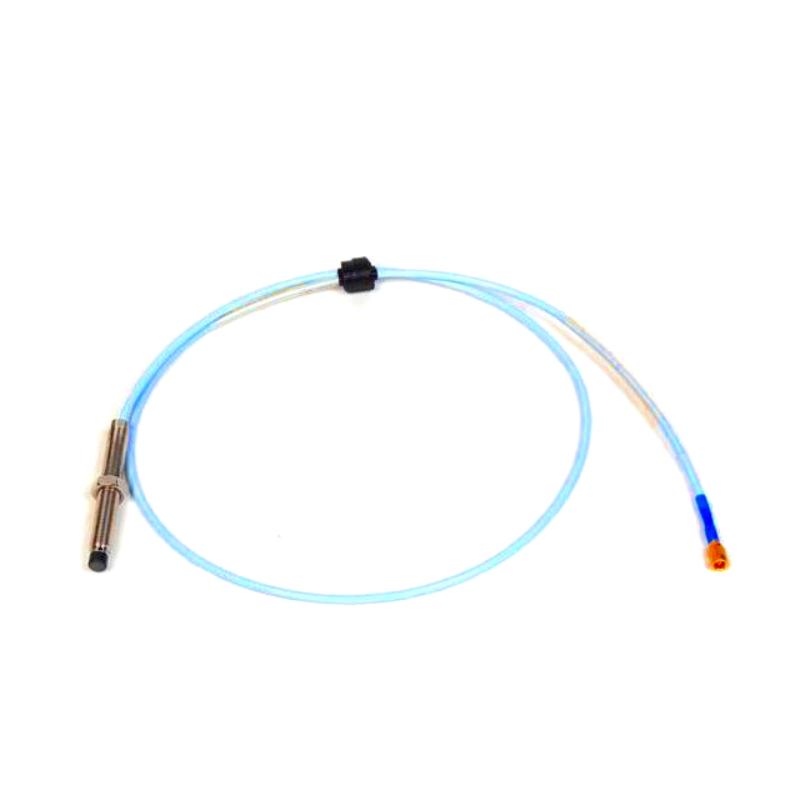

The Bently Nevada 330101-30-60-10-02-00 3300 XL 8 mm Proximity Probe is a robust eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, displacement, and axial position in industrial rotating equipment. As part of the widely trusted 3300 XL system, it delivers stable signal output, high accuracy, and long-term durability in harsh operating environments where machinery protection is critical.
This configuration (30-60-10-02-00) is generally associated with a 3.0-inch class probe geometry, 6.0-inch case length, 1.0-meter system cable, ClickLoc connector, and standard non-certified configuration option, making it suitable for installations that require extended mechanical reach and deeper probe insertion into bearing housings or turbine assemblies. Based on 3300 XL system ordering conventions, the “30-60” variant is commonly selected for heavy-duty machinery monitoring where rigid mounting and stable clearance alignment are required.
Built with stainless steel housing and a PPS sensing tip, the probe is engineered for high resistance to vibration, thermal cycling, and industrial contamination while maintaining consistent measurement performance.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-30-60-10-02-00 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | ~6.0 in |
| Unthreaded Length | 3.0 in class configuration |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | Approx. 0.25–0.4 kg |
Industrial Applications
The 330101-30-60-10-02-00 probe is widely applied in industries where continuous rotating machinery monitoring is essential for operational safety and uptime.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance monitoring
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas production facilities
-
Petrochemical refining plants
-
Power generation stations
-
Heavy industrial rotating machinery systems
It provides continuous monitoring of shaft behavior, helping detect early signs of imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and reducing unexpected downtime.
Key Advantages
High-Accuracy Non-Contact Measurement
Eddy-current sensing ensures stable and repeatable vibration and displacement measurement performance.
Extended Mechanical Reach Design
The 6.0-inch class configuration supports deeper installation requirements in large machinery systems.
Industrial-Grade Durability
Stainless steel construction and PPS sensing tip provide resistance to harsh mechanical and thermal conditions.
Predictive Maintenance Enablement
Supports early detection of mechanical degradation for improved asset reliability.
Seamless System Integration
Fully compatible with the 3300 XL Proximitor ecosystem and extension cables.
Long-Term Operational Stability
Designed for continuous 24/7 monitoring in mission-critical industrial environments.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “30-60” configuration represent?
It indicates a 3.0-inch class geometry and a 6.0-inch case length variant.
Q4: What is the system cable length?
It uses a 1.0-meter cable assembly.
Q5: Which industries commonly use this probe?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
Q6: Does it require contact with the shaft?
No, it operates using non-contact eddy-current measurement.
Q7: What materials are used in construction?
Stainless steel housing with PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature industrial conditions.
Q9: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible with probes, cables, and Proximitor modules.
Q10: What is the main benefit for maintenance teams?
It enables early fault detection, improving equipment reliability and reducing downtime.
