Precision Engineered Monitoring for Critical Rotating Equipment

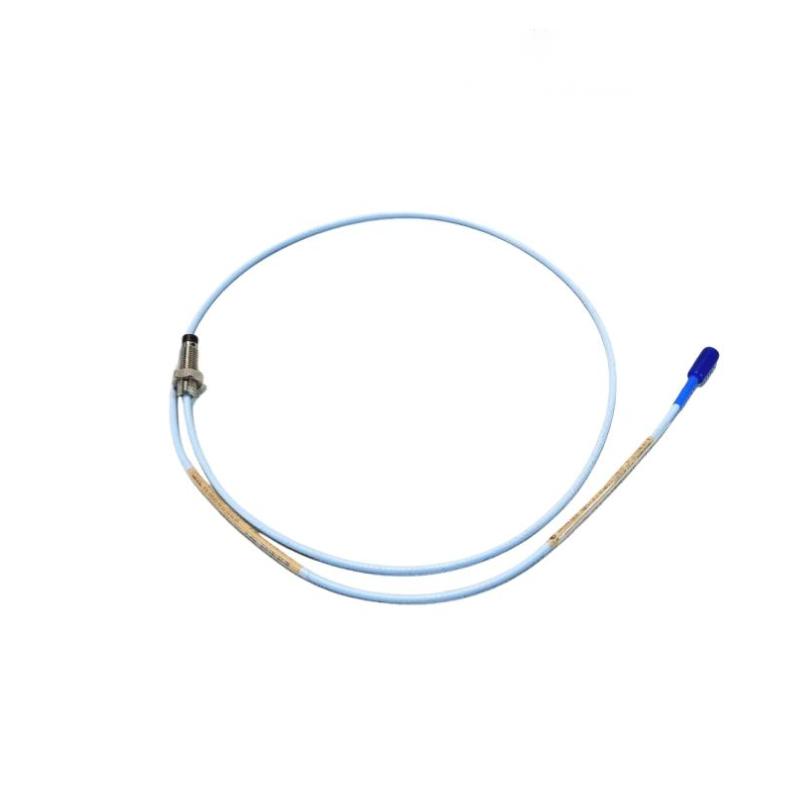

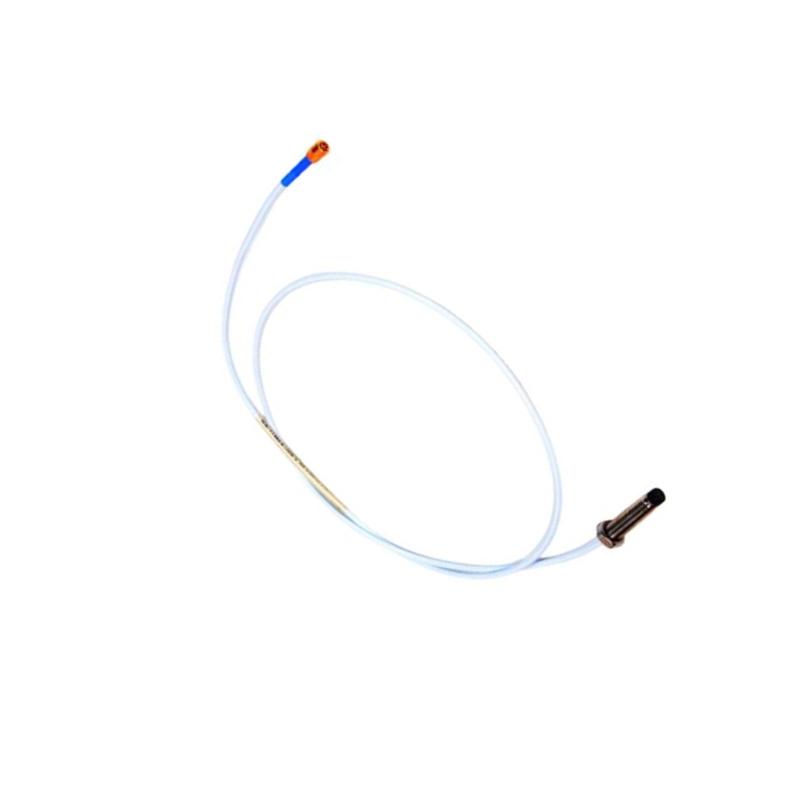

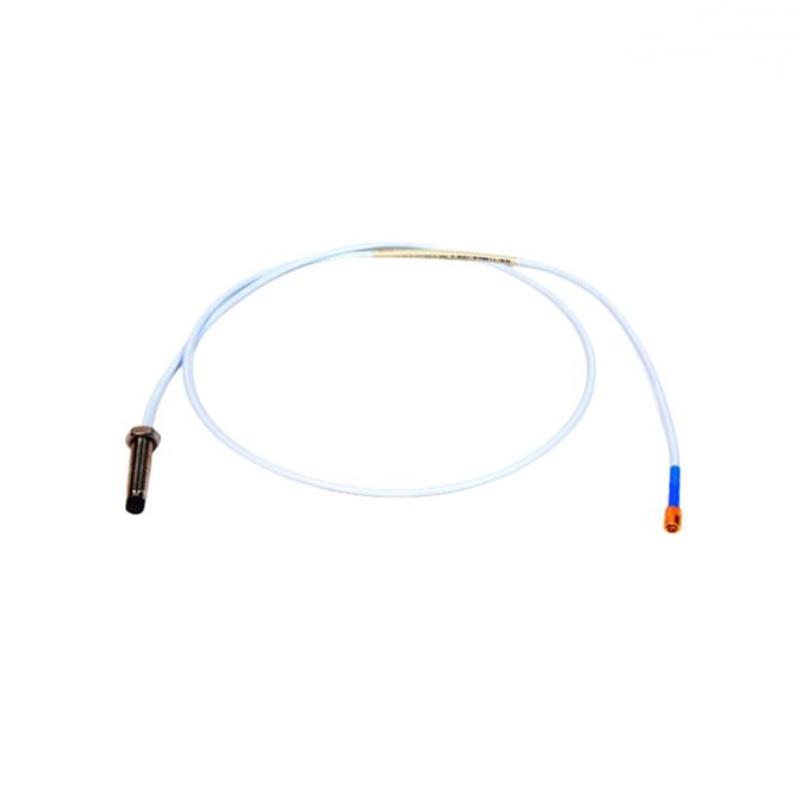

The Bently Nevada 330101-29-52-10-02-05 3300 XL 8 mm Proximity Probe is a high-reliability eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, displacement, and position in industrial rotating machinery. As part of the proven 3300 XL proximity transducer family, it delivers stable signal output, strong linear accuracy, and long service life in harsh industrial environments.
This configuration (29-52-10-02-05) is commonly defined as a 2.9-inch unthreaded length, 5.2-inch overall case length, 1.0-meter system cable, ClickLoc connector, and CSA/ATEX/IECEx-approved configuration option, making it suitable for turbomachinery installations requiring deeper mechanical insertion and certified industrial compliance. It is widely used in condition monitoring systems where precision and reliability directly impact asset safety and operational uptime.
Built with stainless steel housing and a PPS sensing tip, the probe is engineered to withstand vibration stress, thermal cycling, and corrosive industrial environments while maintaining measurement stability.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-29-52-10-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 2.9 in |
| Case Length | 5.2 in |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | Approx. 0.18–0.35 kg |
Industrial Applications
The 330101-29-52-10-02-05 probe is widely used in industries where rotating machinery reliability is critical for continuous production and operational safety.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance analysis
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas processing facilities
-
Petrochemical plants
-
Power generation stations
-
Heavy industrial rotating machinery systems
It continuously tracks shaft behavior, enabling early detection of imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and reducing unexpected downtime.
Key Advantages
High-Accuracy Non-Contact Sensing
Eddy-current technology ensures stable and repeatable measurement of vibration and displacement.
Extended Mechanical Configuration
The 5.2-inch class body supports deeper installation requirements for complex machinery layouts.
Certified Industrial Reliability
The 05 approval option supports compliance for regulated industrial environments.
Rugged Construction Design
Stainless steel housing and PPS tip provide durability in harsh operating conditions.
Predictive Maintenance Capability
Enables early fault detection and condition-based monitoring strategies.
Seamless System Integration
Fully compatible with 3300 XL Proximitor systems and extension cables.
Long-Term Operational Stability
Designed for continuous 24/7 monitoring in mission-critical applications.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “29-52” configuration represent?
It indicates a 2.9-inch unthreaded length and 5.2-inch case length.
Q4: What is the cable length?
It uses a 1.0-meter system cable.
Q5: What industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
Q6: Does it require contact with the shaft?
No, it operates using non-contact measurement.
Q7: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature conditions.
Q9: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible with probes, cables, and Proximitor modules.
Q10: What is the main benefit for maintenance teams?
It enables early detection of mechanical degradation, improving reliability and reducing downtime.
