High-Performance Precision Sensing for Critical Rotating Machinery

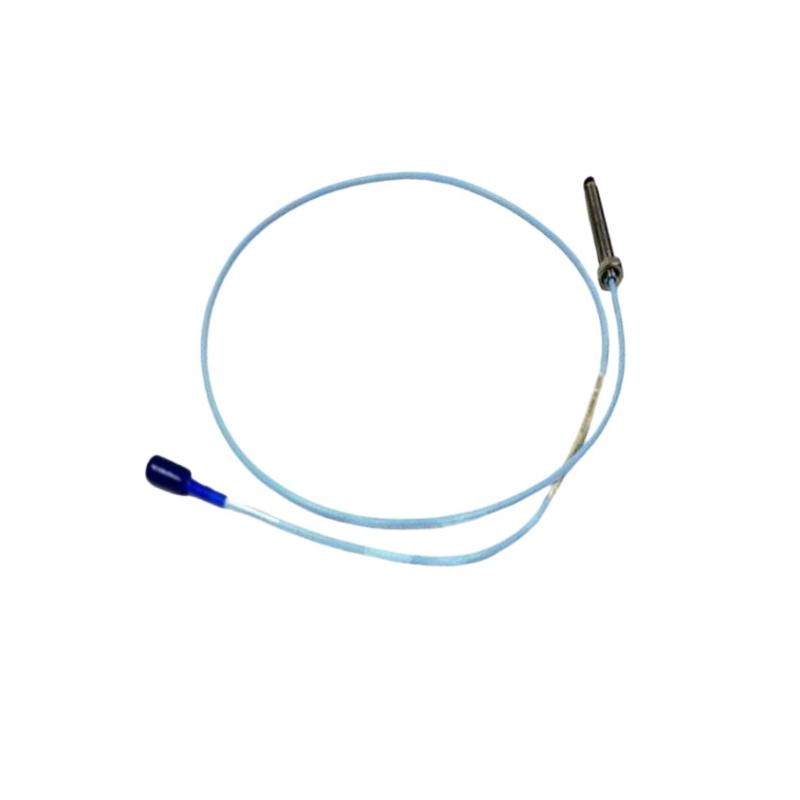

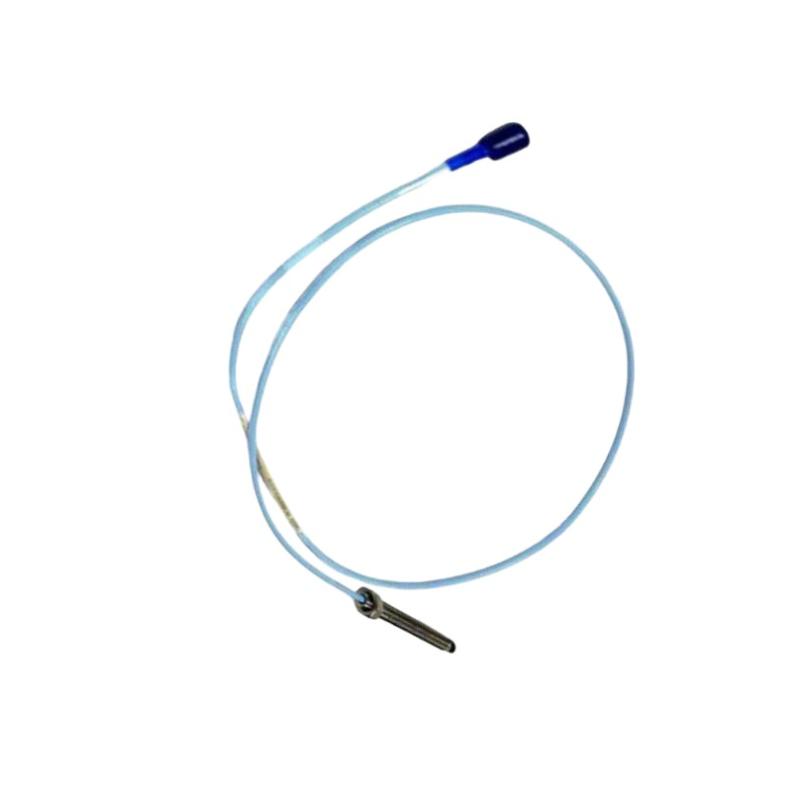

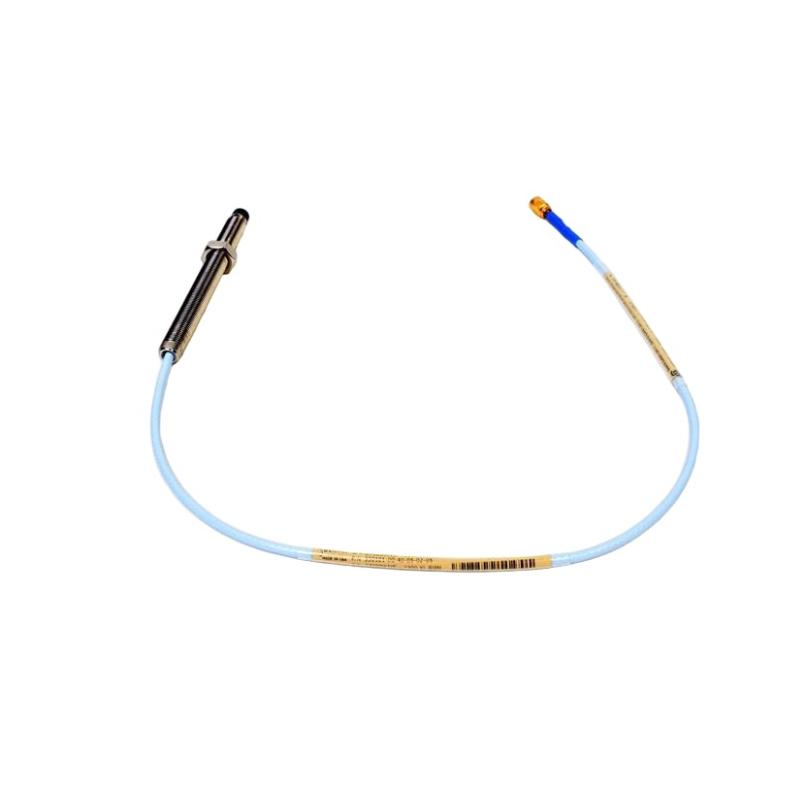

The Bently Nevada 330101-13-37-10-12-05 3300 XL 8 mm Proximity Probe is a robust eddy-current transducer designed for continuous, non-contact measurement of shaft vibration, displacement, and position in high-value rotating equipment. As part of the trusted 3300 XL series, it delivers stable signal output, strong electrical noise immunity, and long-term measurement consistency in demanding industrial environments.
This configuration (…13-37-10-12-05) is commonly associated with a 1.3-inch class probe geometry, 3.7-inch case length, 1.0-meter system cable, 1.2-inch mounting configuration variant, and agency-approved industrial certification option, making it suitable for heavy-duty turbomachinery installations requiring deeper probe insertion and reinforced mechanical stability. It is widely applied in predictive maintenance systems where precision and uptime directly affect plant safety and productivity.
Constructed with stainless steel housing and a PPS sensing tip, the probe is engineered to withstand vibration stress, corrosive environments, and continuous 24/7 industrial operation.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-13-37-10-12-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | ~3.7 in class configuration |
| Mounting Geometry | 1.3 in variant |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | Approx. 0.25–0.4 kg |
Industrial Applications
The 330101-13-37-10-12-05 probe is widely used in industries where rotating machinery reliability is essential for continuous production and operational safety.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition protection systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance monitoring
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas production facilities
-
Petrochemical refining plants
-
Power generation stations
-
Heavy industrial rotating machinery systems
It enables continuous monitoring of shaft behavior, helping detect early-stage faults such as imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and minimizing unexpected downtime.
Key Advantages
High-Precision Non-Contact Measurement
Eddy-current technology ensures stable and repeatable vibration and displacement readings.
Extended Mechanical Configuration
The 3.7-inch class design supports deeper installation requirements in complex machinery layouts.
Industrial-Grade Durability
Stainless steel housing and PPS tip provide resistance to harsh mechanical and chemical environments.
Predictive Maintenance Enablement
Supports early detection of mechanical degradation for improved asset lifecycle management.
Seamless System Integration
Fully compatible with the 3300 XL Proximitor ecosystem for reliable deployment.
Long-Term Operational Stability
Designed for continuous 24/7 monitoring in mission-critical industrial environments.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “13-37” configuration represent?
It typically refers to a 1.3-inch mounting geometry and a 3.7-inch case length variant.
Q4: What is the cable length?
It uses a 1.0-meter system cable.
Q5: Which industries use this probe?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
Q6: Does it require contact with rotating parts?
No, it operates using non-contact eddy-current measurement.
Q7: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration, temperature, and industrial exposure.
Q9: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible with probes, extension cables, and Proximitor modules.
Q10: What is the main benefit for maintenance teams?
It enables early fault detection, reducing downtime and improving equipment reliability.
