Advanced Precision Monitoring for Critical Rotating Machinery Systems

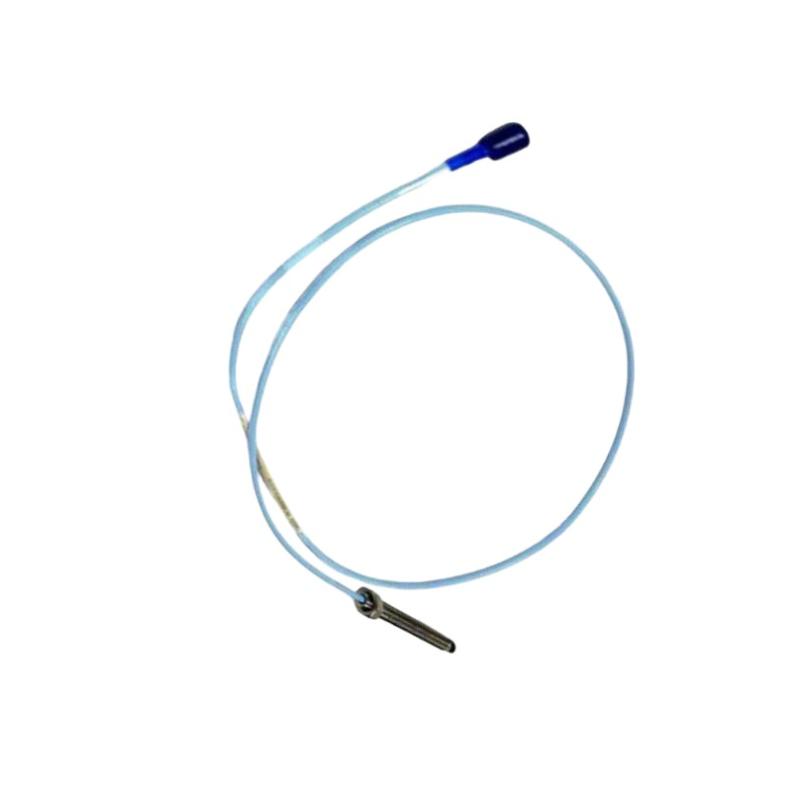

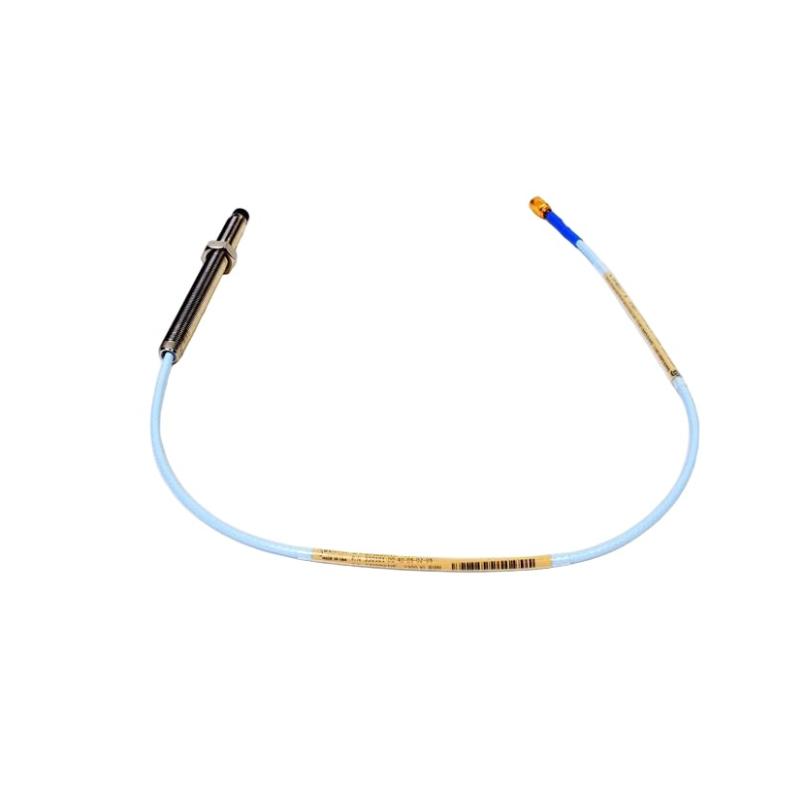

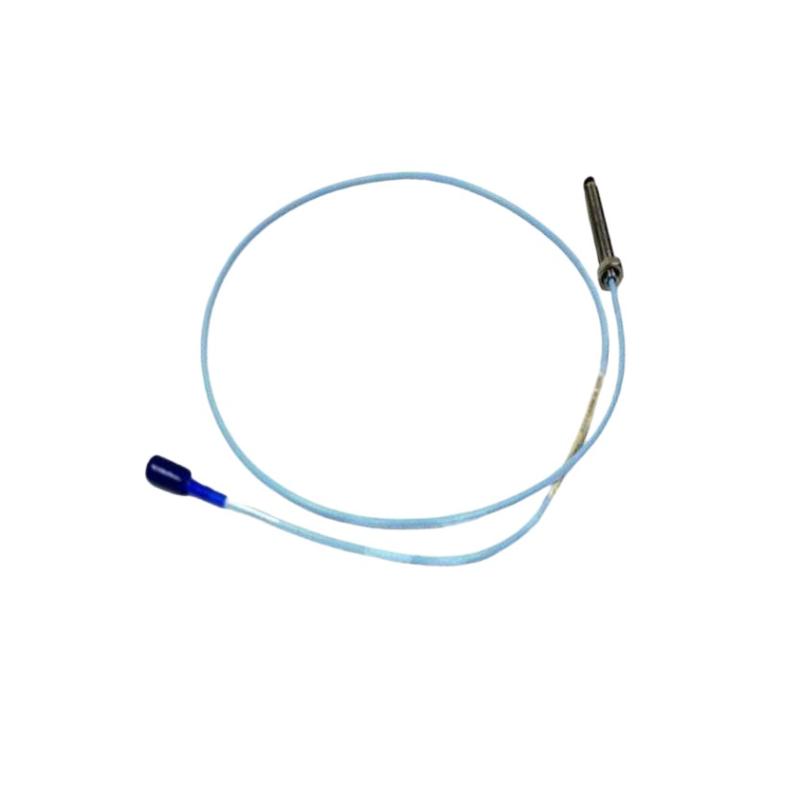

The Bently Nevada 330101-10-27-05-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, radial displacement, and position in industrial rotating equipment. As part of the widely adopted 3300 XL proximity transducer system, it delivers stable signal output, excellent linearity, and long-term operational reliability in harsh industrial environments.
This configuration (…27-05-02-05) is typically associated with a 2.7-inch class probe case length, 0.5-inch mounting geometry option, 1.0-meter system cable, ClickLoc connector, and agency-approved configuration, making it suitable for turbomachinery applications requiring robust mounting flexibility and certified installation standards. It is widely used in condition monitoring systems for turbines, compressors, and generators where precision and uptime are critical.
Built with stainless steel housing and a PPS sensing tip, the probe is engineered to withstand vibration, temperature cycling, and chemically aggressive industrial environments while maintaining measurement accuracy.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-10-27-05-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | ~2.7 in class configuration |
| Mounting Geometry | 0.5 in unthreaded length |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | Approx. 0.2–0.35 kg |
Industrial Applications
The 330101-10-27-05-02-05 probe is widely used in industries where rotating machinery reliability directly impacts production continuity and operational safety.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance analysis
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas processing facilities
-
Petrochemical plants
-
Power generation stations
-
Heavy industrial rotating equipment systems
It enables continuous tracking of shaft motion, helping detect early signs of imbalance, misalignment, looseness, and bearing degradation—supporting predictive maintenance strategies and reducing unexpected downtime.
Key Advantages
High-Accuracy Non-Contact Measurement
Eddy-current sensing ensures stable and repeatable vibration and displacement readings.
Flexible Installation Geometry
The 2.7-inch class configuration supports specialized mounting requirements in complex machinery.
Rugged Industrial Design
Stainless steel body and PPS tip provide strong resistance to harsh operating environments.
Predictive Maintenance Capability
Supports early fault detection and condition-based monitoring strategies.
Seamless System Integration
Fully compatible with the 3300 XL transducer ecosystem for easy deployment.
Long-Term Operational Stability
Designed for continuous 24/7 industrial monitoring in mission-critical applications.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “27” configuration represent?
It indicates a 2.7-inch class probe case length variant.
Q4: What does the “05” option indicate?
It typically represents an agency-approved configuration option for industrial compliance.
Q5: What is the cable length?
It uses a 1.0-meter system cable.
Q6: Which industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industry sectors.
Q7: Does it require contact with the shaft?
No, it operates using non-contact eddy-current sensing.
Q8: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q9: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature industrial conditions.
Q10: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible across probes, cables, and Proximitor modules.
