Engineering Precision for Demanding Rotating Machinery Environments

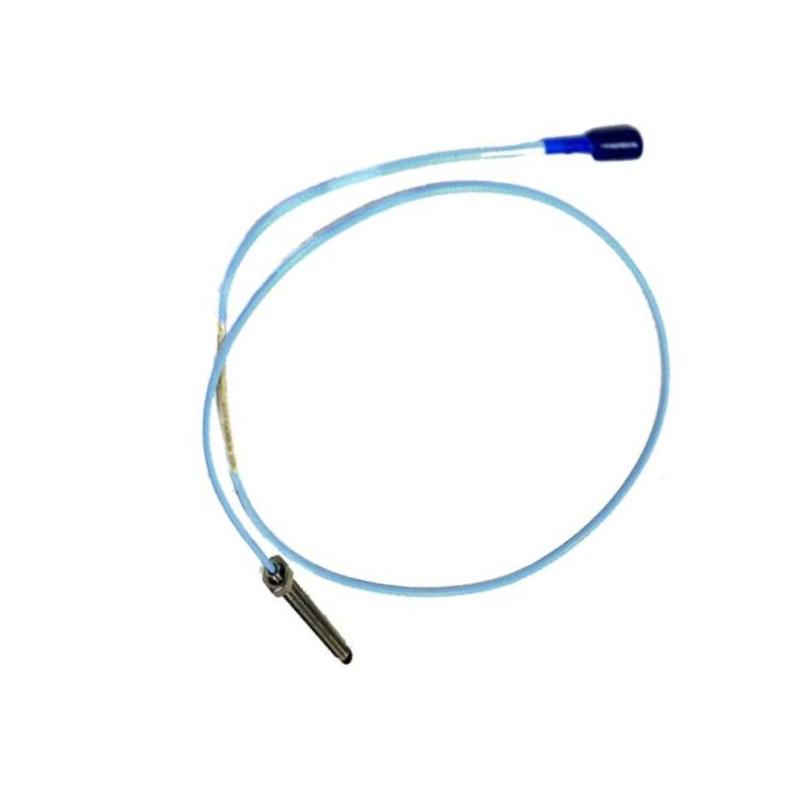

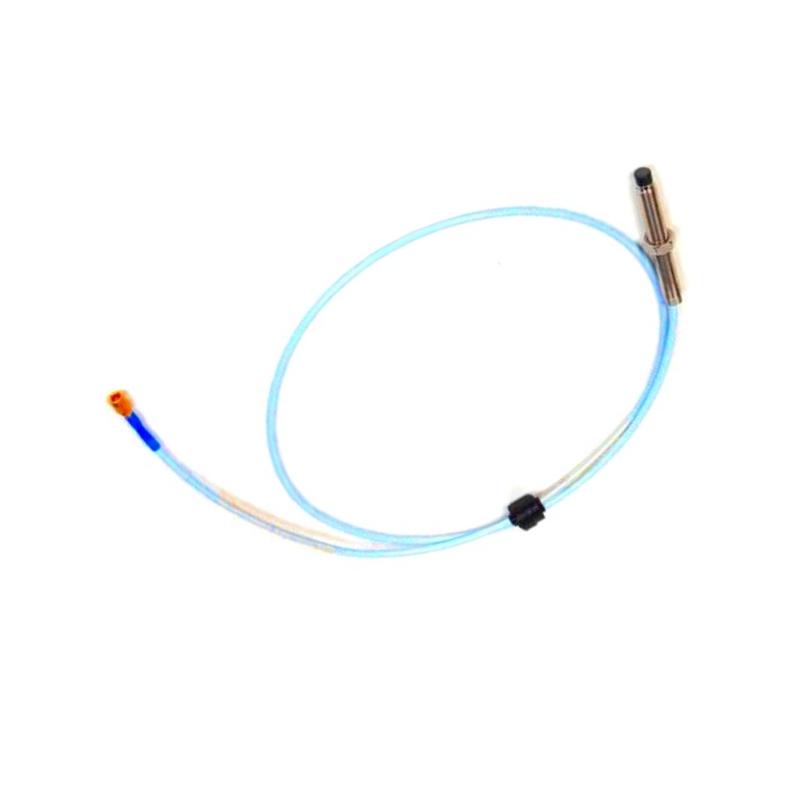

The Bently Nevada 330101-05-30-10-02-00 3300 XL 8 mm Proximity Probe is a high-reliability eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, radial displacement, and position in industrial rotating equipment. As part of the proven 3300 XL series, it delivers stable signal performance, excellent linearity, and long operational life in harsh industrial environments.
This configuration (…05-30-10-02-00) is typically defined by a 0.5-inch unthreaded length, 3.0-inch probe case length, 1.0-meter system cable, ClickLoc connector, and standard non-certified configuration option, making it a widely used general-purpose variant for turbomachinery monitoring systems. It is commonly selected where dependable performance and standard installation geometry are required without additional compliance options.
Built with stainless steel housing and a PPS sensing tip, it is engineered to maintain accuracy under high vibration, temperature variation, and continuous-duty industrial operation.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-05-30-10-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.5 in |
| Case Length | 3.0 in |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | ~0.2–0.35 kg (configuration dependent) |
Industrial Applications
The 330101-05-30-10-02-00 probe is widely used in industries where rotating machinery health directly impacts production continuity and operational safety.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance analysis
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas production facilities
-
Petrochemical refining plants
-
Power generation stations
-
Heavy industrial machinery systems
By continuously tracking shaft movement, it enables early detection of imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and reducing unexpected downtime.
Key Advantages
Reliable Non-Contact Measurement
Eddy-current sensing ensures stable and repeatable vibration and displacement readings.
Standard Industrial Configuration
The 3.0-inch case length variant is widely compatible across common machine installations.
Rugged Industrial Design
Stainless steel body and PPS tip provide strong resistance to harsh environments.
Predictive Maintenance Enablement
Supports early fault detection and condition-based monitoring strategies.
Seamless System Integration
Fully compatible with 3300 XL Proximitor systems and extension cables.
Long-Term Operational Stability
Designed for continuous 24/7 industrial monitoring in mission-critical environments.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “05-30” configuration mean?
It typically indicates a 0.5-inch unthreaded length and 3.0-inch case length.
Q4: What is the system cable length?
It uses a 1.0-meter cable assembly.
Q5: What industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
Q6: Does it require contact with rotating parts?
No, it measures through non-contact sensing.
Q7: What materials are used in construction?
Stainless steel housing with PPS probe tip.
Q8: Is it suitable for harsh environments?
Yes, it is designed for high vibration and temperature conditions.
Q9: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible with 3300 XL probes and monitors.
Q10: What is the main benefit for maintenance teams?
It enables early detection of mechanical degradation, reducing downtime and maintenance cost.
