Reliable Eddy-Current Sensing for High-Performance Rotating Machinery

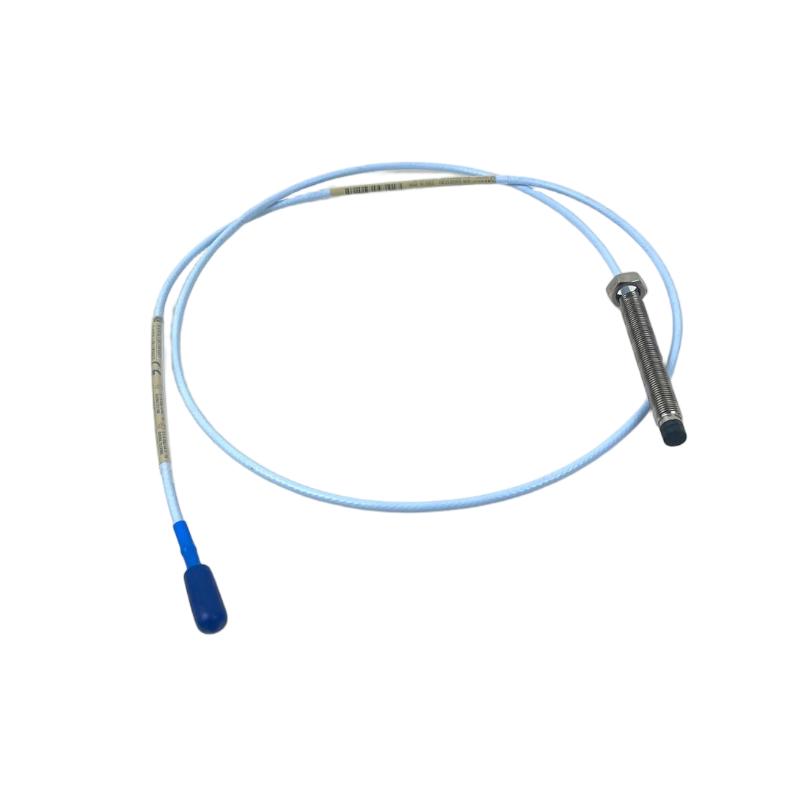

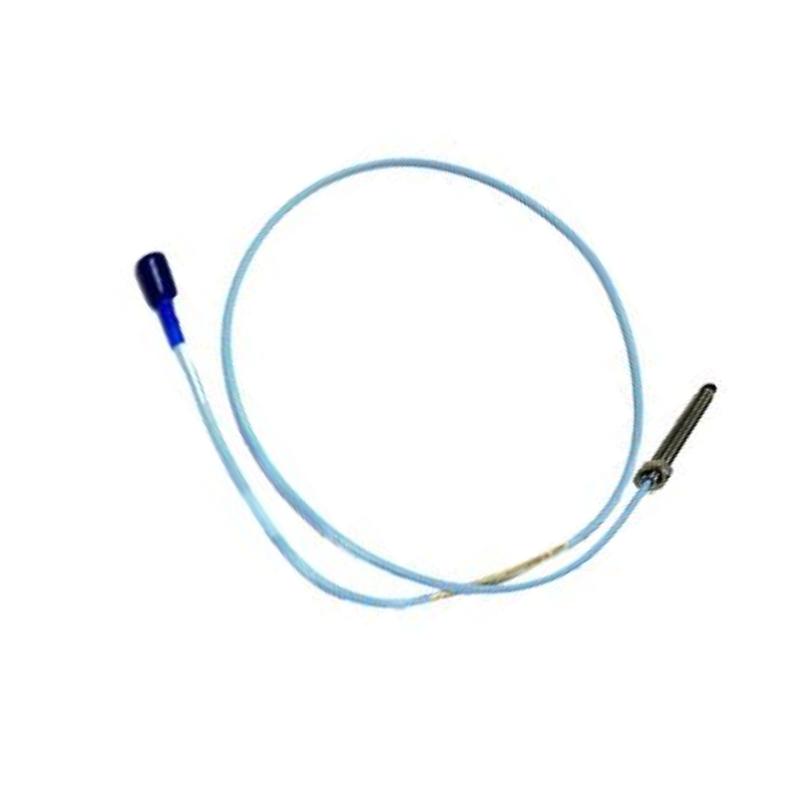

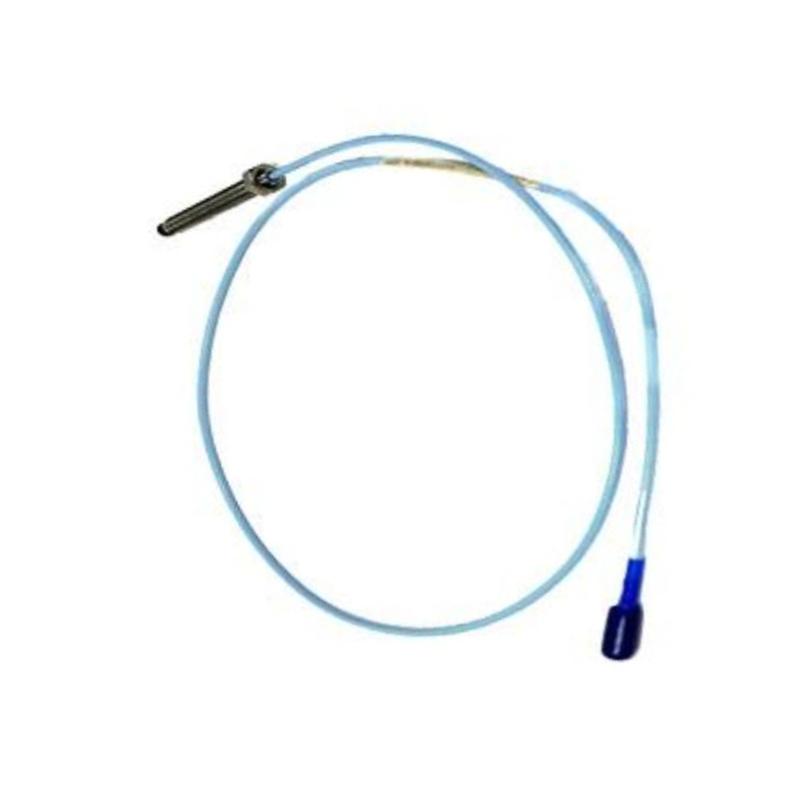

The Bently Nevada 330101-05-20-10-02-00 3300 XL 8 mm Proximity Probe is a precision-engineered eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, radial displacement, and position. As part of the industry-proven 3300 XL series, it provides stable signal output, strong electromagnetic immunity, and long-term operational reliability in demanding industrial environments.
This configuration is typically defined by a 0.5-inch unthreaded length (05), 2.0-inch case length (20), 1.0-meter system cable (10), ClickLoc connector (02), and standard approval option (00). It is widely used in turbine and compressor monitoring systems where consistent accuracy and interchangeability are critical for machinery protection and predictive maintenance strategies.
Built with stainless steel housing and a PPS sensing tip, this probe is designed to withstand harsh operating conditions such as high vibration, temperature fluctuations, and industrial contamination.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-05-20-10-02-00 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Technology | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.5 in |
| Case Length | 2.0 in |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | Approx. 0.32 kg |
Industrial Applications
The 330101-05-20-10-02-00 probe is widely used in industries where rotating equipment reliability directly affects production efficiency, safety, and operational continuity.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition protection systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance monitoring
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas processing facilities
-
Petrochemical refining plants
-
Power generation stations
-
Heavy industrial machinery systems
It continuously tracks shaft movement, enabling early detection of imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance and reducing unplanned downtime.
Key Advantages
High-Accuracy Non-Contact Measurement
Eddy-current technology ensures stable and repeatable vibration and displacement readings.
Standardized Industrial Configuration
The 2.0-inch class case length supports broad compatibility across rotating machinery systems.
Rugged Construction
Stainless steel body and PPS tip provide strong resistance to harsh industrial environments.
Predictive Maintenance Capability
Enables early fault detection and condition-based maintenance strategies.
Full System Interchangeability
Compatible with 3300 XL Proximitor sensors and extension cables without recalibration.
Long-Term Operational Stability
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What does the 3300 XL system represent?
A high-performance eddy-current proximity measurement system used for machinery protection.
Q3: What does the “05-20” configuration mean?
It indicates a 0.5-inch unthreaded length and 2.0-inch probe case length.
Q4: What is the cable length?
It uses a 1.0-meter system cable.
Q5: Which industries commonly use this probe?
Power generation, oil and gas, petrochemical, and heavy industry sectors.
Q6: Does it require contact with the shaft?
No, it uses non-contact eddy-current sensing technology.
Q7: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature industrial conditions.
Q9: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible across probes, cables, and Proximitor modules.
Q10: What is the main benefit for maintenance teams?
It enables early detection of mechanical degradation, reducing downtime and maintenance costs.
