Stable High-Accuracy Monitoring for Critical Rotating Machinery

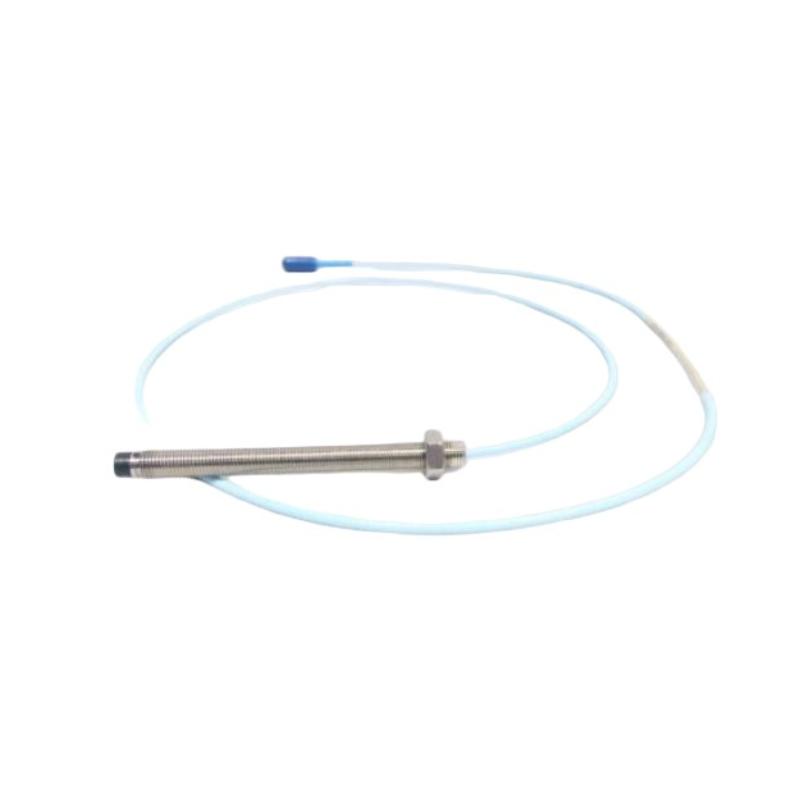

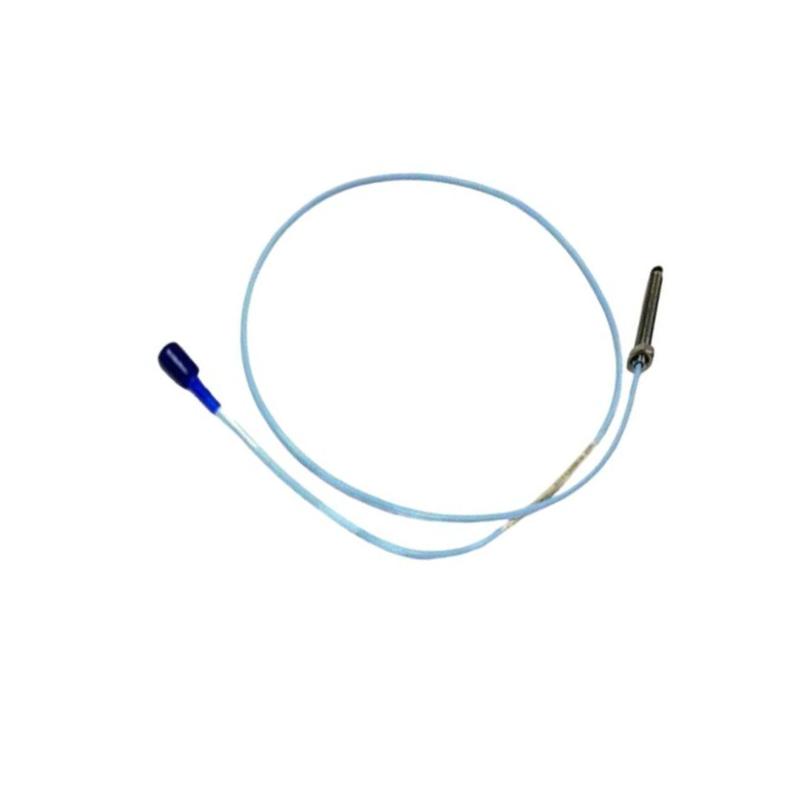

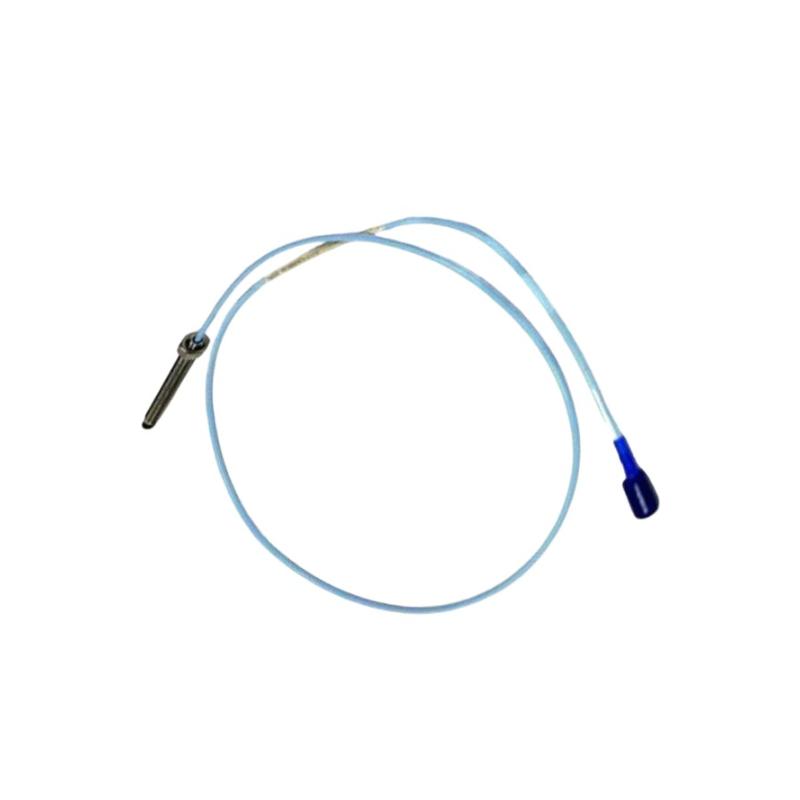

The Bently Nevada 330101-02-24-10-02-05 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, radial displacement, and position in industrial rotating equipment. As part of the trusted 3300 XL proximity transducer system, it delivers stable signal output, high repeatability, and long-term durability in demanding operational environments.
This configuration is commonly associated with a 2.4-inch class probe case length and a 1.0-meter system cable with ClickLoc connector and standard approval configuration, making it suitable for a wide range of turbomachinery and general-purpose industrial monitoring applications. It is widely used in condition monitoring systems where measurement accuracy and mechanical reliability are essential for safe and efficient operation.
Built with stainless steel housing and a PPS (Polyphenylene Sulfide) sensing tip, this probe is engineered for harsh industrial environments involving vibration, temperature fluctuation, and continuous operation.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-02-24-10-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Technology | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | ~2.4 in (approx. 60.96 mm) |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | Approx. 0.15–0.32 kg (configuration dependent) |
Industrial Applications
The 330101-02-24-10-02-05 probe is widely deployed in industries where rotating machinery health directly impacts production stability and safety.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine protection systems
-
Centrifugal compressor condition monitoring
-
Industrial pump diagnostics
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil and gas production facilities
-
Petrochemical processing plants
-
Power generation stations
-
Heavy industrial machinery systems
By continuously tracking shaft behavior, it enables early detection of imbalance, misalignment, looseness, and bearing degradation—supporting predictive maintenance strategies and reducing unplanned downtime.
Key Advantages
High-Precision Non-Contact Sensing
Eddy-current technology ensures stable and repeatable measurement of vibration and displacement.
Standard Industrial Configuration
The 2.4-inch class design supports broad compatibility across rotating equipment systems.
Rugged Construction
Stainless steel body and PPS tip provide resistance to harsh environments and mechanical stress.
Predictive Maintenance Enablement
Supports continuous monitoring for early fault detection and asset protection.
Seamless System Integration
Fully compatible with the 3300 XL transducer ecosystem for simplified deployment.
Long-Term Operational Stability
Designed for 24/7 industrial use in mission-critical environments.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What does the 3300 XL system represent?
A standardized eddy-current proximity measurement system used for industrial machine protection.
Q3: What does the “24” code indicate?
It represents a 2.4-inch class probe case length configuration.
Q4: What is the cable length?
It uses a 1.0-meter system cable.
Q5: Which industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industry sectors.
Q6: Does it require contact with the shaft?
No, it uses non-contact eddy-current sensing technology.
Q7: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature industrial conditions.
Q9: Is it compatible with other 3300 XL components?
Yes, it is fully interchangeable within the 3300 XL ecosystem.
Q10: What is the main maintenance benefit?
It enables early detection of mechanical faults, reducing downtime and maintenance costs.
