Precision Condition Monitoring for Reliable Rotating Equipment Performance

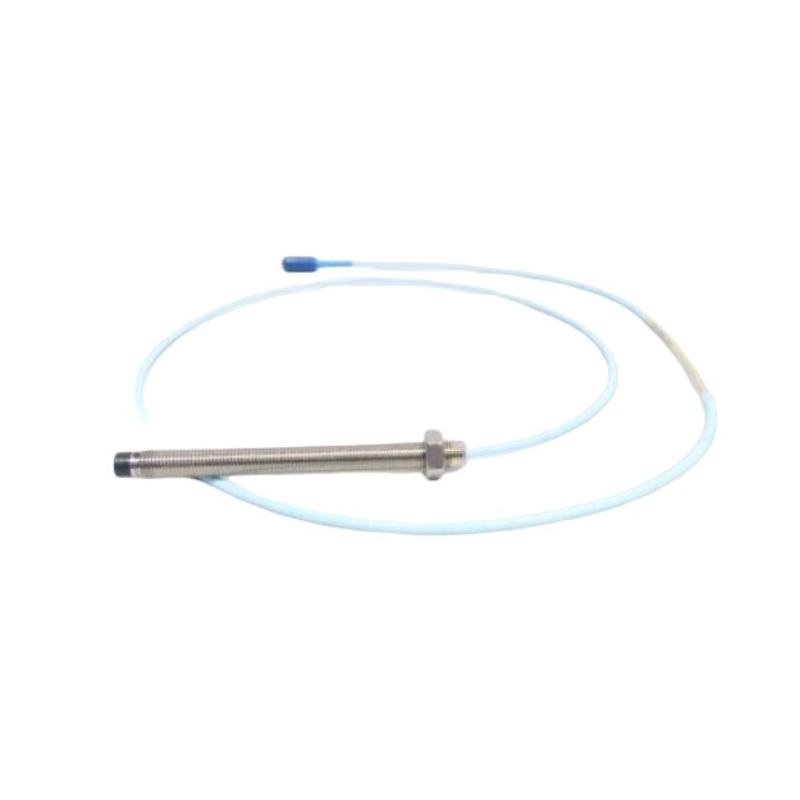

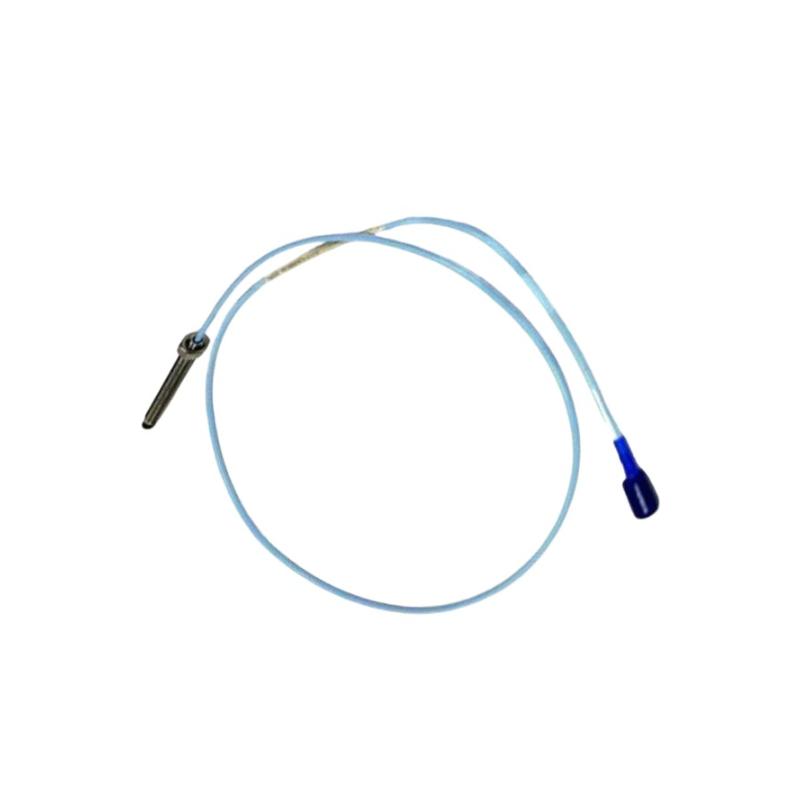

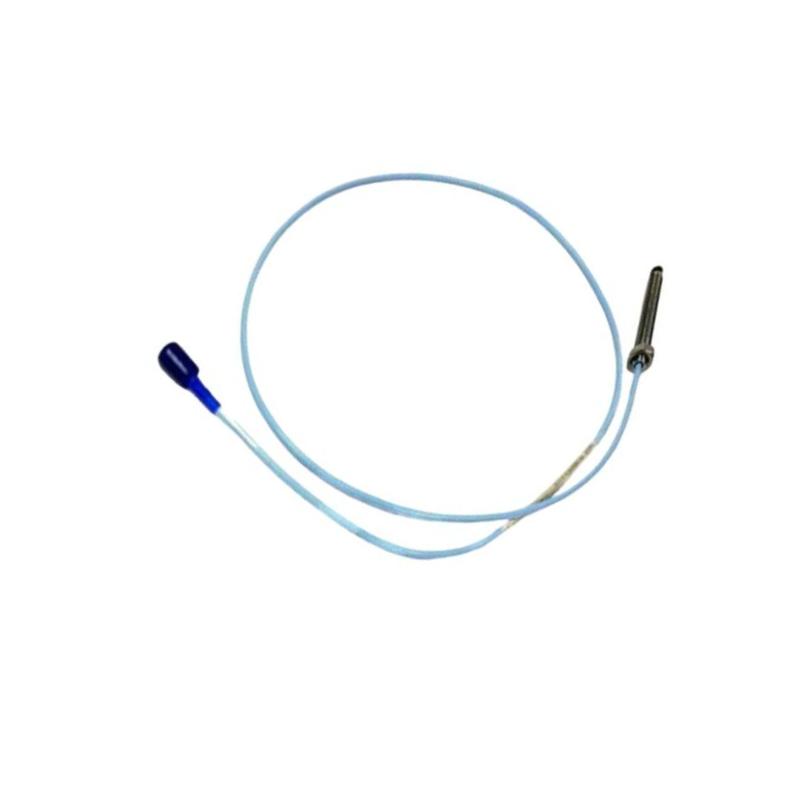

The Bently Nevada 330101-02-12-10-02-05 3300 XL 8 mm Proximity Probe is a high-accuracy eddy-current sensor designed for continuous, non-contact measurement of shaft vibration, displacement, and position in critical industrial machinery. As part of the 3300 XL proximity transducer family, it delivers stable signal output, strong noise resistance, and long-term durability for demanding industrial monitoring applications.
This configuration is commonly associated with a 1.2-inch class probe case length and a 1.0-meter system cable assembly, making it suitable for standard-depth installations in turbines, compressors, and rotating equipment where stable mechanical fit and measurement precision are essential. It is engineered to integrate seamlessly into predictive maintenance systems for real-time machine health diagnostics.
Built with stainless steel housing and a PPS (Polyphenylene Sulfide) sensing tip, this probe is designed for harsh industrial environments with high vibration, temperature variation, and continuous operation requirements.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-02-12-10-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length | ~1.2 in (30.5 mm class configuration) |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| Weight | Approx. 0.15–0.32 kg (system dependent) |
Industrial Applications
The 330101-02-12-10-02-05 probe is widely used in industries where continuous machinery reliability is critical for operational safety and production efficiency.
Typical applications include:
-
Steam turbine vibration monitoring systems
-
Gas turbine protection and diagnostics
-
Centrifugal compressor condition monitoring
-
Industrial pump performance analysis
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas production facilities
-
Petrochemical refining plants
-
Power generation stations
-
Heavy industrial rotating equipment systems
By continuously tracking shaft behavior, it enables early detection of imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and reducing unplanned downtime.
Key Advantages
High-Precision Non-Contact Sensing
Eddy-current technology ensures accurate and stable measurement of vibration and displacement signals.
Compact Industrial Design
The 1.2-inch class configuration allows flexible installation in standard machinery housings.
Rugged Construction
Stainless steel body and PPS tip provide strong resistance to vibration, corrosion, and harsh environments.
Predictive Maintenance Ready
Supports continuous condition monitoring for early fault detection and asset protection.
Seamless System Integration
Fully compatible with the 3300 XL transducer ecosystem for easy deployment and replacement.
Long-Term Reliability
Designed for 24/7 operation in mission-critical industrial environments.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What does the 3300 XL system represent?
A standardized eddy-current proximity measurement system used for machine protection and monitoring.
Q3: What does the “12” code indicate?
It represents a 1.2-inch class probe case length configuration.
Q4: What does the “10” option mean?
It indicates a 1.0-meter system cable length.
Q5: What industries commonly use this probe?
Power generation, oil and gas, petrochemical, and heavy industry sectors.
Q6: Does it require contact with rotating shafts?
No, it uses non-contact eddy-current sensing technology.
Q7: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature industrial conditions.
Q9: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible with 3300 XL probes, cables, and Proximitor systems.
Q10: What is the main benefit for maintenance teams?
It enables early detection of mechanical degradation, reducing downtime and maintenance costs.
