Industrial-Grade Precision Monitoring for Critical Rotating Assets

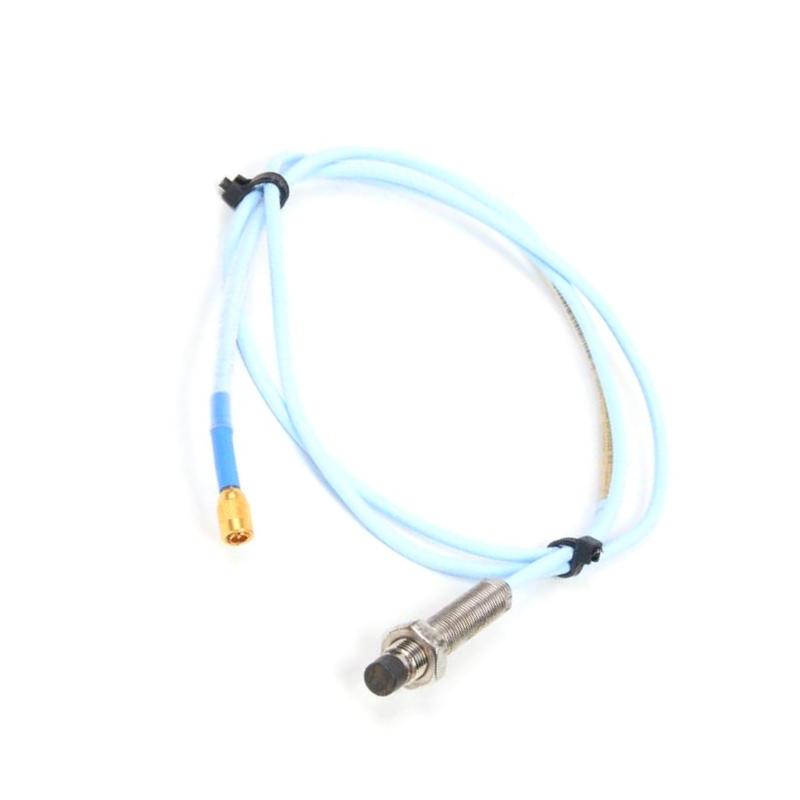

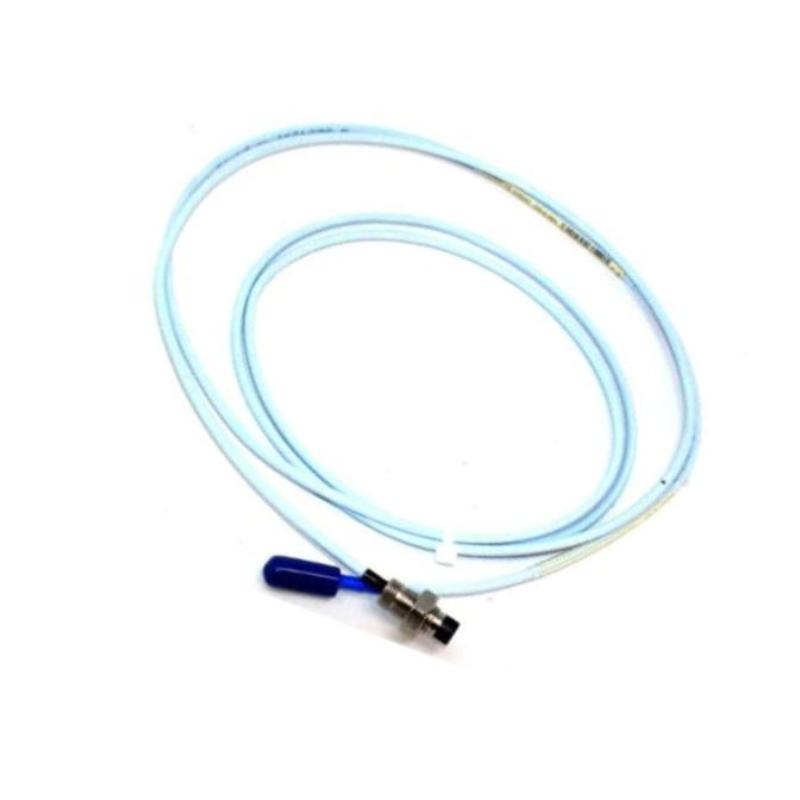

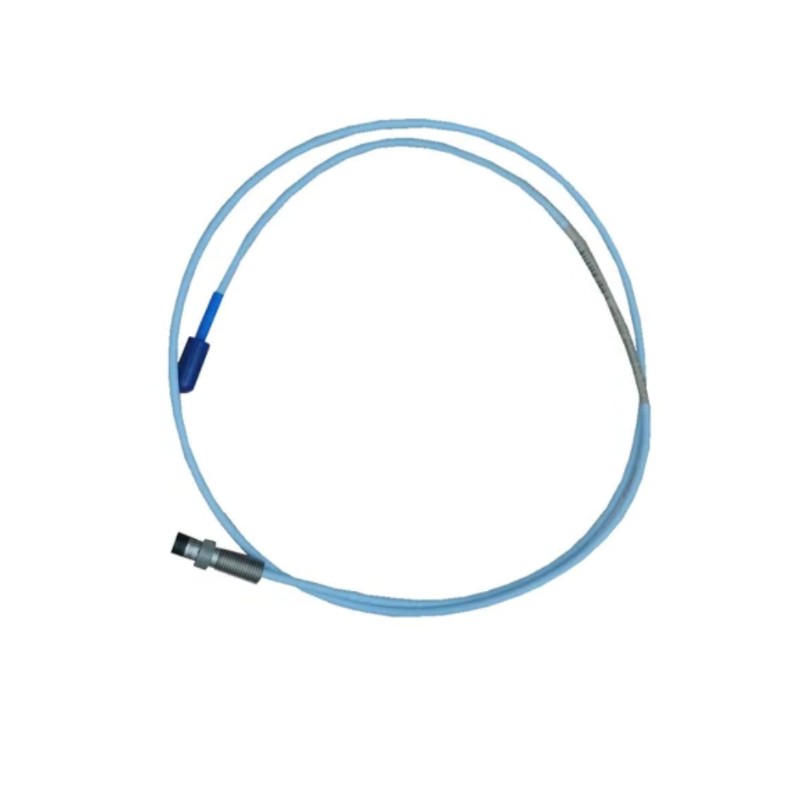

The Bently Nevada 330101-00-79-10-02-05 3300 XL 8 mm Proximity Probe is a high-reliability eddy-current sensor engineered for continuous, non-contact measurement of shaft vibration, displacement, and position in rotating machinery. As part of the industry-standard 3300 XL proximity system, it delivers stable signal performance, strong environmental tolerance, and long service life in demanding industrial applications.
This configuration (…79-10-02-05) is typically associated with a 7.9-inch class probe geometry and a 1.0-meter system cable with standard ClickLoc connector and agency-approved configuration, making it suitable for turbomachinery installations requiring extended probe reach and certified industrial deployment. It is widely used in condition monitoring systems where accuracy and long-term stability directly impact operational safety and uptime.
Built with stainless steel housing and a PPS sensing tip, the probe is designed to maintain consistent performance under high vibration, temperature variation, and harsh process environments.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-79-10-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Technology | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Overall Case Length | 7.9 in (approx.) |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Agency Approval | Country-specific approvals (05 option) |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | Approx. 0.15–0.32 kg (configuration dependent) |
Industrial Applications
The 330101-00-79-10-02-05 probe is widely used in industries where rotating machinery health directly affects production continuity, safety, and operational efficiency.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine protection systems
-
Centrifugal compressor condition monitoring
-
Industrial pump diagnostics
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil and gas refining and upstream facilities
-
Petrochemical processing plants
-
Power generation stations
-
Heavy industrial machinery systems
By continuously tracking shaft behavior, it helps detect early-stage issues such as imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance and reducing unexpected downtime.
Key Advantages
High-Accuracy Non-Contact Measurement
Eddy-current technology ensures stable, repeatable vibration and displacement readings.
Certified Industrial Configuration
The 05 option supports standardized agency compliance for regulated environments.
Extended Mechanical Reach
The 7.9-inch class geometry allows flexible installation in deeper machine housings.
Rugged Industrial Construction
Stainless steel body and PPS tip ensure resistance to corrosion and harsh operating conditions.
Predictive Maintenance Optimization
Enables early fault detection and condition-based maintenance strategies.
Seamless System Integration
Fully compatible with the 3300 XL transducer ecosystem for easy deployment.
Reliable 24/7 Operation
Designed for continuous monitoring in mission-critical environments.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What does the 3300 XL system represent?
It is a standardized eddy-current proximity measurement system for machinery protection.
Q3: What does the “79” configuration indicate?
It typically refers to a 7.9-inch class probe case length variant.
Q4: What does the “10” option represent?
It indicates a 1.0-meter system cable length.
Q5: What does the “02” option mean?
It specifies a miniature coaxial ClickLoc connector with standard cable.
Q6: What industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industry.
Q7: Does it require contact with rotating equipment?
No, it uses non-contact eddy-current sensing.
Q8: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS probe tip.
Q9: Can it operate in harsh environments?
Yes, it is designed for high temperature, vibration, and industrial exposure.
Q10: Is it interchangeable within the 3300 XL system?
Yes, it is fully compatible within the 3300 XL probe ecosystem.
