Reliable Precision Monitoring for High-Integrity Rotating Equipment

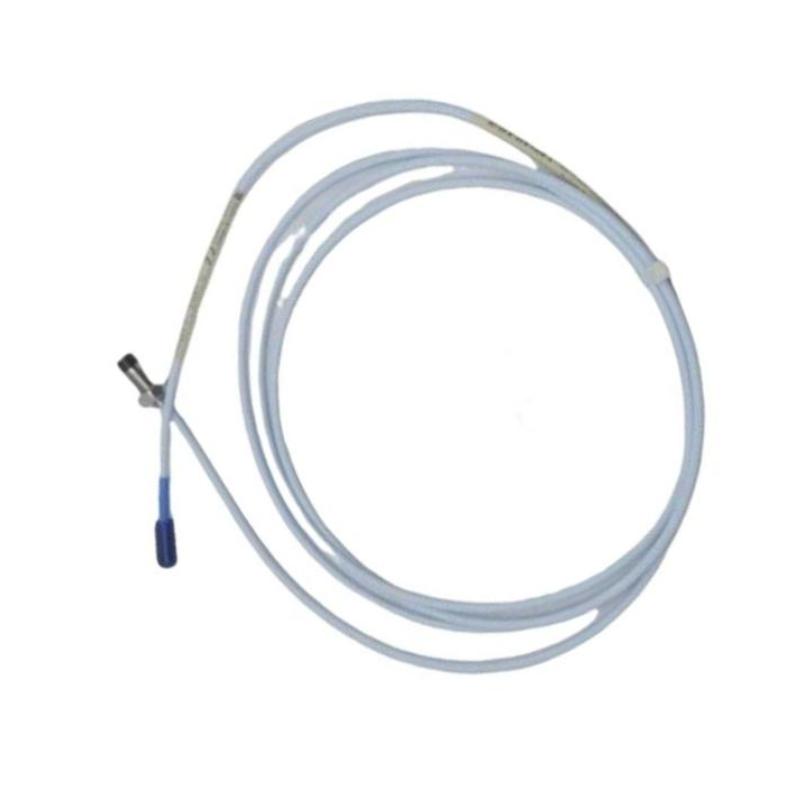

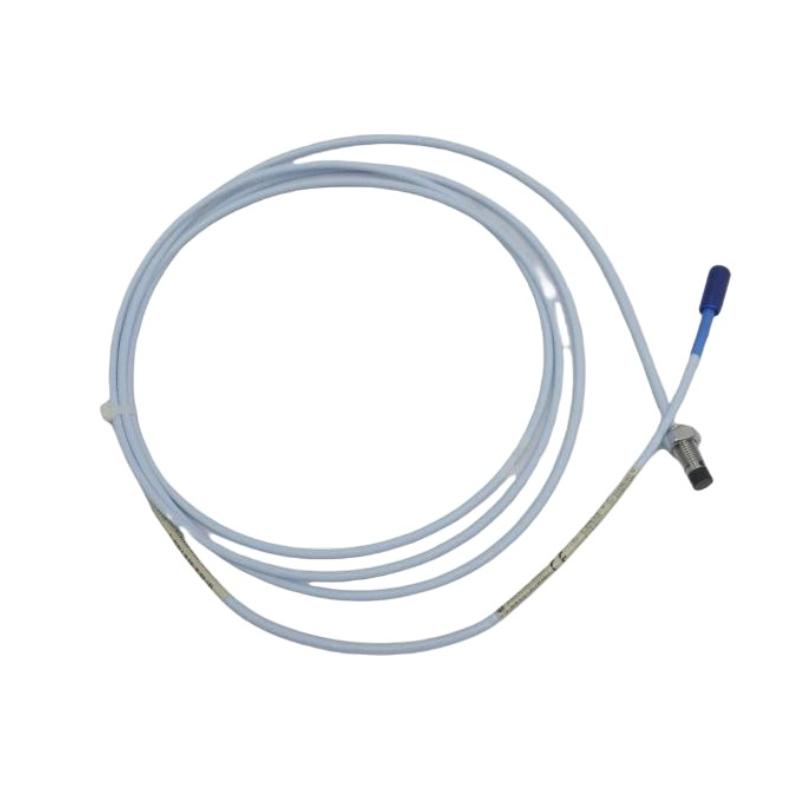

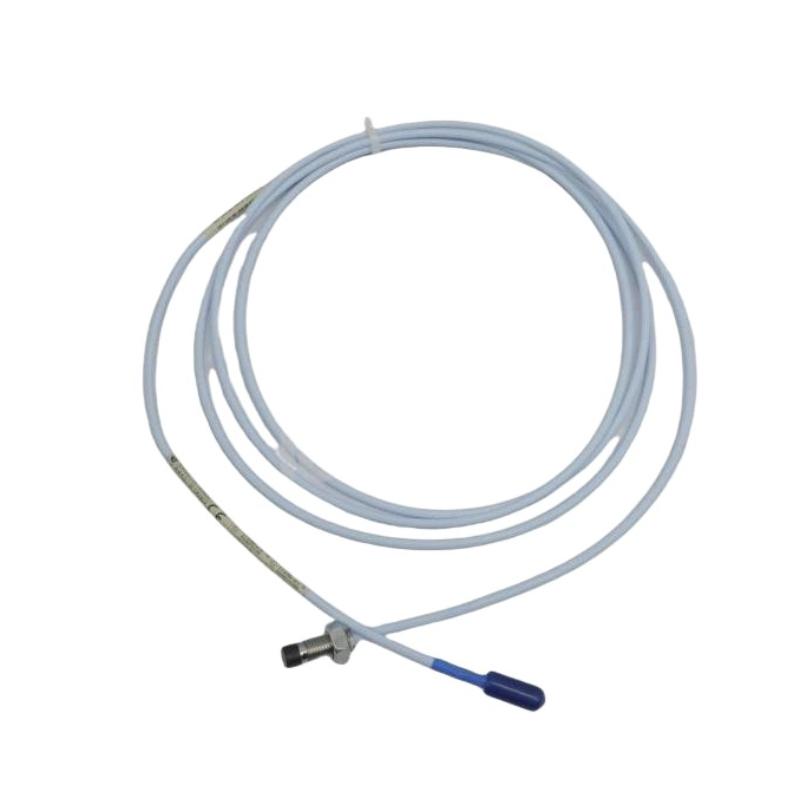

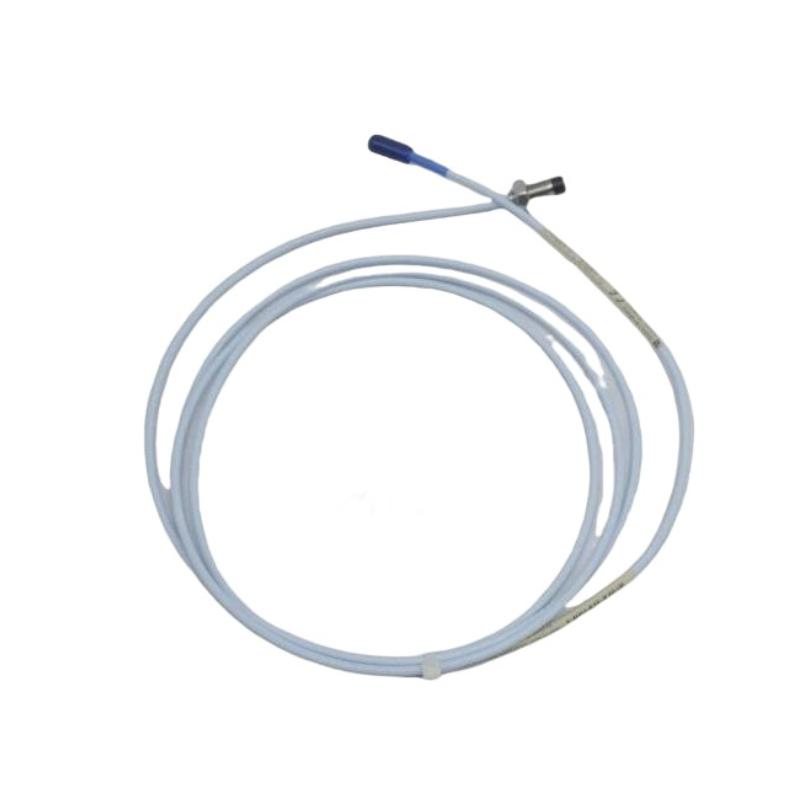

The Bently Nevada 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe is a high-performance eddy-current sensor engineered for continuous, non-contact measurement of shaft vibration, displacement, and position in critical industrial machinery. As part of the trusted 3300 XL series, it is designed to deliver stable signal output, long-term reliability, and strong resistance to harsh operating environments.
This configuration is typically associated with a 7.2-inch class probe geometry option and a 1.0-meter system cable arrangement, making it suitable for installations requiring extended mechanical reach and flexible mounting integration. It is widely used in turbomachinery protection systems where measurement stability directly impacts equipment safety and operational efficiency.
Built with stainless steel housing and a PPS sensing tip, this probe ensures durability, corrosion resistance, and consistent performance in continuous industrial operation.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-72-10-12-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| System Cable Length | 1.0 m (typical configuration) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | Up to 10 kHz |
| Operating Temperature | -52°C to +177°C |
| System Compatibility | 3300 XL Proximitor Sensor systems |
| Weight | Approx. 0.15–0.32 kg (configuration dependent) |
Industrial Applications
The 330101-00-72-10-12-05 probe is widely used in industries where rotating equipment reliability is essential for continuous production and safety assurance.
Typical applications include:
-
Steam turbine vibration monitoring systems
-
Gas turbine protection and diagnostics
-
Centrifugal compressor condition monitoring
-
Industrial pump performance analysis
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil and gas processing facilities
-
Petrochemical refining units
-
Power generation stations
-
Heavy industrial machinery systems
It enables continuous detection of mechanical issues such as imbalance, misalignment, shaft looseness, and bearing degradation—supporting predictive maintenance strategies and reducing unexpected downtime.
Key Advantages
Stable High-Accuracy Measurement
Eddy-current technology ensures reliable and repeatable vibration and displacement readings.
Extended Installation Flexibility
The 7.2-inch class geometry supports deeper or more complex mounting configurations.
Industrial Durability
Stainless steel construction ensures resistance to corrosion, vibration, and harsh environments.
Predictive Maintenance Optimization
Continuous monitoring helps detect early-stage mechanical faults before failure occurs.
Seamless System Integration
Fully compatible with the 3300 XL transducer ecosystem for simplified deployment.
Long-Term Operational Reliability
Designed for 24/7 industrial use in mission-critical applications.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What does the 3300 XL system represent?
It is an eddy-current-based proximity transducer system used for machinery protection and condition monitoring.
Q3: What does the “72” code typically refer to?
It indicates a specific probe geometry/configuration option within the ordering structure.
Q4: What is the cable length of this model?
It is commonly supplied with a 1.0-meter system cable.
Q5: Which industries use this probe most?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
Q6: Does the probe touch the rotating shaft?
No, it uses non-contact eddy-current sensing.
Q7: What material is the probe made from?
AISI 303/304 stainless steel with a PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature industrial conditions.
Q9: Is it compatible with other 3300 XL components?
Yes, it is fully interchangeable within the 3300 XL ecosystem.
Q10: What is the main benefit for maintenance teams?
It enables early detection of mechanical issues, reducing downtime and maintenance costs.
