Precision Monitoring Solution for Critical Rotating Equipment

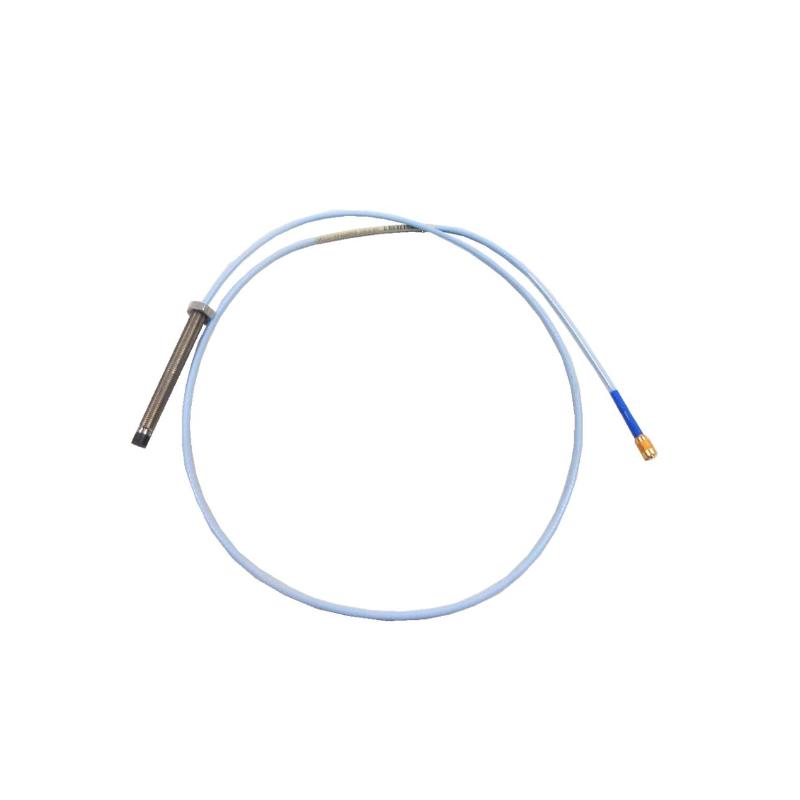

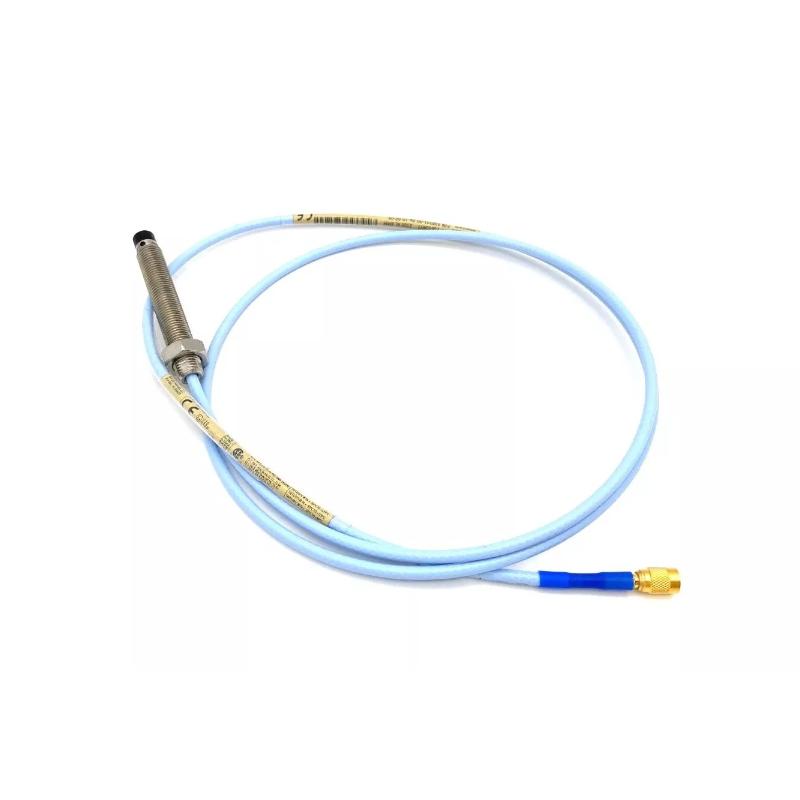

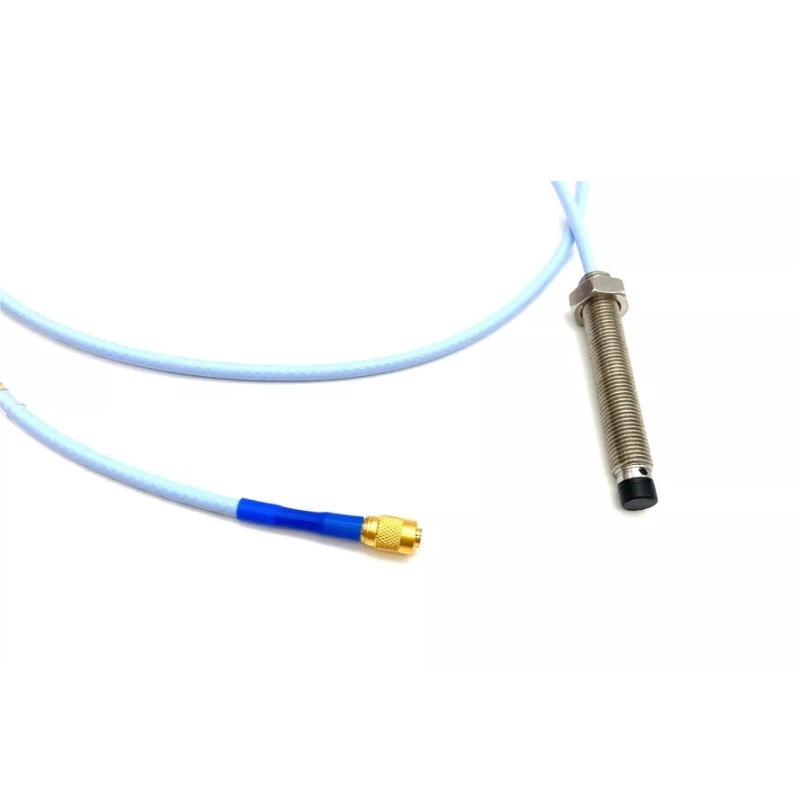

The Bently Nevada 330101-00-65-10-11-00 3300 XL 8 mm Proximity Probe is a high-reliability eddy-current sensor designed for continuous measurement of shaft vibration, radial displacement, and position in industrial rotating machinery. As part of the proven 3300 XL series, it delivers stable performance, excellent signal integrity, and long-term durability in demanding industrial environments.
This configuration (…11-00 variant) is commonly associated with a 1.0-meter system cable length and a standard configuration without additional agency-specific certification options, making it a versatile choice for general-purpose turbomachinery monitoring applications. The probe operates without physical contact, ensuring accurate measurement while eliminating mechanical wear and extending service life.
Built with stainless steel housing and a PPS sensing tip, it is engineered for harsh environments where vibration, temperature fluctuations, and contamination are common.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-65-10-11-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| System Cable Length | 1.0 m (typical configuration) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor & extension cable systems |
| Weight | Approx. 0.15–0.32 kg (configuration dependent) |
Industrial Applications
The 330101-00-65-10-11-00 probe is widely used in industries where rotating equipment reliability is essential for production continuity and safety.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine protection systems
-
Centrifugal compressor condition monitoring
-
Industrial pump diagnostics
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil and gas processing facilities
-
Petrochemical plants
-
Power generation stations
-
Heavy industrial machinery
It provides continuous real-time monitoring of shaft movement, enabling early detection of imbalance, misalignment, looseness, and bearing degradation—key factors in preventing unplanned downtime.
Key Advantages
High Measurement Stability
Eddy-current technology ensures consistent, drift-free vibration and displacement readings.
Rugged Industrial Construction
Stainless steel body and PPS tip provide resistance to harsh operating conditions.
Predictive Maintenance Support
Enables early fault detection and condition-based maintenance strategies.
System Interchangeability
Fully compatible with the 3300 XL transducer ecosystem for easy integration.
Reliable 24/7 Operation
Designed for continuous monitoring in mission-critical environments.
Cost Efficiency
Reduces downtime risk and minimizes emergency repair requirements.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What does the 3300 XL system represent?
A high-performance eddy-current proximity transducer system used for machine protection and condition monitoring.
Q3: What does the “11-00” configuration indicate?
It generally refers to a standard system configuration with a 1.0-meter cable and no special approval options.
Q4: What industries commonly use this probe?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
Q5: Does the probe contact the shaft?
No, it uses non-contact eddy-current sensing technology.
Q6: What is the probe body material?
AISI 303/304 stainless steel.
Q7: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature industrial conditions.
Q8: Is it compatible with other 3300 XL components?
Yes, it is fully interchangeable within the 3300 XL system.
Q9: What is the main benefit for maintenance teams?
It enables early detection of mechanical issues, reducing downtime and maintenance costs.
Q10: Is calibration required for each installation?
No, 3300 XL components are designed for factory calibration and interchangeability.
