Intelligent Condition Monitoring for Modern Industrial Assets

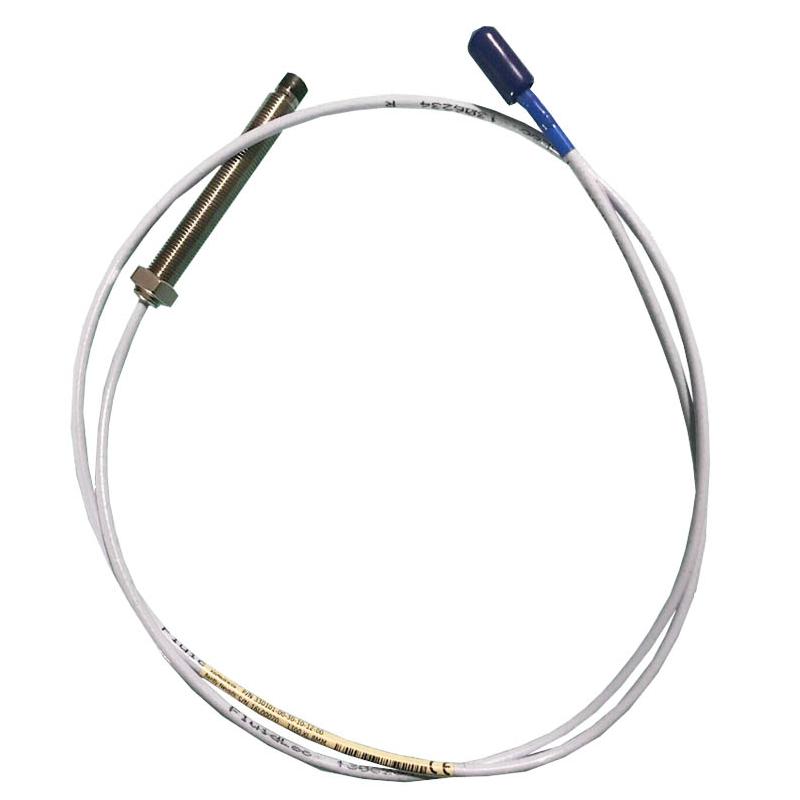

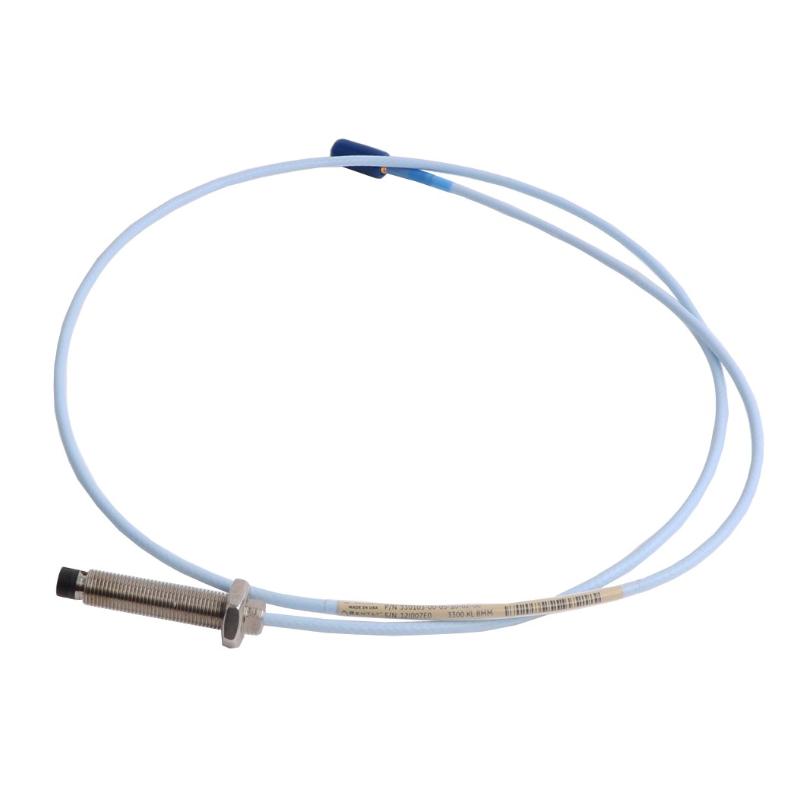

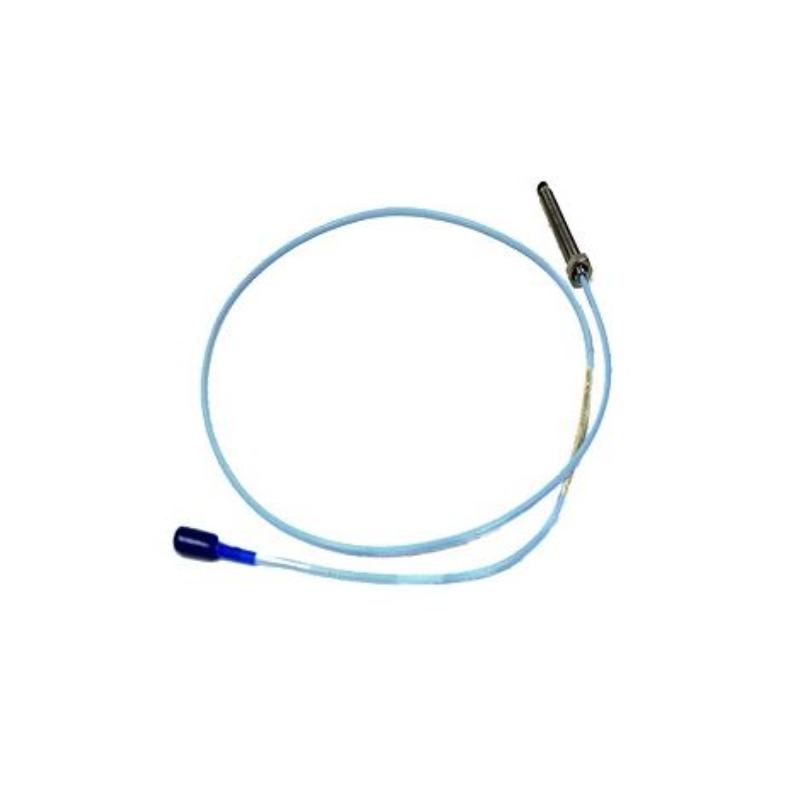

The Bently Nevada 330101-01-13-05-01-00 3300 XL 8 mm Proximity Probe is a high-precision vibration and displacement sensor designed to enhance machine reliability in demanding industrial environments. As part of the globally trusted 3300 XL platform, this probe provides continuous, non-contact monitoring of critical rotating equipment, enabling operators to detect performance abnormalities before they become costly failures.
This configuration features a 1.3-inch probe case length and a 0.5-meter cable assembly, making it particularly suitable for compact installations where space optimization and precise signal transmission are essential. Leveraging advanced eddy-current technology, the probe delivers stable, repeatable measurements for shaft vibration, radial displacement, and shaft position applications.
Its rugged construction, long service life, and excellent interchangeability within the 3300 XL ecosystem make it a dependable choice for predictive maintenance strategies across multiple industries.
Engineering Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-01-13-05-01-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL |
| Measurement Technology | Eddy Current Proximity Sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.1 in |
| Probe Case Length | 1.3 in (33 mm) |
| Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Standard Miniature Coaxial Connector |
| Cable Protection | Standard Non-Armored Cable |
| Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | Up to 10 kHz |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 33 × 8 mm (probe body) |
| Weight | Approx. 0.18 kg |
Ideal for Mission-Critical Industrial Operations
The 330101-01-13-05-01-00 probe is engineered to support machinery health management programs where continuous monitoring is essential for operational efficiency.
Typical applications include:
-
Steam turbine monitoring systems
-
Gas turbine protection equipment
-
Centrifugal compressor systems
-
Industrial pumps
-
Electric motors
-
Power generation facilities
-
Petrochemical processing plants
-
Oil and gas production systems
-
Water treatment infrastructure
-
Heavy-duty manufacturing equipment
Its real-time measurement capabilities allow maintenance teams to identify developing mechanical issues early, reducing downtime and extending equipment lifespan.
Key Benefits That Improve Equipment Reliability
Compact Installation Design
The short probe body and 0.5-meter cable make integration easier in confined machine spaces.
Accurate Vibration Detection
Advanced eddy-current sensing technology delivers precise measurement performance.
Rugged Industrial Construction
Stainless-steel housing provides excellent durability and corrosion resistance.
Improved Predictive Maintenance
Continuous monitoring supports proactive maintenance planning.
Stable Long-Term Performance
Designed for reliable operation in demanding industrial environments.
Simplified System Integration
Compatible with the broader 3300 XL transducer platform.
Reduced Operational Costs
Early fault identification helps avoid expensive emergency repairs and unplanned shutdowns.
Technical FAQs
Q1: What is the primary function of this proximity probe?
It measures shaft vibration, shaft displacement, and rotor position without physical contact.
Q2: What does the 05 configuration indicate?
It designates a 0.5-meter cable length.
Q3: Which equipment commonly uses this probe?
Turbines, compressors, pumps, generators, and large industrial motors.
Q4: Is this suitable for predictive maintenance systems?
Yes. It is specifically designed for continuous machine condition monitoring.
Q5: Does this probe require direct contact with the shaft?
No. It uses non-contact eddy-current sensing technology.
Q6: What material is used for the probe housing?
AISI 303/304 stainless steel.
Q7: Can it withstand harsh industrial environments?
Yes. It is designed to resist temperature fluctuations, vibration, and industrial contaminants.
Q8: Is this probe compatible with other 3300 XL components?
Yes. The 3300 XL series is designed for excellent system compatibility.
Q9: What industries commonly deploy this sensor?
Power generation, oil and gas, petrochemical, manufacturing, mining, and utilities.
Q10: What maintenance advantages does this product provide?
It helps reduce unexpected downtime by identifying equipment degradation at an early stage.
