Advanced Vibration Sensing Built for Demanding Industrial Environments

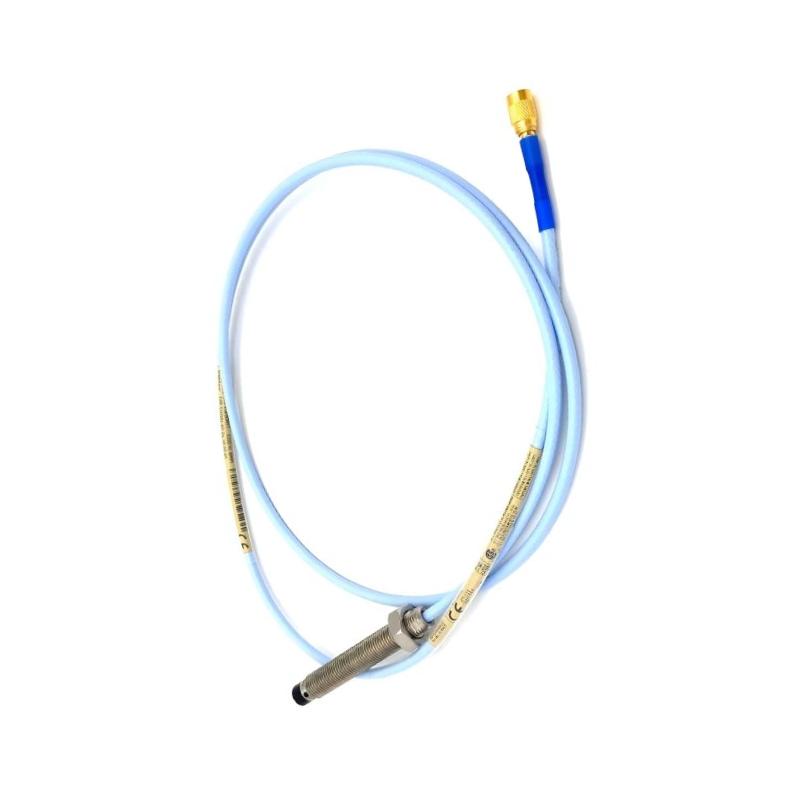

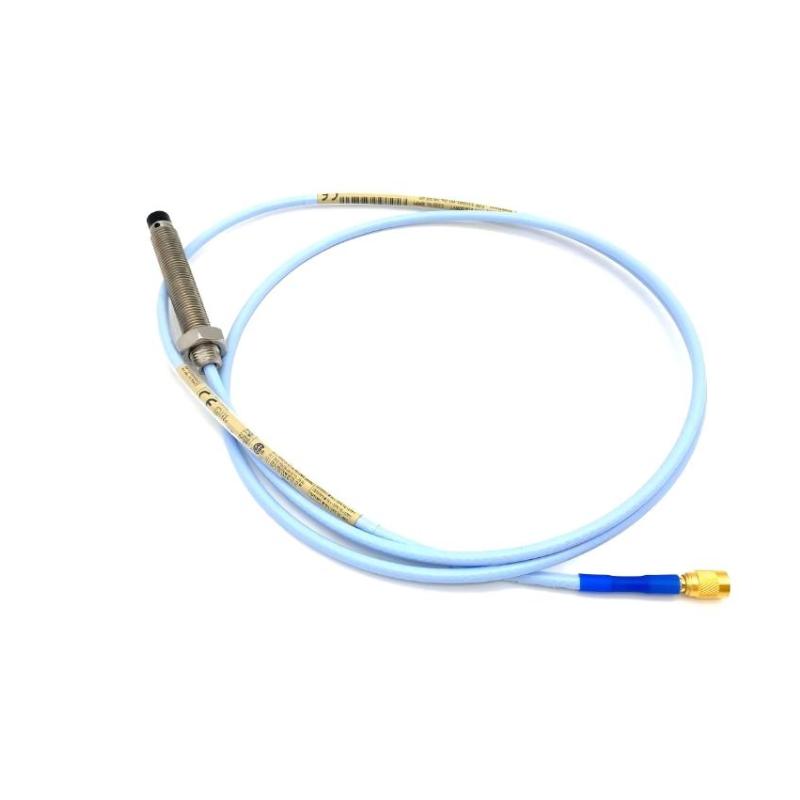

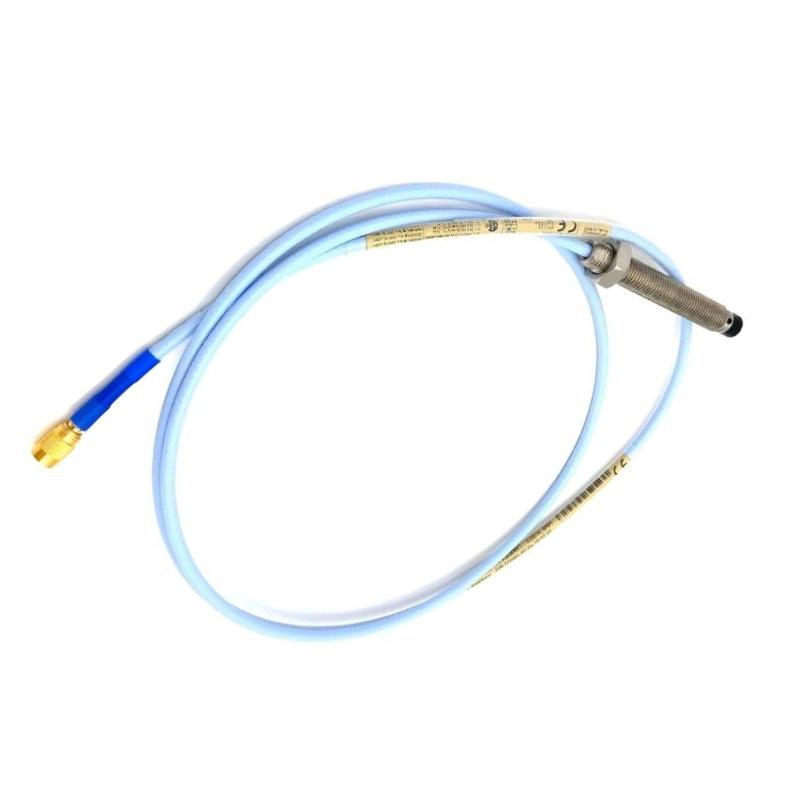

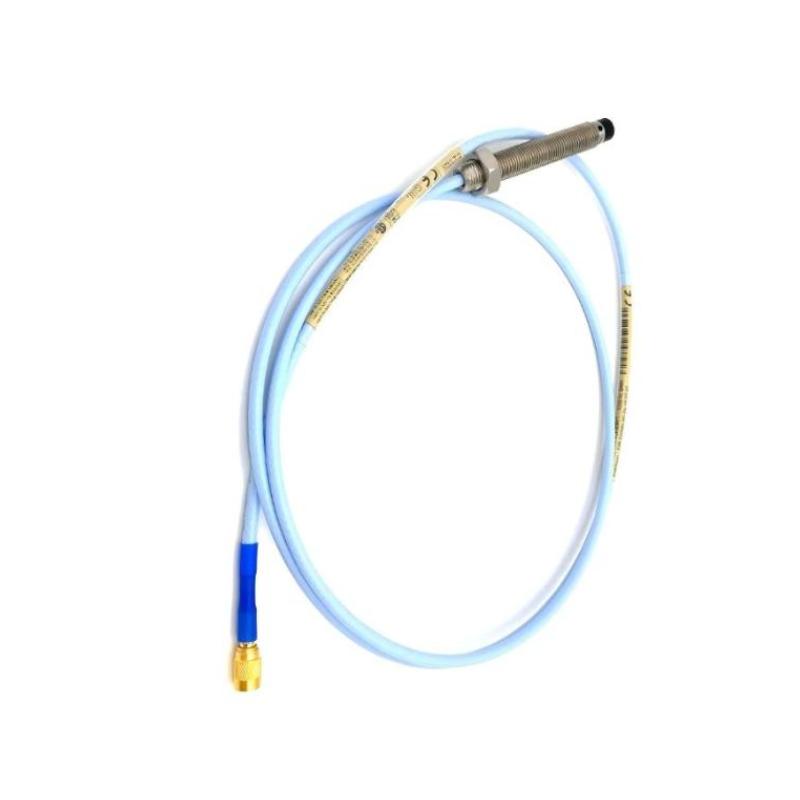

The Bently Nevada 330101-00-96-20-02-RU 3300 XL 8 mm Proximity Probe is a premium non-contact vibration monitoring solution designed to protect critical rotating assets across industrial facilities. As a member of the industry-proven 3300 XL family, this proximity probe combines high measurement accuracy, durable construction, and exceptional long-term reliability.
This configuration features a 9.6-inch probe case length, a 2-meter cable assembly, and RU country-specific certification, making it ideal for installations that require regional compliance and flexible cable routing. Utilizing advanced eddy-current technology, the sensor continuously measures shaft vibration, radial displacement, and shaft position without direct contact, helping operators detect abnormalities before machinery damage occurs.
Its rugged engineering and excellent system interchangeability make it a preferred choice for predictive maintenance programs worldwide.
Product Performance Data
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-96-20-02-RU |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL |
| Measurement Technology | Eddy Current Sensor |
| Probe Diameter | 8 mm |
| Thread Specification | 3/8-24 UNF |
| Unthreaded Length | 0 in |
| Probe Case Length | 9.6 in (243.8 mm) |
| Cable Length | 2.0 m (6.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Protection | Standard Non-Armored Cable |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Frequency Response | Up to 10 kHz |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 24.4 × 0.8 × 0.8 cm |
| Weight | Approx. 0.32 kg |
| Regional Approval | RU Country-Specific Certification |
Optimized for Critical Industrial Applications
The 330101-00-96-20-02-RU probe is specifically designed for facilities where equipment reliability directly impacts productivity, operational safety, and maintenance costs.
Typical applications include:
-
Steam turbine condition monitoring
-
Gas turbine protection systems
-
Centrifugal compressor monitoring
-
Industrial pump vibration analysis
-
Electric motor health monitoring
-
Generator protection systems
-
Petrochemical processing facilities
-
Oil and gas production plants
-
Power generation stations
-
Heavy manufacturing industries
By continuously collecting shaft movement data, maintenance engineers can identify early-stage faults, optimize service schedules, and significantly reduce unplanned downtime.
Core Advantages That Deliver Long-Term Value
Superior Measurement Stability
High-precision eddy-current sensing ensures dependable data collection under demanding operating conditions.
Flexible Installation Design
The 2-meter cable configuration simplifies integration into larger machinery systems.
Durable Industrial Construction
Corrosion-resistant stainless-steel housing extends product lifespan.
Secure ClickLoc Connectivity
The connector design enhances installation efficiency while maintaining signal integrity.
Supports Predictive Maintenance Strategies
Early fault detection reduces expensive emergency repairs.
Excellent Environmental Resistance
Engineered to perform reliably under temperature fluctuations, oil exposure, and vibration-intensive environments.
Trusted Global Performance
Technical FAQs
Q1: What is the main purpose of this proximity probe?
It continuously measures shaft vibration, displacement, and rotor position without contacting moving parts.
Q2: What does the "RU" designation mean?
It indicates a regional certification configuration intended for specific market requirements.
Q3: What is the cable length of this model?
This configuration includes a 2-meter (6.6 ft) cable.
Q4: Which industries commonly use this sensor?
Power generation, oil and gas, petrochemical, manufacturing, and heavy industrial sectors.
Q5: Is this suitable for predictive maintenance systems?
Yes. It is specifically designed to support condition-based and predictive maintenance programs.
Q6: What type of connector does it use?
It uses a miniature coaxial ClickLoc connector.
Q7: Can the probe withstand harsh environments?
Yes. It is built to tolerate industrial vibration, oil exposure, and extreme temperature variations.
Q8: Does the probe physically contact the shaft?
No. It operates entirely through non-contact eddy-current sensing technology.
Q9: What material is used in the probe construction?
The housing uses AISI 303/304 stainless steel, while the probe tip uses PPS material.
Q10: Is it compatible with other 3300 XL components?
Yes. It is designed for seamless integration within the complete 3300 XL transducer system.
